Akuvox C317 Quick Manual
Hide thumbs Also See for C317:

Advertisement

Quick Links

Screw fixing seat x 4
M3x6 screw x 1
10 Pin cable x 1
C317 x 1

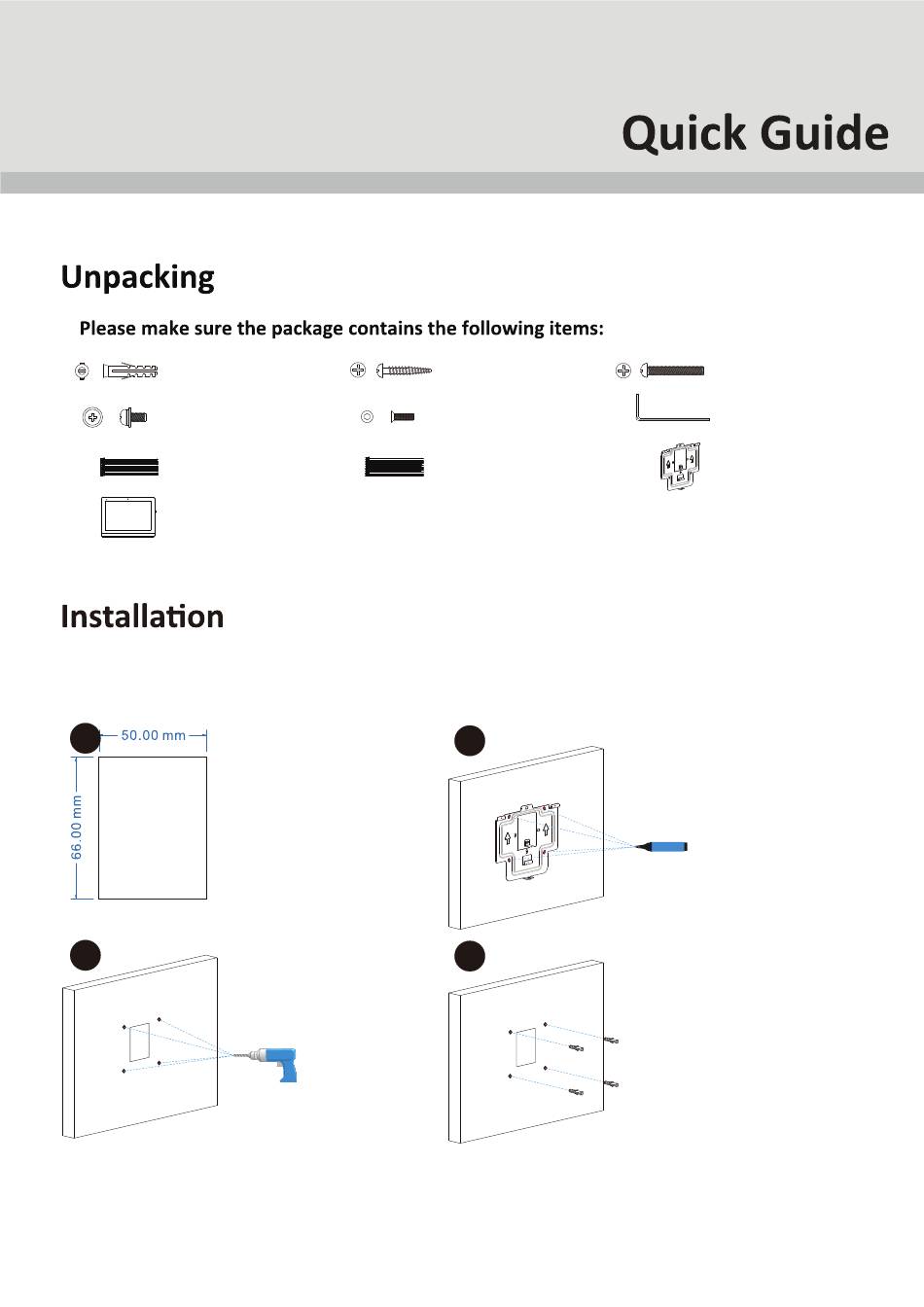

Step 1: Wall Bracket Installa�on
Without embedded box in the wall
1
According to the position
of the cable in the wall,
dig out a square
hole(height*width*depth
=66*50*50mm) that can
accommodate all cables.
Take down the bracket,
3
then using a 5mm hand
drill to make the four
fixation holes on the wall
which marked before.
ST4x20 screw x 4
M3x10.5 screw x 1
11 Pin cable x 1
2
4
C317
M4x30 screw x 4
Allen Wrench x 1
Wall bracket x 1
Align the square hole of
the wall bracket with the
hole digged out before,
then mark the four
fixation holes through
bracket on the wall.
Once the fixation holes
were made, insert screw
fixing seats provided.

Advertisement

loading
Need help?

Need help?

Do you have a question about the C317 and is the answer not in the manual?

Questions and answers

Summary of Contents for Akuvox C317

  • Page 1 Allen Wrench x 1 10 Pin cable x 1 11 Pin cable x 1 Wall bracket x 1 C317 x 1 Step 1: Wall Bracket Installa�on Without embedded box in the wall According to the position Align the square hole of...
  • Page 2 C317 Twist M3x10.5 screw into the bottom hole of the bracket until the tail of which align to the edge. Then fix the wall bracket on the wall with four ST4x20 screws. If there is a earth wire to be connected, use M3x6 screw to fix it on the wall bracket.
  • Page 3 C317 Configura�on 1.Access basic information: After setting up network and power, enter More -> System Info to check Account, Network,Version status. 2.Access the Website: Launch a browser and type in the IP address then enter the username and password to login.(username/password: admin /admin by default) 3.Account Registration: On web UI, go to the path: Account ->...
  • Page 4 C317 Product Overview Camera (Optional) Micro SD slot Touch Screen Front Panel Right Side 11 Pin Terminals 10 Pin Terminals Network Interface(POE) RJ45 Interface Loudspeaker Loudspeaker Rear Panel...
