C313 Series Indoor Monitor User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C313 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox C313 Series

Summary of Contents for Akuvox C313 Series

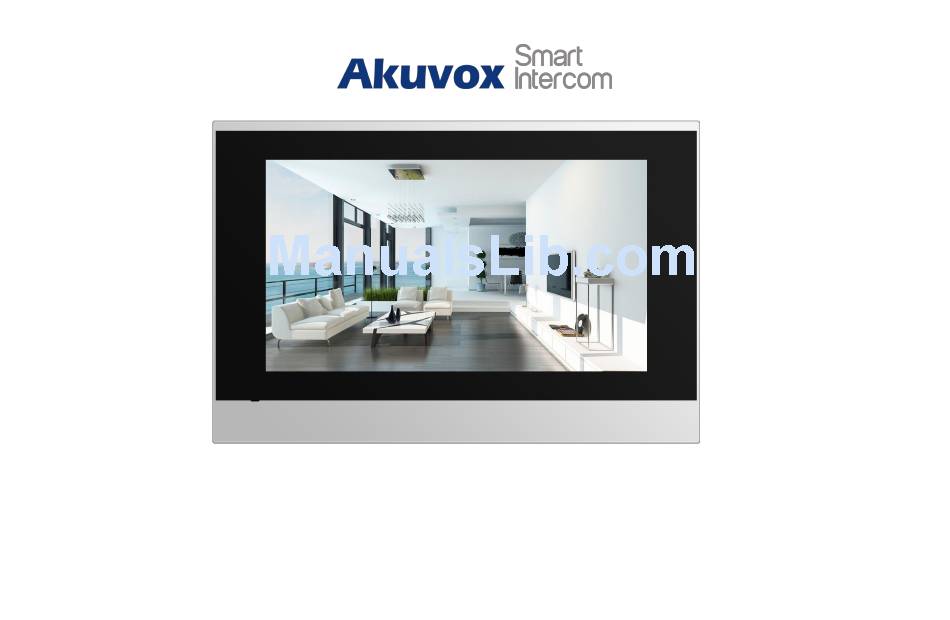

  • Page 1 C313 Series Indoor Monitor User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s C313 Series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. It provides an overview of the most essential functions and features of the product, whose firmware version is 113.241.4.4.

  • Page 3: Table Of Contents

    Content 1. Product overview....................................... 1 1.1. Product Description....................................1 1.2. Power connection...................................... 2 2. Daily use..........................................3 2.1. Making a call.......................................3 2.1.1. Calling from digital keypad................................3 2.1.2. Calling from phonebook..................................4 2.1.3. Calling resident....................................4 2.1.4. Calling from call log..................................5 2.1.5.
  • Page 4 2.4.1. Basic Status....................................10 2.4.2. Network Status....................................11 2.4.3. Account Status....................................11 2.5. Live view........................................12 2.5.1. Door Phone....................................12 2.5.2. Web Camera....................................13 2.5.3. Onvif........................................ 13 2.6. Message(s)....................................... 14 2.6.1. Text Message....................................14 2.6.2. Create message.................................... 15 2.6.3. Maintenance....................................15 2.6.4. Capture Log....................................16 2.7.
  • Page 5 3.3. Time settings......................................22 3.4. DND(Do Not Disturb) Settings................................23 3.5. Language........................................24 3.6. Album.........................................24 3.7. Reboot........................................25 3.8. Screen clean......................................25...

  • Page 6: Product Overview

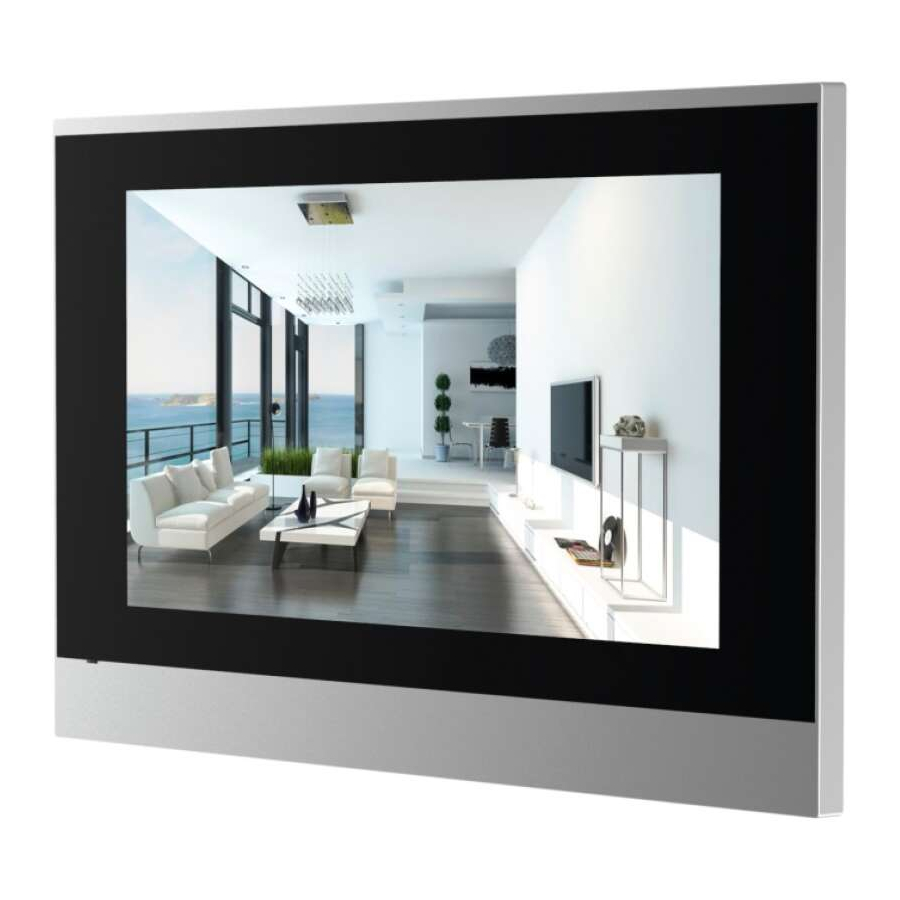

    1. Product overview 1.1. Product Description C313X is a Linux-based IP indoor monitor with a touch screen. It incorporates audio communications, access control sensor arming and obtain video stream from door phone or IPC. Its finely-tuned Linux OS allows for better suit the habit of usage of local people.

  • Page 7: Power Connection

    1.2. Power connection The C313X is powered by simply connecting the two wires of the power adapter to the wiring interface on the back of the indoor monitor. C313X also support POE(Power Over Ethernet). 11 PIN connector For power supply , RS485, Bell and Relay connector. 10 PIN connector For 8 security connector Network port with POE(Power over Ethernet),can be...

  • Page 8: Daily Use

    2. Daily use 2.1. Making a call There are two ways to make a call from the indoor monitor to other units, which can be another indoor monitor or an intercom app. 2.1.1. Calling from digital keypad ①Tap the icon to enter the call interface. ②Enter the number to call on the digital keypad, ③Choose a account for this outgoing call.

  • Page 9: Calling From Phonebook

    2.1.2. Calling from phonebook ⑤Tap the icon to enter the phonebook. ⑥Or tap this icon to enter the phonebook. ⑦After choosing group,to search the list by number or alphabet. C313X supports fuzzy matching query. ⑧Scroll up or down the pre-imported contact list. ⑨Tap the dial key next to the contact found.

  • Page 10: Calling From Call Log

    2.1.4. Calling from call log ④Press the icon to enter the call log interface. ⑤You can also choose the icon in intercom interface to check call log.⑥Choose a log. ⑦Choose audio or video call to dial out. ⑧Press the icon to delete the selected call log. ⑨Press the icon to delete all of the call log.

  • Page 11: Calling Doorphone

    2.1.5. Calling doorphone ①Press to make a call out, if you want to call doorphone unit. 2.2. Receiving a call 2.2.1. Receive a incoming call ①There will be a video preview in this window, when you receive a incoming call. ②Press this icon to pick up the incoming call as an audio call.

  • Page 12: Contact

    ②Press the icon to delete the groups you want to delete. ③Press the icon to modify the corresponding group. Notes: For cloud contact, it needs C313X to work with Akuvox cloud server. Then cloud server will assign contacts automatically. For more information, please contact with your administrator.

  • Page 13: Add A Group

    2.3.1.1. Add a group Enter the phone book interface, you can ①press the icon to add a group. ②Type in the group name. ③Choose a ring tone for this group. ④Press this icon to save the group. ⑤Press the icon to cancel the operations. 2.3.1.2.

  • Page 14: Add A Contact

    2.3.1.3. Add a contact ①Select a group, to check the contacts in this group. ②Press the icon to add a contact. ③Type in the contact name. ④Type in the number 1, it must be a room number. ⑤Type in the number 2, it can be a SIP number or IP number. ⑥Select a specific ring tone for this contact.

  • Page 15: Status

    2.4. Status 2.4.1. Basic Status To check C313X's status by ①pressing this icon. After entering the status interface, it shows the basic status as default. You can check the Model, Hardware version, Firmware version, Mac Address and IP Address information and so on.

  • Page 16: Network Status

    2.4.2. Network Status ② Press the icon to check the network status.You can check the LAN type, LAN IP, subnet mask, gateway and DNS here. 2.4.3. Account Status ③ Press the icon to check the account status.You can check the account number and status here, registered means it works normally.

  • Page 17: Live View

    2.5. Live view ①Press the icon to receive the video from indoor IPC or community IPC any time. 2.5.1. Door Phone ②By entering the monitor interface, it is door phone list by default.You can receive video from predefined doorphone station which you set under the path"Setting-Advance- Door Station".

  • Page 18: Web Camera

    2.5.2. Web Camera ③Press the icon to enter the web camera list. ④Press this icon to modify information for corresponding IPC. ⑤Click one of webcams, you can check its video stream. ⑥Press this icon to add a new webcam. You need to setup its rtsp URL, name, and authentication information.

  • Page 19: Message(S)

    2.6. Message(s) ① Press the icon to enter the message interface. There will be a notification here if there is any unread message.Or ②press this icon to enter the message interface. 2.6.1. Text Message By entering the message interface, it is text message list. You can check the message you received or what you sent here.

  • Page 20: Create Message

    2.6.2. Create message ①Press this icon to create a new message. ②This option is to set the destination. If you want to call community 1, building 1, unit 1, floor1, room 1, you need to enter 1.1.1.1.1. ③This option is to type in your message context. ④Press the icon to send the message to the predefined destination.

  • Page 21: Capture Log

    2.6.4. Capture Log ③Press this icon to enter capture log list. ④Press this icon to delete capture logs. ⑤Choose a log to check the capture. ⑥Press left/right key to check the previous/next capture. ⑦Press this icon to back to capture log list.

  • Page 22: Arming

    2.7. Arming ①Press the icon to enter the Arming interface. ②C313X supports 4 mode, they are indoor mode, sleeping mode, outdoor mode and disarm mode. 2.7.1. Arming Mode ③Press this icon to enter the arming mode settings interface. ④You can see all of the 8 zones and corresponding sensor types (slide down to check more information) in this interface.

  • Page 23: Disarm Code

    under the selected mode. ⑧Press save icon to save the modification. 2.7.2. Disarm Code ①Press this icon to enter the disarm code settings interface. You can modify the disarm code here. ②Enter the old disarm code first, it is 0000 as default. ③Enter the new disarm code ④Enter the new disarm code again for confirming.

  • Page 24: Alarm Log

    2.7.3. Alarm Log ①Press this icon to enter the alarm log interface.You can see the alarm log here including location, zone, zone type and alarm time. ②Press this icon to delete the selected alarm log. ③Press this icon to delete all alarm log. 2.7.4.

  • Page 25: Settings

    3. Settings ①Press the icon to enter the basic settings interface. 3.1. Display settings ②Press this icon to enter display settings interface. ③ To adjust the brightness here, it is 5 level as default. There are 10 levels totally, the bigger value means the lighter screen. ④To select whether to enable the screen saver.

  • Page 26: Sound Settings

    3.2. Sound settings ①Press this icon to enter the sound settings interface. ②You can set Ring Tones for incoming call, even to set a special Ring Tone for door unit, or set the Ring Volume, Talk Volume and MIC Volume. You can also choose whether to enable the Touch Sounds here.

  • Page 27: Time Settings

    3.3. Time settings ①By pressing this icon to enter the time settings interface. ② NTP(Network Time Protocol) is enabled as default. C313X will get the Date and Time automatically. And users can also setup NTP server. Setup a suitable Time Zone, Time format and Date Format. ③To set time manually by disabling the NTP, users can set exact time for the C313X.

  • Page 28: Dnd(Do Not Disturb) Settings

    3.4. DND(Do Not Disturb) Settings This function is used to prevent the phone from disturbing. Go to Setting-DND. if open DND, external phone call is unable to call in, turned off by default. ①By pressing this icon to enter the DND settings interface. ②Enable/Disable DND function.

  • Page 29: Language

    3.5. Language ①Press this icon to enter language setting interface. ② To select a suitable language. It only supports English on this firmware. ③Press this icon to go back to settings interface. 3.6. Album ④Press this icon to enter album interface. ⑤Press these 2 icon to check previous/next picture.

  • Page 30: Reboot

    3.7. Reboot ① Press the icon to reboot C313X, click Confirm when you see the prompt. The phone will reboot. 3.8. Screen clean ②Press the icon to clean the C313X's screen, it will keep you from misusing for 30 seconds.
