  • Page 2 C313 Series Indoor Monitor User Manual...
  • Page 3 About This Manual Thank you for choosing Akuvox’s C313 series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. This manual provides an introduction of basic functions and features of the product. It is suitable for 113.31.4.1xx version.

  • Page 4: Table Of Contents

    Content 1. Product Overview ................................... 1 1.1. Product Description ................................. 1 1.2. Connector Introduction ................................2 2. Daily Use ......................................3 2.1. Starting ....................................3 2.2. Making a Call ..................................5 2.2.1. Calling from Call List ..............................5 2.2.2. Calling from All Call ................................ 6 2.2.3.
  • Page 5 2.4.1. Checking the Monitor ..............................10 2.5. Message ....................................11 2.5.1. Text Message ................................12 2.5.1.1. Creating a Text Message ............................ 13 2.5.1.2. Deleting a Text Message ............................ 14 2.5.2. Audio Message ................................14 2.5.2.1. Creating an Audio Message ..........................16 2.5.2.2.

  • Page 7: Product Overview

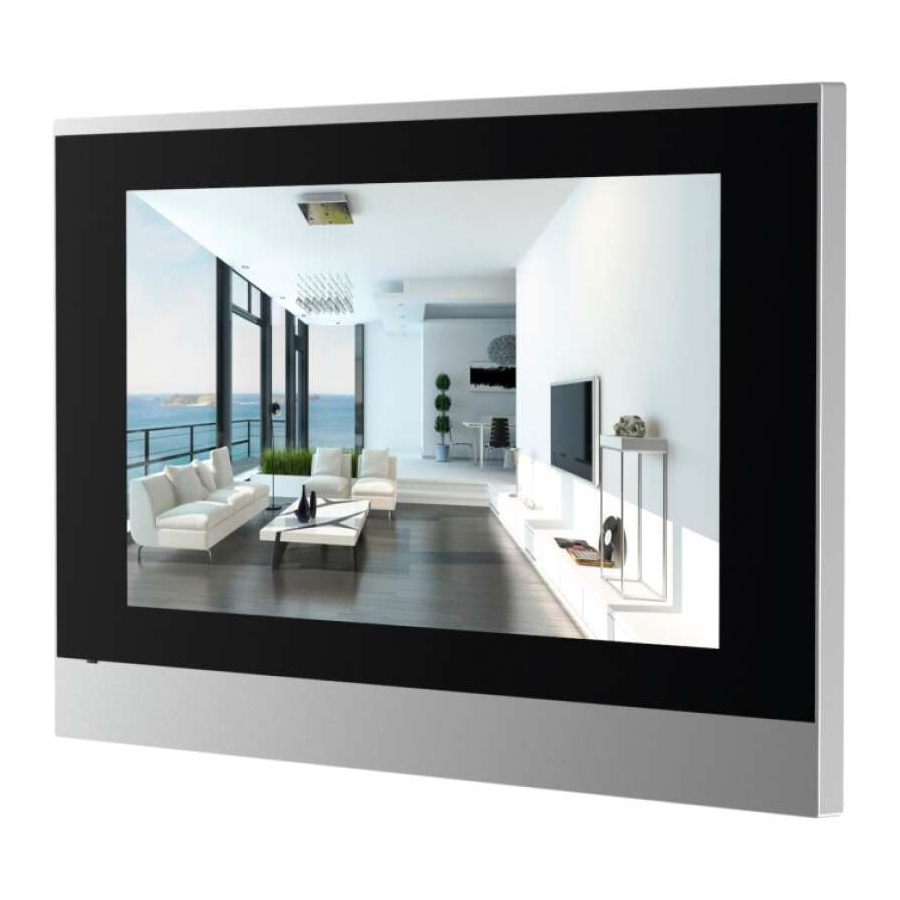

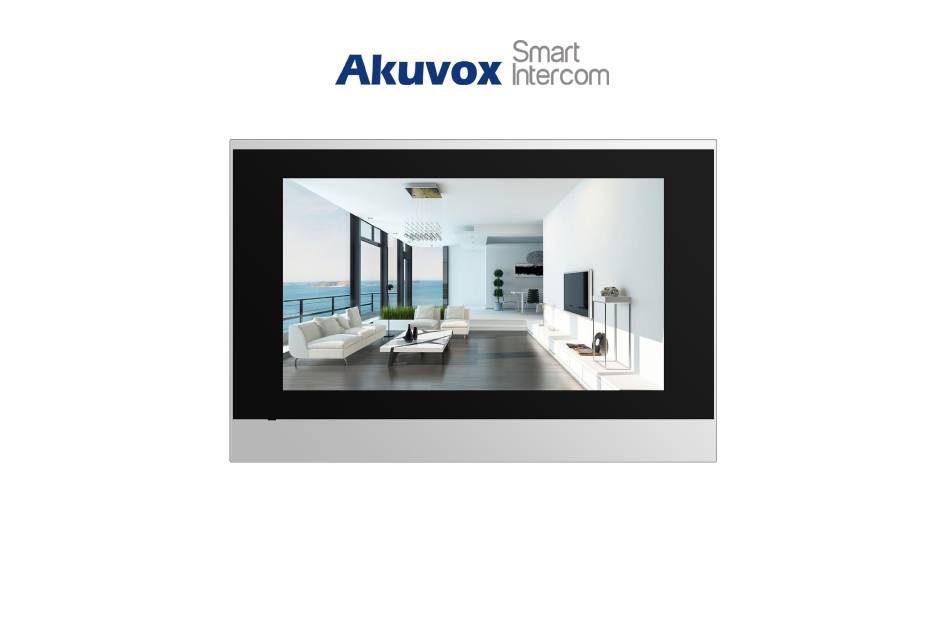

    1. Product Overview 1.1. Product Description C313X is a Linux SIP-based with smooth touch-screen indoor monitor. It can be connected with Akuvox door phone for audio/video communication, unlocking and monitoring. Residents can communicate with visitors via audio/video call, and it supports to unlock the door remotely.

  • Page 8: Connector Introduction

    C313X 1.2. Connector Introduction POE: POE connector which it can provide both power and network connection. RJ45 (PON): Share the network access from POE port, and for PC and other equipments connection. 12V/GND: External power supply terminal if POE is not available. Figure 1.2-1 C313X interface RS485+/-: RS485 terminal.

  • Page 9: Daily Use

    Discovery mode is default mode if users don’t choose any device mode. Discovery mode: It is a plug and play configuration mode. Akuvox devices will configure themselves automatically when users power on the devices and connect them to network. It is super time-saving mode and it will greatly bring users convenience by reducing Figure 2.1-2 Device mode selection...
  • Page 10 This mode do not need to be done any configurations previously by the administrator. Cloud mode: Akuvox Cloud is an all in one management system. Akuvox Cloud is the mobile service that allows audio, video, remote access control between smart phones and Akuvox intercoms. All configurations in the device will be issued automatically from cloud.

  • Page 11: Making A Call

    C313X 2.2. Making a Call There are 6 ways to establish VOIP calls by C313X. 2.2.1. Calling from Call List In the home page, choose a number from Call List to make a call.  Scroll up or down the Call List to choose the contact that users Figure 2.2.1 Call from call list want to call.

  • Page 12: Calling From All Call

    C313X 2.2.2. Calling from All Call In the home page, it could call multiple indoor monitors if they are set under the same multicast address. During the session, C313X is listened by other indoor monitors. Tap All Call icon to call other indoor monitors which are set in ...

  • Page 13: Calling From Device

    C313X  Choose the contact on the call list ② which users want to call out. Choose Audio ③ or Video ④ mode to call out.  2.2.4. Calling from Device It will display the devices connected with C313X on the contact interface.

  • Page 14: Calling From Local Contacts

    C313X 2.2.5. Calling from Local Contacts On the device, go to More - Contact to enter the Local Contacts  C313X supports fuzzy matching query ①.To search the list by interface to make a call. entering number or alphabet.  Scroll up or down to select contact ② that users want to call. Choose Audio Call ③...

  • Page 15: Receiving A Call

    C313X Choose Audio ④ or Video mode to call out.  ⑤ 2.3. Receiving a Call 2.3.1. Receive an Incoming Call C313X supports to preview the caller when it receives an incoming call from door phone.  Tap Answer to pick up the incoming call. Figure 2.3.1 Incoming call ...

  • Page 16: Monitor

    C313X  Tap Cancel to hang up the current call.  Tap New to hold the current call and make a new call.  Tap Hold to hold the current call. The call can be resumed or canceled later.  Tap Mute to eliminate the voice on C313X’s side. 2.4.
  • Page 17 C313X 2.5. Figure 2.4.1-2 Live view video...

  • Page 18: Message

    C313X Message Message ① indicates how many messages are unread (Two unread messages for an example). Or directly enter the message interface to manage. 2.5.1. Text Message  Tap Message ① on the main interface to view the unread Figure 2.5 Message messages.

  • Page 19: Creating A Text Message

    C313X 2.5.1.1. Creating a Text Message  Press New key ① to create a new text message.  Enter the destination number manually ② or select the device quickly from the below list ③ .  Input the message content which users want to send ④. ...

  • Page 20: Deleting A Text Message

    C313X 2.5.1.2. Deleting a Text Message  Press Clear ① and select text message ② first.  Click Select All ③ to select all message in the message lists.  Click Delete ④ to delete the messages have been selected. ...

  • Page 21: Audio Message

    C313X Audio Message  Tap the Family MSG ① to view the audio messages from family members who record in C313X directly in details. Figure 2.5.2 Audio Message...

  • Page 22: Creating An Audio Message

    C313X 2.5.2.1. Creating an Audio Message  Press New key ② to create a new audio message.  Press Record key ③ which family members want to remind users.  Press Test key ④ to check the audio message is complete, and Volume key ⑤...

  • Page 23: Deleting An Audio Message

    C313X 2.5.2.2. Deleting an Audio Message  Press Clear ① and select audio message ② first.  Click Select All ③ to select all message in the message lists.  Click Delete ④ to delete the messages have been selected. ...

  • Page 24: Arming

    C313X 2.6. Arming Tap Arming to enter the “Arming” interface. Arming feature is not displayed by default. Users could choose to display “Arming” on the home /more page, please refer to chapter 3.4.12 about the feature display setting. C313X supports 4 modes, including Home mode, Night mode, Away mode and Disarmed mode.

  • Page 25: Disarm Password

    C313X time to get activated.  To setup the Alarm delay. It means when the sensor triggered, there will be 90 seconds delay time to announce the notification.  The Status in the corresponding zone means whether the zone is available or not. ...

  • Page 26: Alarm Log

    C313X  Enter the original password first, and it is 0000 by default.  Enter the new password.  Enter the confirm password for confirming. Press Save key to save the modification.  On the web portal, users can go to Arming - Disarm Code to configure.

  • Page 27: Status

    C313X 2.6.4. Status On the device, go to Arming - Status to enter the zone status interface. Users can check the status of zones, including “location,” “zone type,” “trigger mode” and “status.” Figure 2.6.4 Zone status...
  • Page 28 C313X Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
  • Page 29 C313X PCAP: Packet Capture SIP: Session Initiation Protocol SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
  • Page 30 C313X Contact us...
  • Page 31 C313X For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
