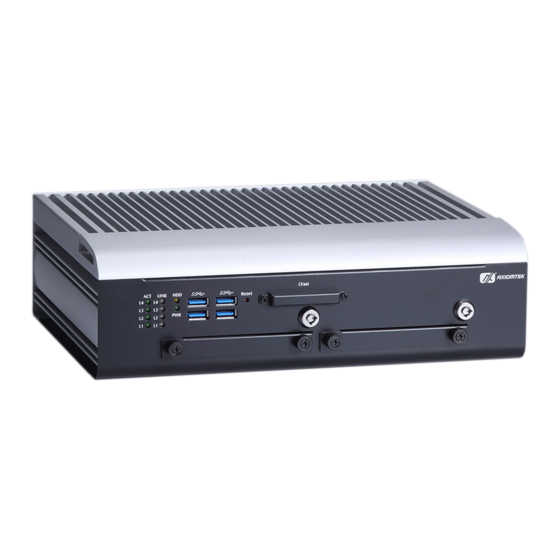

AXIOMTEK tBOX324-894 Quick Installation Manual

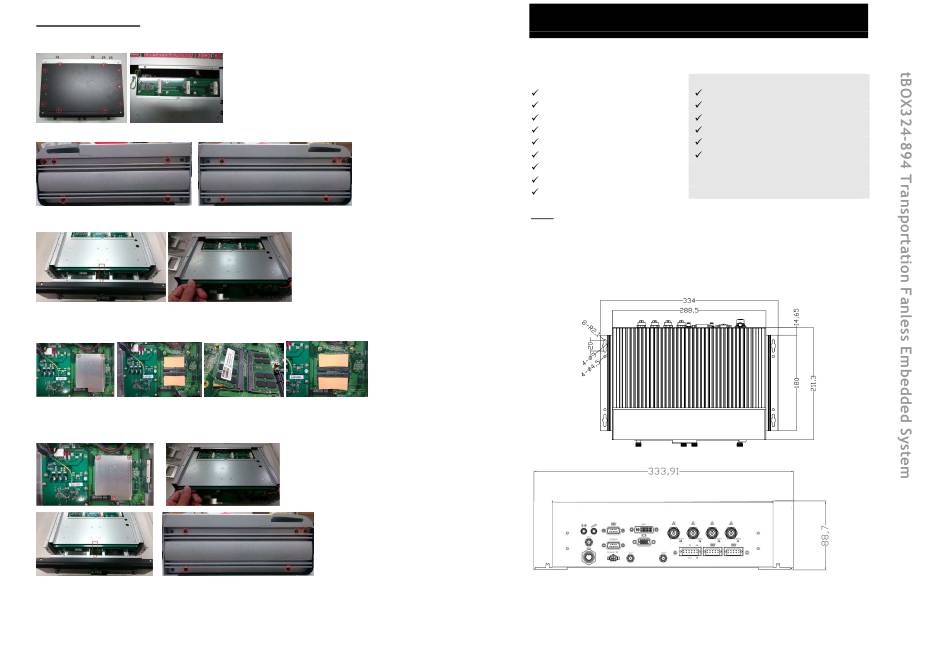

DRAM Installation

Step 1 Make sure system power is off. Loosen the lateral cover
screws to remove the cover as shown.
Step 2 Loosen the lateral screws as shown.
Step 3 Pull out the front bezel and the internal bracket as shown.
Step 4 Remove the DRAM cover by loosening the screws. Install
DRAM and then stick the thermal pad on it.
Step 5 Secure the DRAM cover by fastening the screws, and then
install the internal bracket and the front bezel. Fasten the
lateral screws as shown to complete the installation.
4 9416N324010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A2 December 2017
Printed in Taiwan
tBOX324-894 Quick Installation Guide

Checklist

Standard Accessories Optional Accessories
tBOX324-894 System Unit x 1 SATA Drive (HDD or SSD)
Quick Installation Guide x 1 PCI Express Mini Card
CD x 1 (w/ Driver & Manual) Remote Switch Cable
Foot Pad x 4 M12 LAN Cable
Screws Pack x 1 Wireless Module
Wall Mount Bracket x 1 M12 Power Cable
SATA Drive Key x 2
DRAM Thermal Pad x 4
DC-IN Connector
Note: Please contact your local supplier immediately if any of the above-
mentioned items is missing or damaged.

Dimensions

tBOX324-894
