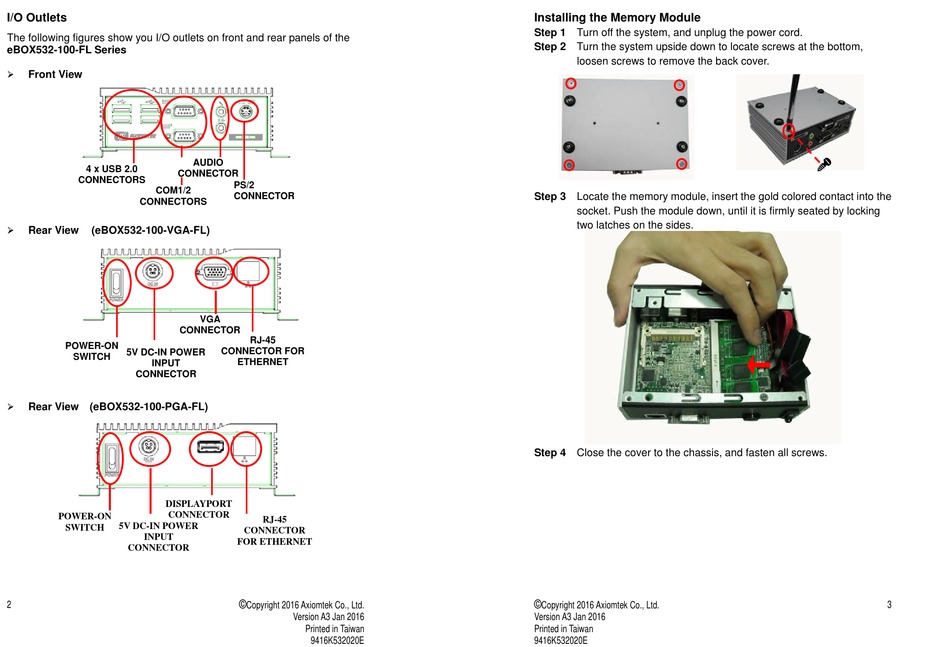

I/O Outlets
The following figures show you I/O outlets on front and rear panels of the
eBOX532-100-FL Series
Front View
4 x USB 2.0
CONNECTOR
CONNECTORS
COM1/2
CONNECTORS
Rear View
(eBOX532-100-VGA-FL)
CONNECTOR
POWER-ON
5V DC-IN POWER
SWITCH
INPUT
CONNECTOR
Rear View (eBOX532-100-PGA-FL)
DISPLAYPORT
CONNECTOR
POWER-ON
5V DC-IN POWER
SWITCH
INPUT
CONNECTOR
2
AUDIO
PS/2
CONNECTOR
VGA
RJ-45
CONNECTOR FOR
ETHERNET
RJ-45
CONNECTOR
FOR ETHERNET
©
Copyright 2016 Axiomtek Co., Ltd.
Version A3 Jan 2016
Printed in Taiwan
9416K532020E
Installing the Memory Module
Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom,
loosen screws to remove the back cover.
Step 3 Locate the memory module, insert the gold colored contact into the
socket. Push the module down, until it is firmly seated by locking
two latches on the sides.
Step 4 Close the cover to the chassis, and fasten all screws.
©
Copyright 2016 Axiomtek Co., Ltd.
Version A3 Jan 2016
Printed in Taiwan
9416K532020E
