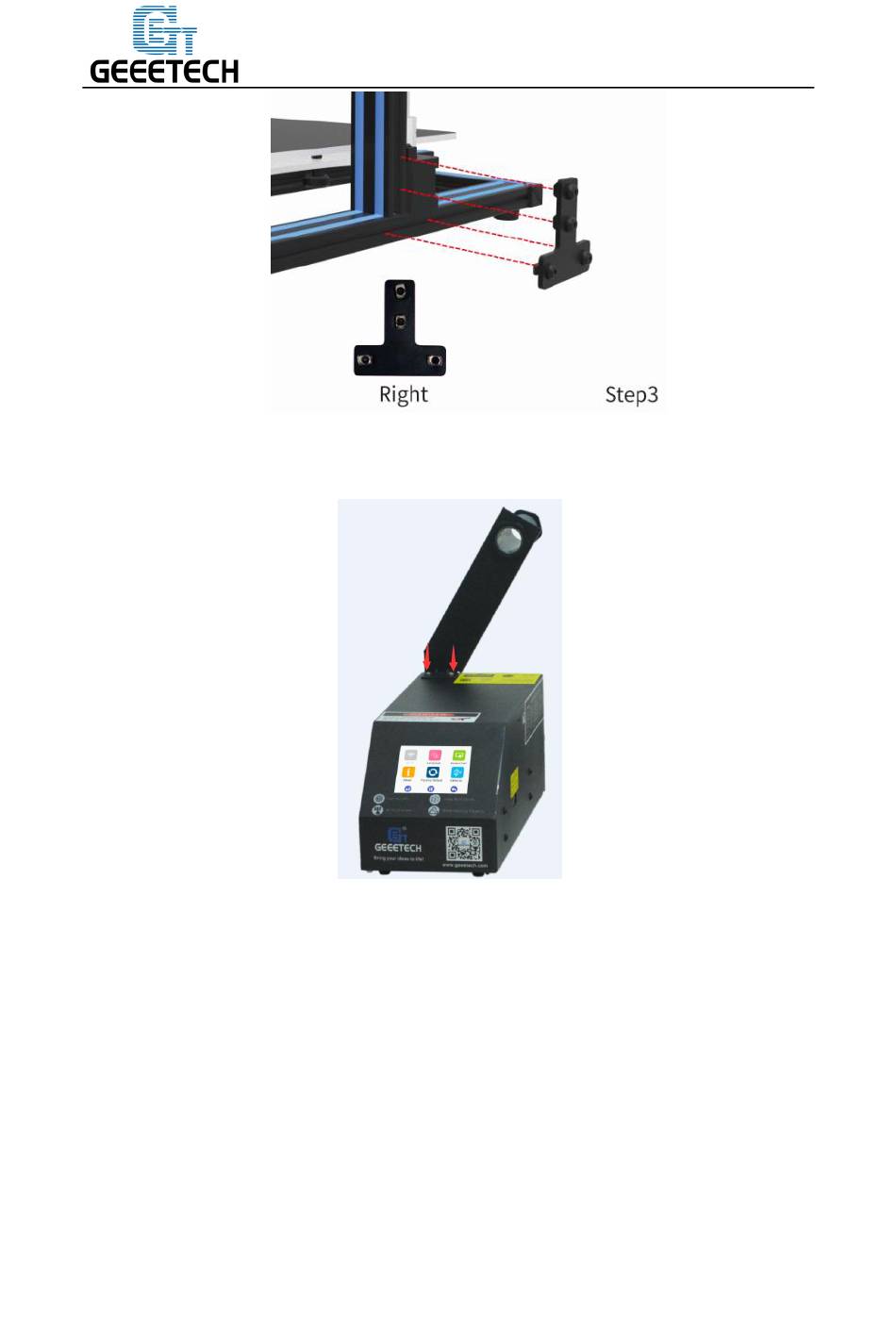

3) Assemble filament spool holders and fix to the corresponding screw holes on the top of
control box, with 2pcs M3x6 screws, as shown in picture (3-5).
3.2 Wire connection
1)
Insert the Teflon tube into the quick-insert connector of the extruder as shown in picture
(3-6).
Shenzhen Getech Technology Co.,Ltd
(Picture 3-4)
(Picture 3-5)
6
