3 Assembling

3.1 Main Frame Assembling

Main frame consists of gantry frame, base, T- shaped plate, spool holder, control box and screws.

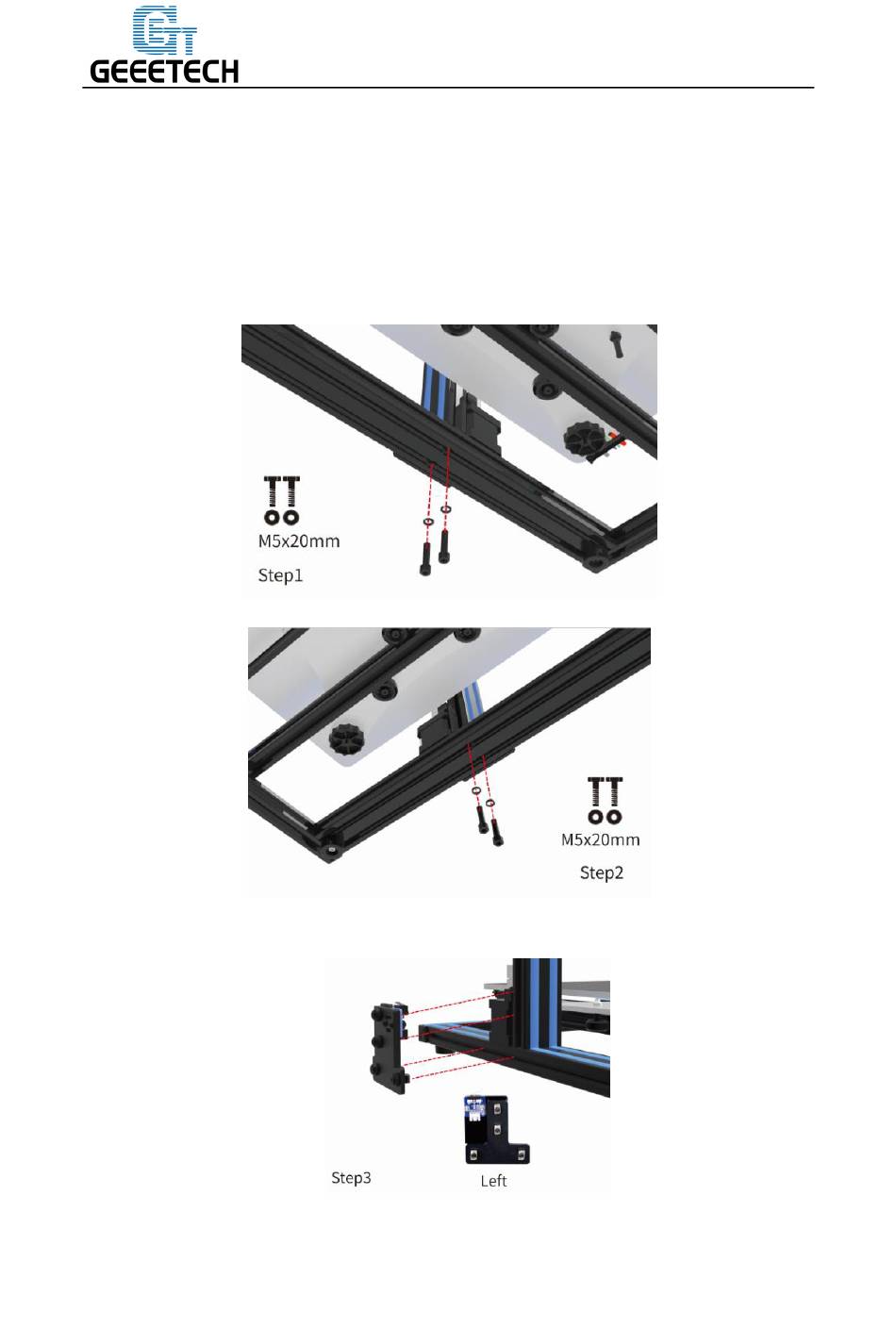

1) Assemble the gantry frame and base from bottom with 4 M5x20 screws and 4 spring washers
M5 as shown in picture (3-1), (3-2).
2) Fix the gantry frame and base with T-shaped plates. See picture (3-3, 3-4).
Shenzhen Getech Technology Co.,Ltd
(Picture 3-1)
(Picture 3-2)
(Picture 3-3)
