2)
Plug extruder wire into molex socket. Be sure plug is firmly seated into socket. See picture
(3-7).
3)
Connect extruder motor wires of E0. See picture (3-8).
_
4)
Connect the wires of X axis motor and end stop. See picture (3-9).
Shenzhen Getech Technology Co.,Ltd

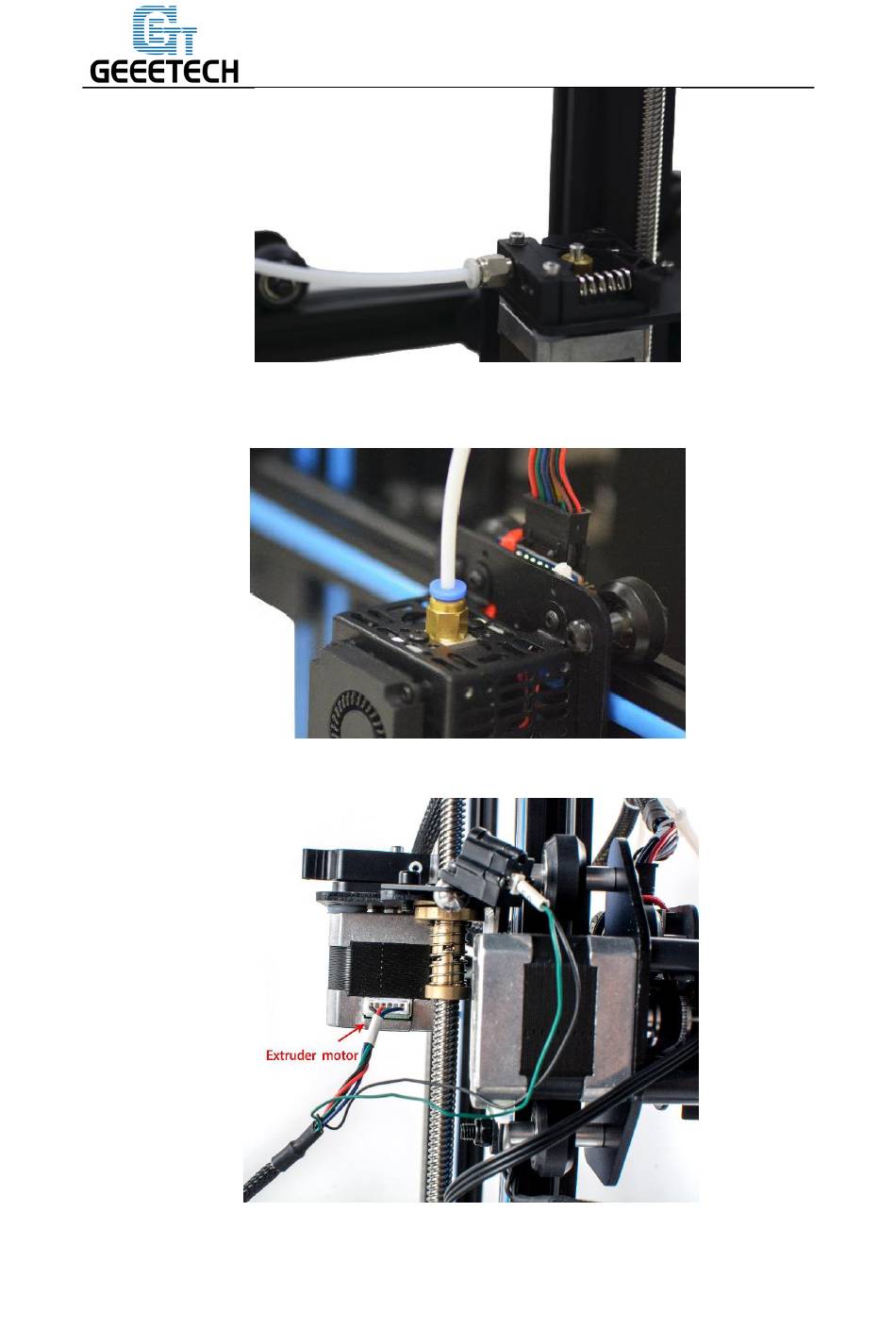

(Picture 3-6)
(Picture 3-7)
(Picture 3-8)
7
