Geeetech A30 User Manual page 23

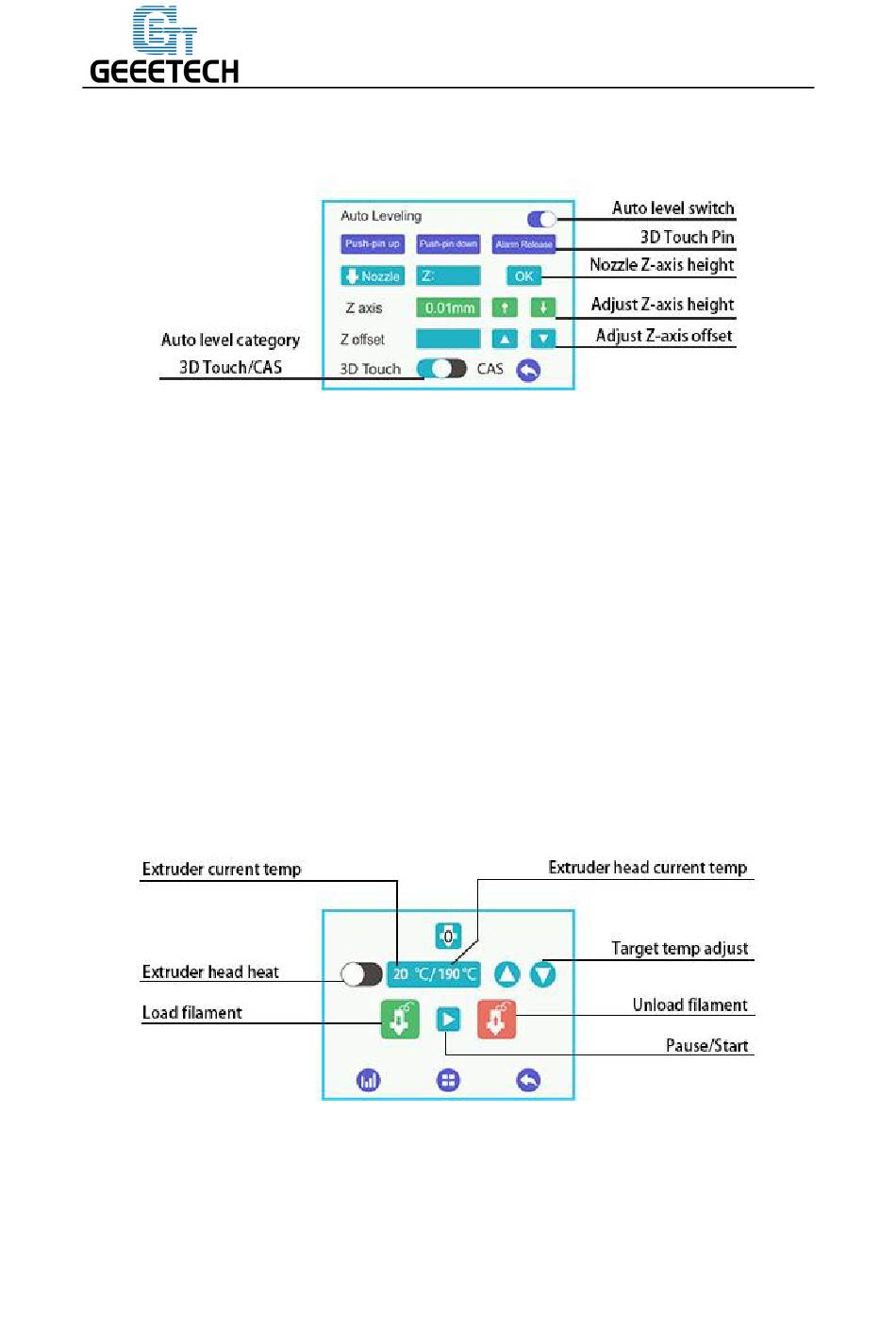

First, you need to select the type of auto leveling, 3D Touch or CAS. Click the bottom icon to
select and then click the upper switch to turn on the auto leveling function. If you choose "3D
Touch", click "Push-pin up/Push-pin down" and "Alarm Release" to test whether the 3D Touch
function is normal before leveling.
And then click the adjustment button of "Z axis offset" on the right side to select the appropriate
offset accuracy. And adjust the difference of height to set available range between the bottom of
3D Touch pin and nozzle. And then click "OK", the parameter of auto leveling is finished.
5) Click "Filament" to its interface. See picture (5-12).
Shenzhen Getech Technology Co.,Ltd
(Picture 5-11)
(Picture 5-12)
23
