5 Assembling

5.1Main Frame Assembling

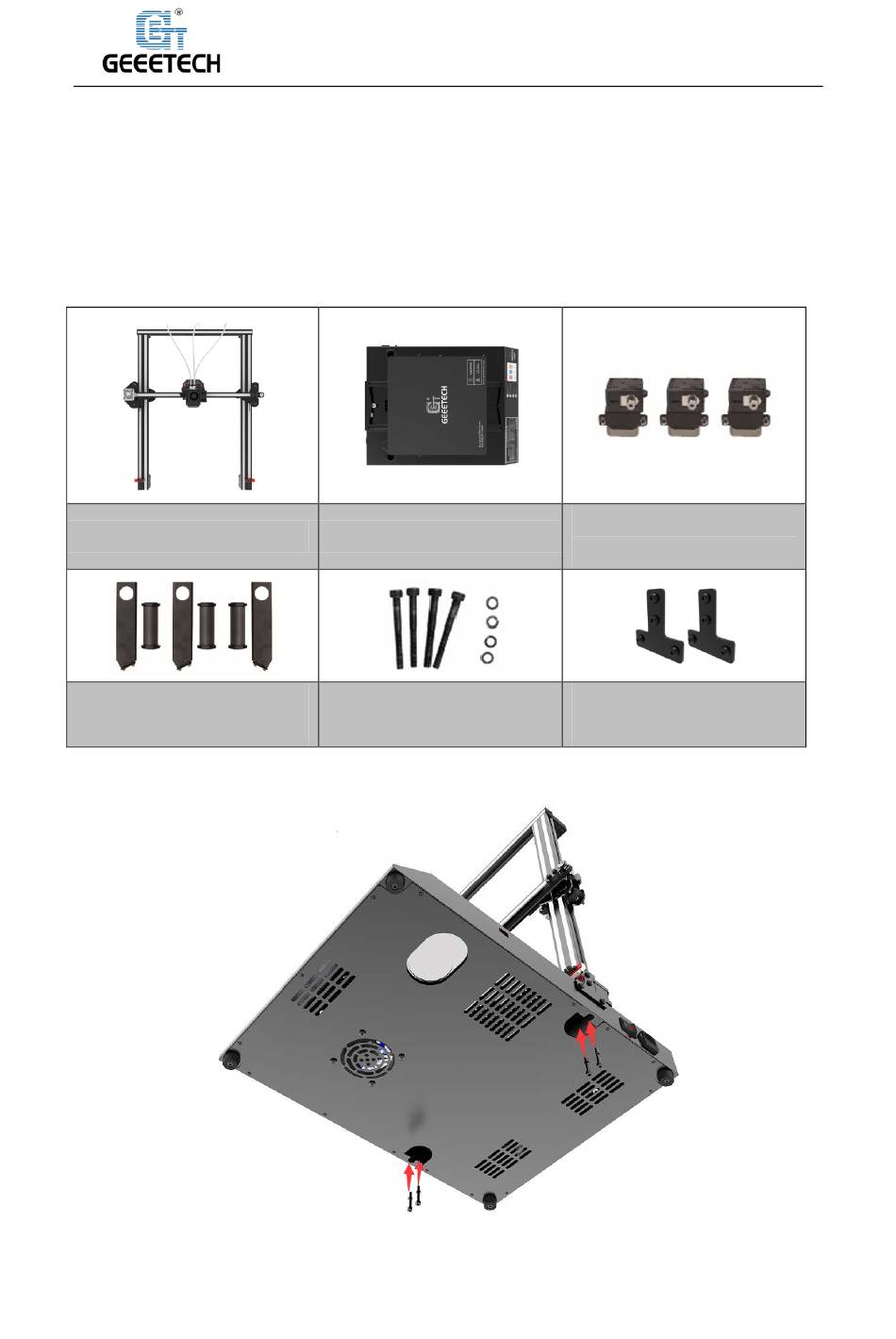

Main frame consists of gantry kit and base, remote extruder assembly, spool holder, T- shaped
plate and screws.
Gantry kit
Filament holder kit
(3 sets)
1) Assemble the gantry frame and base from bottom with 4 M5x30 screws and 4 spring
washers M5 as shown in picture (5-1).
2) Fix the gantry frame and base with T-shaped plates. See picture (5-2, 5-3).
Shenzhen Getech Technology Co.,Ltd
Bottom kit
Gantry and base
installing screws
（Picture 5-1）
8
Remote extruder assembly
(3 sets)
T-shaped plate component
(2 sets)
