12 SPEED- 22" DRILL PRESS
MODEL: KC-122FC

INSTRUCTION MANUAL

COPYRIGHT © 2002 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-122FC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for King Industrial KC-122FC

  • Page 1: Instruction Manual

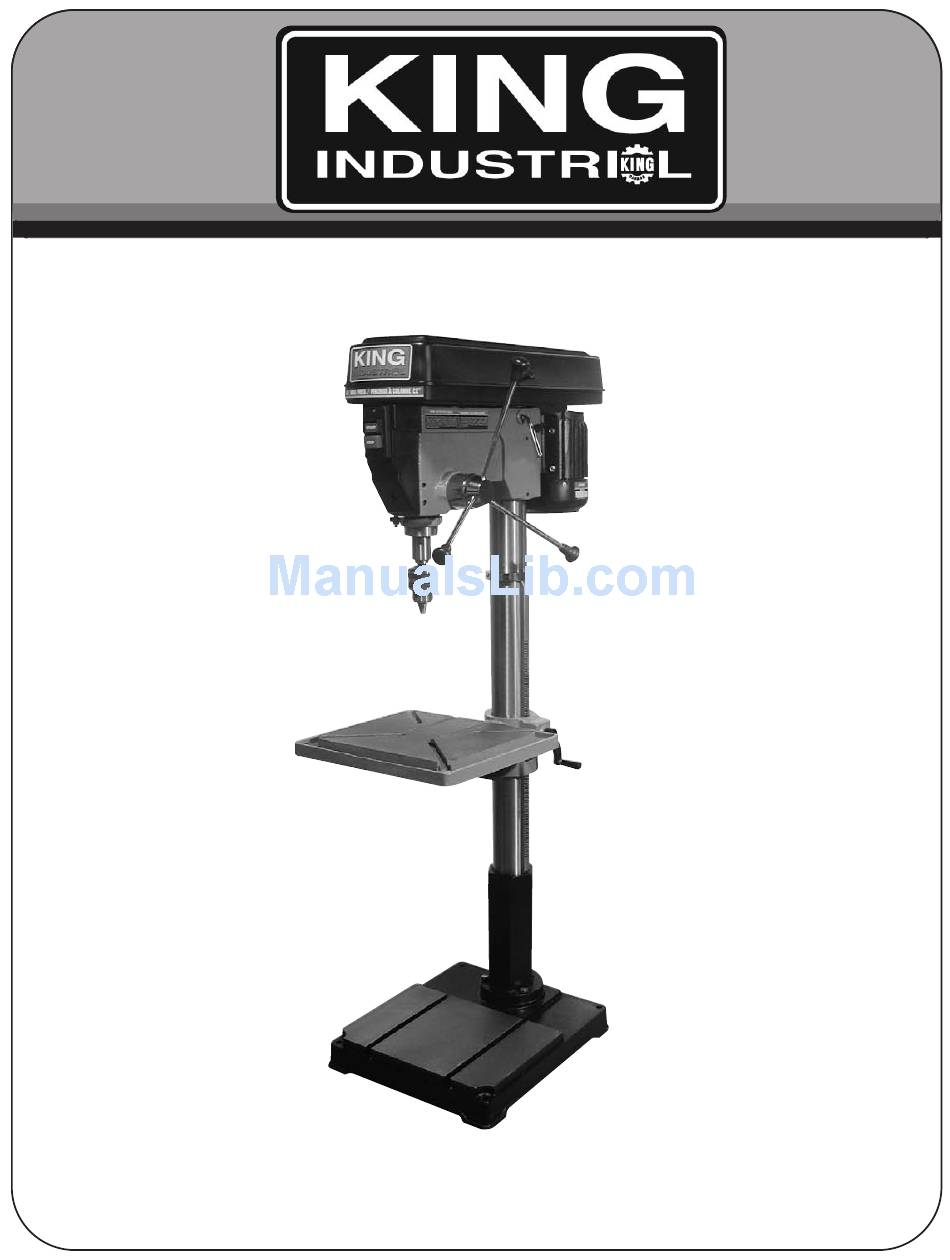

    12 SPEED- 22” DRILL PRESS MODEL: KC-122FC INSTRUCTION MANUAL COPYRIGHT © 2002 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2: Replacement Parts

    IMPORTANT INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR INDUSTRIAL USE. FOR THIS DRILL PRESS PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this tool are available at our authorized KING CANADA service centers across Canada. For servicing, contact or return to the retailer where you purchased your product along with your proof of purchase.
  • Page 3: Specific Safety Rules For Drill Presses

    GENERAL SAFETY RULES FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, they are NOT specific potential hazards.
  • Page 4: Specifications

    SPECIFICATIONS SPECIFICATIONS FOR 22” DRILL PRESS MODEL: KC-122FC VOLTAGE ..........................................110V/220V AMPS ......................................12.5A@ 110V, 6.25A@ 220V MOTOR R.P.M..........................................1720 Hz ................................................60 PHASE ..............................................1 CHUCK CAPACITY ........................................3/4” SPINDLE TAPER ..........................................MT#4 NUMBER OF SPEEDS ........................................12 UNPACKING/TOOLS NEEDED TABLE OF BOX CONTENTS A- Head assembly ................1 B- Table ....................1...
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE DRILL PRESS DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY EXTENSION CORDS WARNING: YOUR DRILL PRESS MUST BE CONNECTED TO A...
  • Page 6: Getting To Know Your Drill Press

    GETTING TO KNOW YOUR DRILL PRESS FIGURE 5 LOCATION AND FUNCTION OF CONTROLS 1. Belt tension lock handles...Tightening handles locks motor perform desired operations. bracket support to maintain correct belt distance and tension. 8. Depth scale...Allows the operator to adjust the drill press to drill 2.
  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS BASE AND COLUMN ASSEMBLY (FIG.6) Column 1. Position the base on the floor. Remove the protective covering and discard. 2. Remove protective sleeve from the column and discard. Place the column assembly on the base, align the holes in the column support Base with the holes in the base.
  • Page 8: Pulley Alignment And Speed Adjustment

    ASSEMBLY INSTRUCTIONS INSTALLING THE HEAD (FIG.11) 1. Remove the protective covering from the head assembly. 2. Carefully lift the head above the column and slide it down on the column as far as it will go. Align the head with the table and the base.
  • Page 9: Installing The Chuck

    ASSEMBLY INSTRUCTIONS INSTALLING THE CHUCK 1. Clean out the tapered hole in the chuck, clean the spindle nose with Quill a clean cloth. Make sure there are no foreign particles sticking to the surfaces. The slightest piece of dirt on the spindle nose or on the Arbor chuck will prevent the chuck from seating properly.
  • Page 10 ADJUSTMENTS ADJUSTING THE TABLE SQUARE TO THE HEAD NOTE: The combination square must be “true”. 1. Insert precision round steel rod or straight drill bit approximately 3” long into the chuck and tighten. 2. With the table raised to work height and locked to the column, place the combination square flat on the table beside the rod or drill bit.(Fig.19).
  • Page 11 ADJUSTMENTS & OPERATIONS BASIC DRILL PRESS OPERATIONS Chuck key INSTALLING DRILL BITS Chuck Insert drill bit into chuck far enough to obtain maximum gripping of the chuck jaws (fig.21). The jaws are approximately 1” long. When using a Jaws small drill bit, do not insert it so far that the jaws touch the flutes (spiral grooves) of the drill bit.
  • Page 12: Tilting Table

    ADJUSTMENTS & OPERATIONS TILTING TABLE To use the table in a bevel (tilted) position (Fig.24), loosen the table 10. When there is enough tension after checking, tighten nut. Do bevel lock nuts under the table. Tilt the table to the desired angle by not over tighten.
  • Page 13: Maintenance & Troubleshooting

    MAINTENANCE / TROUBLESHOOTING LUBRICATION All of the ball bearings are packed with grease at the factory. They require no further lubrication. Periodically lubricate the splines (Grooves) in the spindle and the rack (Teeth of the quill). WARNING! For your own safety, turn the switch “OFF” and remove the plug from the power source before maintaining or lubricating your drill press.
