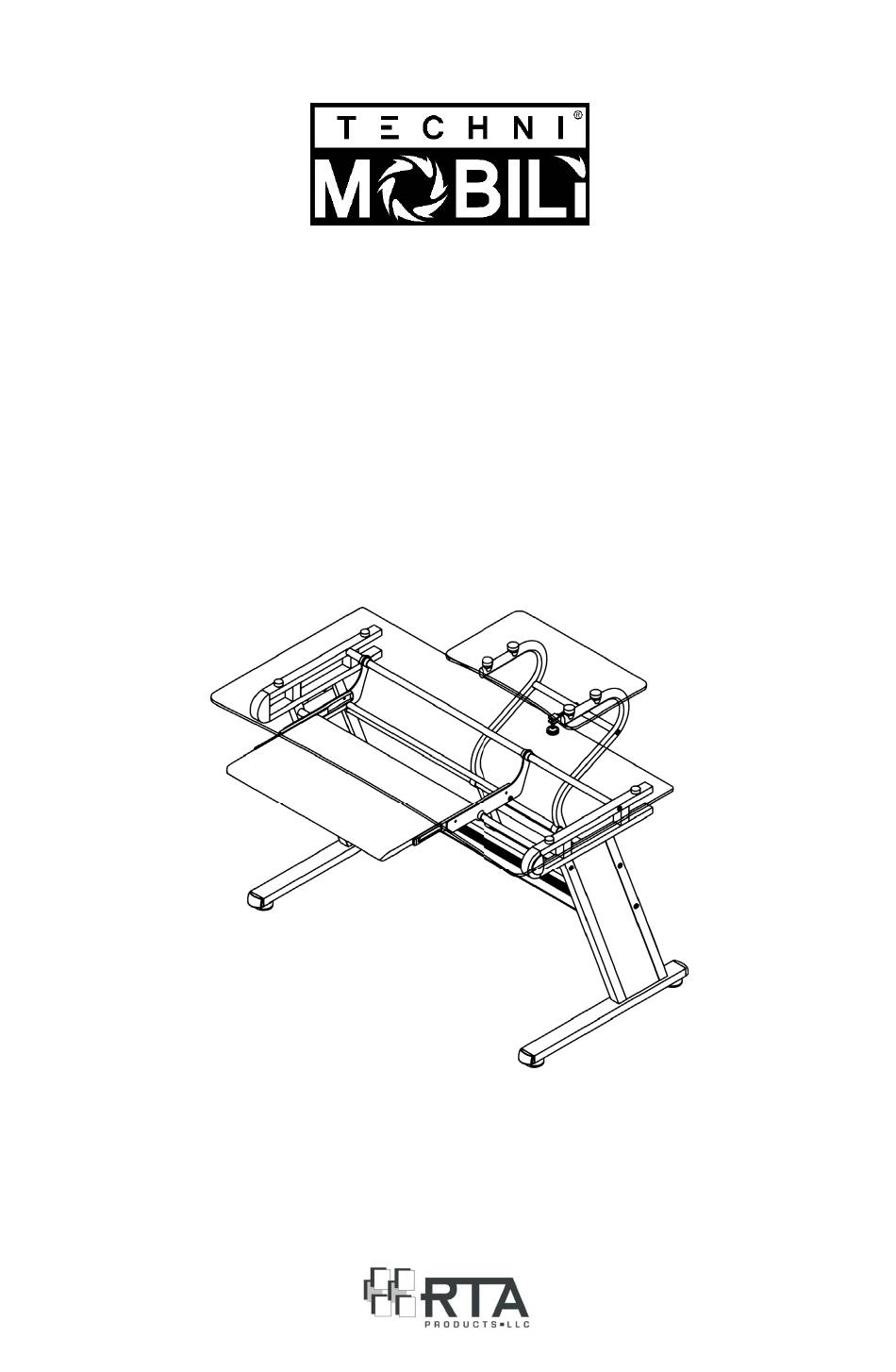

- Page 1 MODEL RTA-0044D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.072021-0...
- Page 2 RTA-0044D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
- Page 3 RTA-0044D MAIN PARTS LIST Left structure Right structure Keyboard Main glass panel panel Adjustable Right shelf Left slider Right slider Left shelf stand glass panel stand Lower short stand tube Lower short stand tube Lower back panel Lower back panel...
- Page 4 RTA-0044D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 5: Assembly Steps
RTA-0044D ASSEMBLY STEPS STEP 1 • Insert the end caps A and B into the structures 1 and 2, making sure that the caps B go in with their nuts facing DOWN. Hardware: • Insert the lower studs F through the legs and into the nut of caps B. - Page 6 RTA-0044D STEP 3 • DO NOT TIGHTEN ANY SCREWS IN THIS STEP, leave them loose to allow flexibility to install the stand from step 4. Hardware: • With the help of another person, assemble the tubes 12 from the structure built in step 2 in between the structures 1 and 2 with screws M6x27 G as shown.
- Page 7 RTA-0044D STEP 5 • With the help of another person, assemble the long tubes 13 to the structures 1 and 2 with screws I as shown. Hardware: • Proceed to tighten all the screws that were left loose in step 3.
-
Page 8: Very Important
RTA-0044D STEP 7 • With the help of another person, place the main glass panel 4 over the frame making sure the holes on its metal discs coincide with the Hardware: holes on the structures 1 and 2. • Secure the glass with screws G from underneath, but screw loosely to M6x27 avoid misalignments, and tighten after all the screws are in place. - Page 9 RTA-0044D STEP 9 • Place the glass studs E over the holes on the shelf stands 6 and 7. • Place the adjustable glass panel 5 over the studs making sure the Hardware: hole from the metal discs coincide with the holes on the studs.
-
Page 10: Weight Limits
RTA-0044D AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 11 Lbs. (5.00 Kg) 88 Lbs. 11 Lbs. (40.00 Kg) (5.00 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. - Page 11 P.10 RTA-0044D P.10 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 12 P.11 RTA-0044D P.11 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
