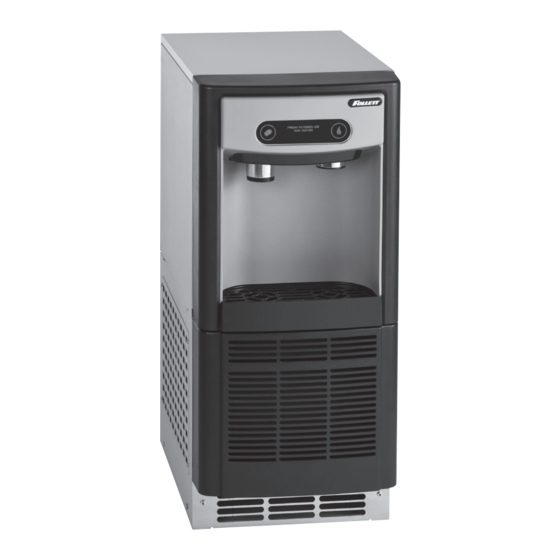

Undercounter ice and water dispenser with chewblet ice machine
Hide thumbs Also See for E01087:
Table of Contents

Advertisement

Quick Links

Download this manual

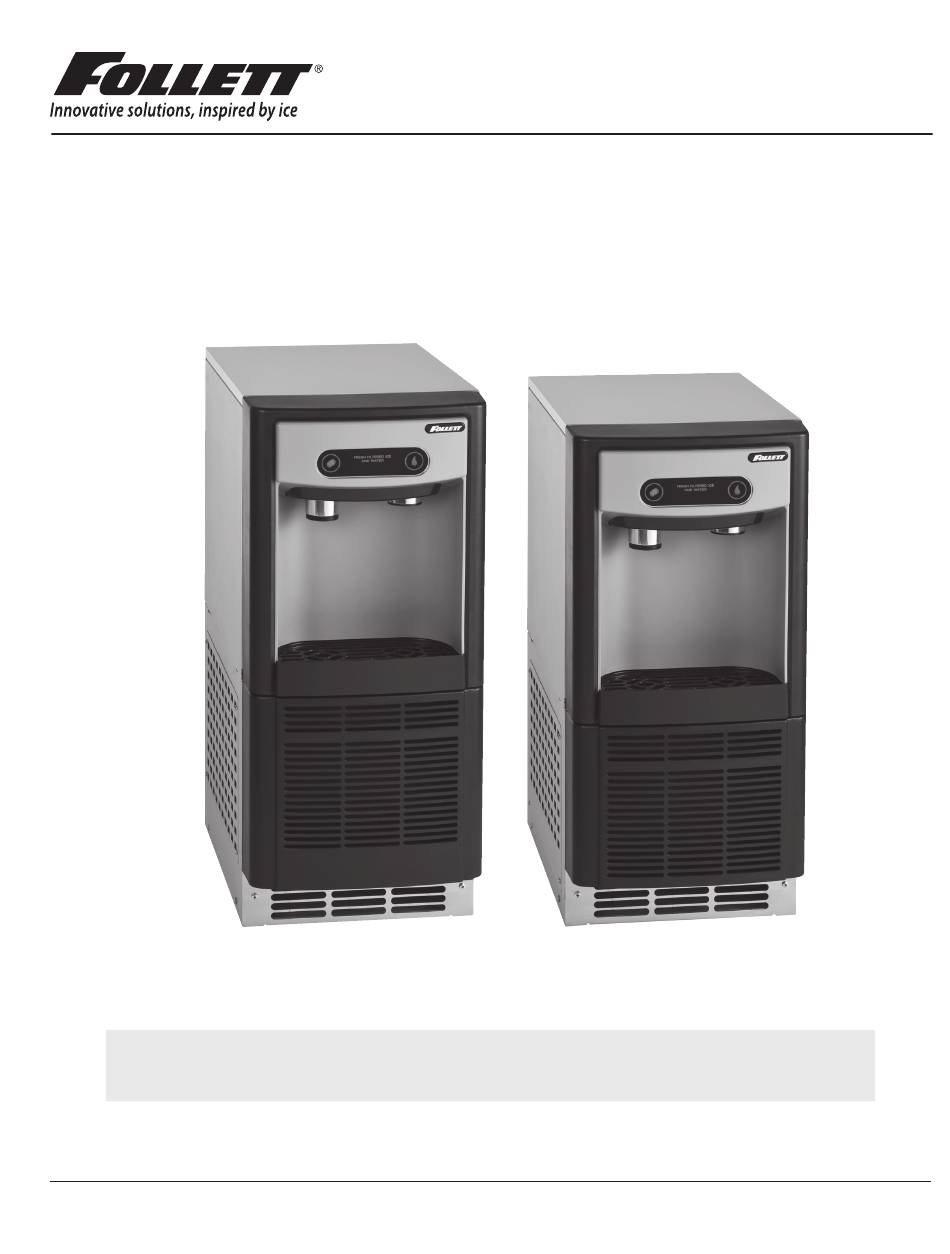

Undercounter Ice and Water Dispenser
with Chewblet
Ice Machine
®
7UC100A, 7UD100A
Installation, Operation and Service Manual
Serial numbers E01087 to J57179
7UC100A
7UD100A
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00966879R08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E01087 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Follett E01087

Summary of Contents for Follett E01087

  • Page 1 Undercounter Ice and Water Dispenser with Chewblet Ice Machine ® 7UC100A, 7UD100A Installation, Operation and Service Manual Serial numbers E01087 to J57179 7UC100A 7UD100A Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
  • Page 2 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 3: Table Of Contents

    Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Before You Begin .

  • Page 4: Welcome

    After uncrating and removing all packing material, inspect the equipment for concealed shipping damage . If damage is found, immediately notify the shipper and contact Follett Corporation so that we can help in the filing of a claim, if necessary . If needed, the serial number of your dispenser can be found by removing the drip tray ❶...

  • Page 5: Specifications

    Specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––– Dimensions 7UC100A 7UD100A Width 14 .55" (370 mm) 14 .55" (370 mm) Depth 22 .05" (560 mm) 22 .05" (560 mm) Height 33 .50" (851 mm) 31 .50" (800 mm) Unit Shipping Weight 110 lb (50 kg) 110 lb (50 kg) Ambient Information CAUTION! The 7UC100A and 7UD100A are for indoor use only.

  • Page 6: Detailed Drawing

    Specifications –––––––––––––––––––––––––––––––––––––––––––––– (continued) Detailed Drawing 22.05" (560 mm) 14.55" (370 mm) 4.00" (102 mm) SIDE VIEW FRONT VIEW 3.81" (97 mm) 14.55" (370 mm) Dimension 7UC100A 7UD100A (ADA) 33.50” (851 mm) 31.50” (800 mm) 22.76” (578 mm) 20.76” (527mm) 22.69” (576 mm) 20.69”...

  • Page 7: Installation

    Installation –––––––––––––––––––––––––––––––––––––––––––––––––––––––– CAUTION! No service or maintenance should be performed until the technician has thoroughly read this service manual. Except for routine cleaning and sanitizing, only qualified technicians should attempt to service or maintain this equipment. 1 . Measure to verify that the dispenser will fit in the desired location . Fig .
  • Page 8 * If your dispenser has the internal water filter option, the water filter must be installed for the dispenser to operate . Because internal components will need to be accessed for both procedures, Follett recommends installing the water filter just prior to initial sanitizing .

  • Page 9: Maintenance/Cleaning Mode

    Maintenance/Cleaning Mode ––––––––––––––––––––––––––––––––––––––––– Cleaning Mode (Dispensing Disabled) - Use when cleaning surface Fig . 5 Entering Cleaning Mode disables the User Interface and allows you to clean the outside of the dispenser without accidentally dispensing water or ice . 1 . To enter Cleaning Mode, press and immediately release the maintenance/clean switch (Fig .

  • Page 10: Filter Display Indicator Activation

    Filter Display Indicator Activation ––––––––––––––––––––––––––––––––––––– If you purchased your dispenser with a Follett filter, the filter display indicator Fig . 7 activation has been preset at the factory . If you are using an “after market filter,” an adjustment may be made to activate the “Fresh Filtered Ice &...

  • Page 11: Cleaning And Sanitizing

    Cleaning and Sanitizing ––––––––––––––––––––––––––––––––––––––––––––– Fig . 9 Cleaning and sanitizing should be performed at least every 6 months (more often if local water conditions dictate) . For initial startup, only sanitizing is required . IMPORTANT! Prior to cleaning and sanitizing, the dispenser must be moved forward at least 4"...

  • Page 12: Service

    LEDs will turn off, and the machine will resume normal operation . Service 8000 hour bushing check (call Follett technical service group at (877) 612-5086 or +1 (610) 252-7301) . Maintenance Yellow Enter Maintenance Mode by pressing and holding maintenance/clean switch for 5 seconds .

  • Page 13: Evaporator Disassembly

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Disassembly Fig . 11 1 . Disconnect power from the dispenser . 2 . Turn off water supply to dispenser . 3 . Remove (unscrew) chrome ice dispenser chute (Fig . 11 .1) . 4 . Remove the drip tray (Fig . 11 .2) . 5 .
  • Page 14 Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) 10 . Unplug the gear motor (three connectors) (Fig . 12) . Fig . 12 11 . Remove ground screw connection . 12 . Remove gear motor: Fig . 13 § Remove M6 allen screw, retainer, spacer and key (Fig . 13 .1) . §...
  • Page 15 Service ––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) 15 . Remove M6 socket head allen screw (Fig . 15 .1) . Fig . 15 16 . Remove compression nozzle retainer (Fig . 15 .2) . 17 . Remove compression nozzle (Fig . 15 .3) . 18 . Remove main housing: Fig .

  • Page 16: Evaporator Assembly

    Service ––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) 21 . Remove and discard mating ring and seal (Fig . 18 .1) . Fig . 18 22 . Carefully remove auger (Fig . 18 .2) . WARNING! Use caution when removing auger. The auger is very sharp - handle with care to avoid personal injury. Evaporator Assembly Fig .
  • Page 17 Service ––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Fig . 21 Install compression nozzle: § Remove and inspect compression nozzle O-ring seal . Replace if damaged in any way . § Clean O-ring groove . Lubricate O-ring with Petro-gel and reinstall . § Install compression nozzle (Fig . 21 .1) . §...
  • Page 18 Service ––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) 11 . Use screwdriver to orient auger shaft to align with motor Fig . 24 shaft keyway (Fig . 24 .1) . 12 . Install key into keyway (Fig . 24 .2) . 13 . Install spacer, ensure that key is captured in slot Fig .
  • Page 19 Service ––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) 16 . Install screw and tighten (Fig . 27 .1) . Fig . 27 17 . Plug in gear motor (Fig . 28) . Fig . 28 § BLUE to BLUE § BLACK to BLACK § WHITE to WHITE §...

  • Page 20: Water Feed Schematic

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 21: Bin Melt Water/Evaporator Feed/Clean Out System Schematic

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 22: Refrigeration Schematic

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR ACCUMULATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 23: Condenser Fan Motor Removal

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Condenser Fan Motor Removal Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 24: User Interface Display Identification

    . Internal leak in Locate leak and repair - Press reset on control dispenser board . Contact Follett if ice machine is leaking . Sleep mode Press either dispense button to return to normal operation . Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 25: Electrical Wiring Diagram

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Electrical Wiring Diagram Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 26: Parts

    Parts ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Exterior Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 27 Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Exterior Reference # Description Part # Drain, Tray Assy 00957613 Panel, Front Assy - Includes Water Nozzle and Plug 00957621 Chute, Water (water option) 00957688 Panel, Top Left 00947010 Panel, Top Right 00947028 Panel, Top 00957654 Panel, Rear 00957662 Panel, Lower, 7UC100A Height: 12 .0"...

  • Page 28: Interior

    Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 29 Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Reference # Description Part # Valve, Dispense Solenoid (water option) 00957704 Switch, Cleaning 00957712 Drain/Feed Tube with Cap 00957720 Valve, Failsafe Solenoid 00957738 Compressor with Mounting Hardware 00958009 Condenser 00958017 Condenser Fan and Cord 00958025 Control Board with Stand-offs 00958033 Capacitor, Gearmotor 00958041...

  • Page 30: Bin Assembly

    Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 31 Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Reference # Description Part # Ice Chute Assembly 00957670 Ice Transport Tubing with Insulation 00957746 Switch, Shuttle 00957753 Shuttle, Complete Assy 00957761 Lid, Bin Assy 00957779 Bin, Assy 00957787 Auger, Dispense 00957795 Motor, Dispense 00957803 Cap and Insulation, Bin 00957936 Not Shown...

  • Page 32: Evaporator Assembly

    Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Assembly Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 33 Front Seal and O-Ring 00957860 Evaporator Assembly with Insulation 00957878 Housing, Bushing with Insulation 00957886 Hardware kit, Gearmotor (For serial numbers E01087 and above) 01048628 Hardware kit, Gearmotor (For serial numbers below E01087) 00957894 Reservoir and Float Complete Assy 00957902...
  • Page 34 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 35 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 36 SafeCLEAN is a trademark of Follett Corporation. Follett is a registered trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00966879R08 Toll free (877) 612-5086 • +1 (610) 252-7301 © Follet Corporation 9/14 www.follettice.com...
