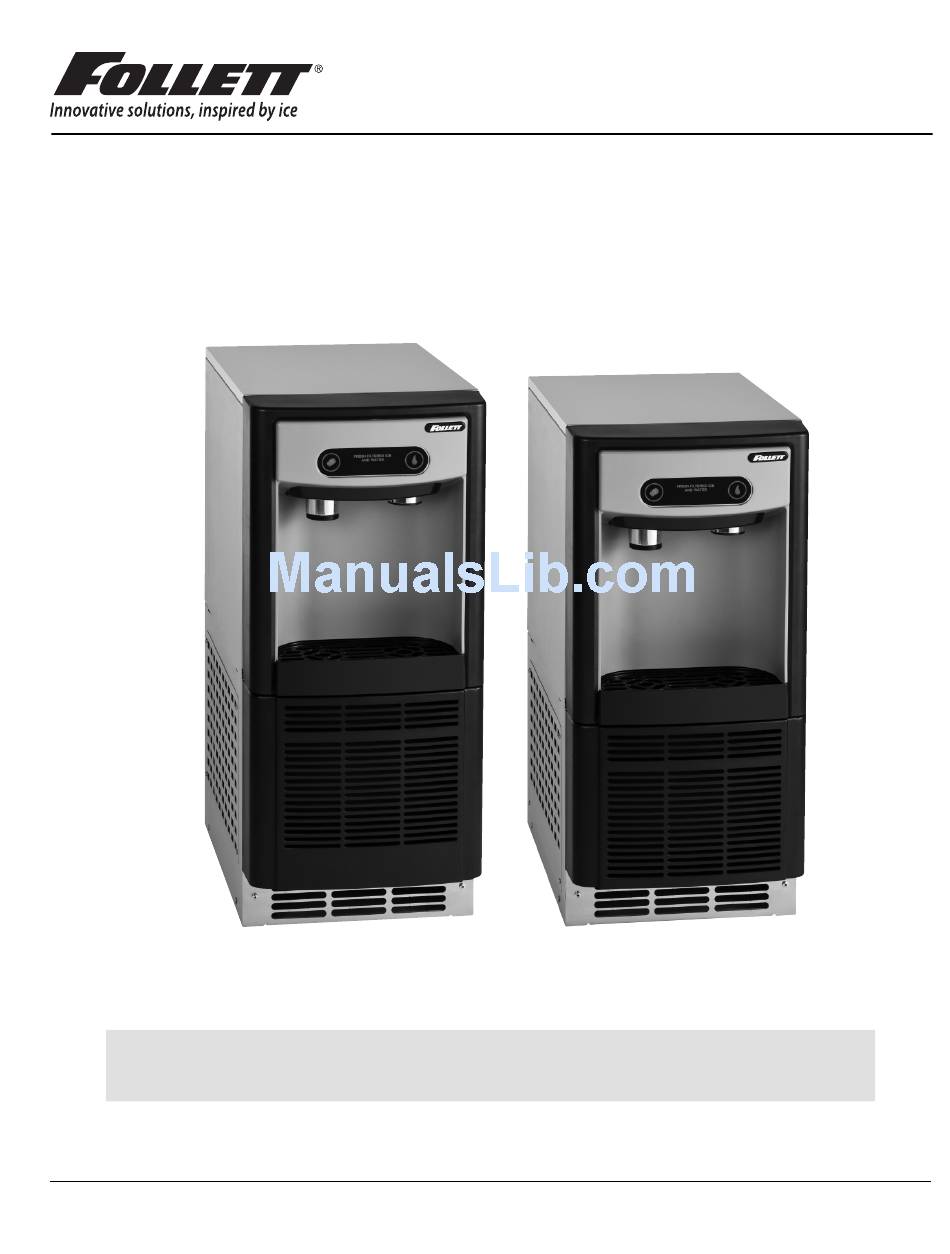

Undercounter Ice and Water Dispenser
®
with Chewblet
Ice Machine
7UC100A, 7UD100A
Installation, Operation and Service Manual
Serial numbers E01087 and above
7UC100A
7UD100A
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00966879R07

Advertisement

Table of Contents
loading

Related Manuals for Follett 7UC100A

Summary of Contents for Follett 7UC100A

  • Page 1 Undercounter Ice and Water Dispenser ® with Chewblet Ice Machine 7UC100A, 7UD100A Installation, Operation and Service Manual Serial numbers E01087 and above 7UC100A 7UD100A Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
  • Page 2 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 3: Table Of Contents

    Evaporator Assembly ............... 32 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 4: Welcome

    2. Ice is slippery. Maintain counters and fl oors around dispenser in a clean and ice-free condition. 3. Ice is food. Follow the recommended cleaning and sanitizing instructions to maintain cleanliness of delivered ice. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 5: Specifi Cations

    33.50" (851 mm) 31.50" (800 mm) Unit Shipping Weight 110 lb (50 kg) 110 lb (50 kg) Ambient Information CAUTION! The 7UC100A and 7UD100A are for indoor use only. Maximum* Minimum* Air Temperature † 100 F (38 C) 50 F (10 C) Water Temperature 90 F (32.2 C)

  • Page 6: Detailed Drawing

    33.50” (851 mm) 31.50” (800 mm) 22.76” (578 mm) 20.76” (527mm) 22.69” (576 mm) 20.69” (526 mm) 2.40" 2.98" (61 mm) (76 mm) 1/4" MPT power cord water inlet NEMA 5-15 right angle BACK VIEW Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 7: Installation

    4. Install the angle bracket inside the cabinet,18.15" (461 mm) from Fig. 2 the toe kick (Fig. 2.1). The bracket prevents the dispenser from being located/pushed beyond the recommended cabinet space depth. Do not attach the bracket to the dispenser. 18.15” (461 mm) Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 8 9. Install fi lter as shown. Turn fi lter clockwise until it is fully seated (Fig. 4.3). 10. Connect power supply. 11. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on page 11). Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 9: Maintenance/Cleaning Mode

    5. Remove and set aside the front panel (Fig. 6.4) - do not disengage the plug on the back of the User Interface or the tubing at the water dispenser chute (if so equipped). Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 10: Filter Display Indicator Activation

    Internal filter supplied or to display "Fresh Filtered" No internal filter Not used (OFF position) Not used (OFF position) 15 minute delay 30 minute delay Not used (OFF position) Six-month PM disabled Six-month PM enabled Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 11: Cleaning And Sanitizing

    8. Place a bucket under the dispense chute and remove cap. Note: Some sanitizing solution will remain and drain out when cap is removed. Reposition cap on bin lid spout. 9. Reinstall front panel, ice dispense chute, and drip tray. 10. Press and hold maintenance/clean switch to exit Maintenance Mode. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 12: Service

    12 hours has elapsed or ice or water has dispensed. Making ice Green Gearmotor, compressor, and fan motor energized. Low bin Green Bin switch closed calling for ice. Power on Green Power supplied to unit. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 13: Evaporator Disassembly

    User Interface. Lift and remove the top panel, set aside (Fig. 16.5). 8. Remove two screws (Fig. 11.6) and remove left side panel. 9. Remove two screws (Fig. 11.7) and remove right side panel. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 14 § Pull gear motor from auger (Fig. 13.3). § Remove main housing insulation (Fig. 13.4). 13. Remove all traces of petro-gel from auger shaft. 14. Remove compression nozzle: Fig. 14 § Loosen hose clamp (Fig. 14.1). § Remove transport tube (Fig. 14.2). Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 15 17. Remove compression nozzle (Fig. 15.3). 18. Remove main housing: Fig. 16 § Disconnect vent line from T fi tting (Fig. 16.1). 19. Remove three M6x25 socket head allen screws Fig. 17 (Fig. 17.1). 20. Remove main housing (Fig. 17.2). Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 16: Evaporator Assembly

    5. Install auger (Fig. 19.4). 6. Install main housing: Fig. 20 § Slide main housing onto auger shaft (Fig. 20.1). § Install three M6x25 allen screws (Fig. 20.1). § Connect vent line to T fi tting (Fig. 20.1). Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 17 Fig. 22 9. Tighten hose clamp (Fig. 22.2). 10. Install gear motor: Fig. 23 § Install main housing insulation (Fig. 23.1). § Slide gear motor onto auger shaft (Fig. 23.2). § Install two M6x90 allen screws (Fig. 23.3). Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 18 13. Install spacer, ensure that key is captured in slot Fig. 25 (Fig. 25.1) 14. Insert screwdriver into groove of auger shaft and pry shaft Fig. 26 outwards (Fig. 26.1). 15. Insert retainer into groove (Fig. 26.2), ensure that retainer is aligned with hole in spacer. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 19 16. Install screw and tighten (Fig. 27.1). Fig. 27 17. Plug in gear motor (Fig. 28). Fig. 28 § BLUE to BLUE § BLACK to BLACK § WHITE to WHITE § Connect ground wire with ground screw. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 20: Water Feed Schematic

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 21: Bin Melt Water/Evaporator Feed/Clean Out System Schematic

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 22: Refrigeration Schematic

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR ACCUMULATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 23: Condenser Fan Motor Removal

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Condenser Fan Motor Removal Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 24: User Interface Display Identifi Cation

    D45191, the phone and wrench will not be illuminated. Internal leak in Locate leak and repair - Press reset on control dispenser board. Contact Follett if ice machine is leaking. Sleep mode Press either dispense button to return to normal operation. Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 25: Electrical Wiring Diagram

    Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Electrical Wiring Diagram COMPRESSOR AUGER Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 26: Parts

    Parts ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Exterior Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 27 00957688 Panel, Top Left 00924761 Panel, Top Right 00924779 Panel, Top 00957654 Panel, Rear 00957662 Panel, Lower, 7UC100A Height: 12.0" (304.8 mm) 00924738 Panel, Lower, 7UD100A Height: 10.0" (254 mm) 00924746 Panel, Intake 00924787 Not Shown Cord, 115 VAC 00958058...

  • Page 28: Interior

    Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 29 Condenser Fan and Cord 00958025 Control Board with Stand-offs 00958033 Capacitor, Gearmotor 00958041 Sensor, Retainer Hardware Kit 00958066 Relay and Overload 00958090 Refrigeration, Piping Assy 00958132 Roller Kit, Set of 4 00924753 Bracket, Stop 00924795 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 30: Bin Assembly

    Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 31 Lid, Bin Assy 00957779 Bin, Assy 00957787 Auger, Dispense 00957795 Motor, Dispense 00957803 Cap and Insulation, Bin 00957936 Not Shown For serial numbers D17619 and below: Bin Cap 00931519 Ice Chute 00927210 Chute Adapter 00926550 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...

  • Page 32: Evaporator Assembly

    Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Assembly Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 33 Not Shown Water fi lter cartridge, 5 micron 00968107 Not Shown Cleaning and sanitizing kit, single use 00979856 Not Shown SafeClean, case of 24 00132001 Not Shown IMS II sanitizer concentrate, 16 oz 00979674 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 34 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 35 Undercounter Dispenser and Ice machine 7UC100A/7UD100A...
  • Page 36 SafeCLEAN is a trademark of Follett Corporation. Follett is a registered trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00966879R07 Toll free (877) 612-5086 • +1 (610) 252-7301 © Follet Corporation 8/13 www.follettice.com...
