Follett 7UC100A Installation, Operation And Service Manual

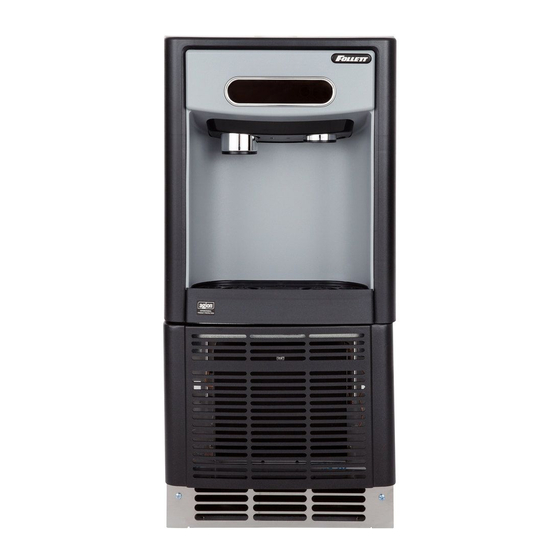

Undercounter ice and water dispenser with chewblet ice icemaker
Hide thumbs
Also See for 7UC100A:
- Installation, operation and service manual (36 pages) ,
- Service manual (36 pages) ,
- Installation, operation and service manual (36 pages)
Table of Contents
Advertisement
Quick Links
Undercounter Ice and Water Dispenser
®
with Chewblet
Ice Icemaker
7UC100A, 7UD100A
Installation, Operation and Service Manual
Serial numbers above D25455
7UC100A
7UD100A
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00966879R05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett 7UC100A
Summary of Contents for Follett 7UC100A
- Page 1 Undercounter Ice and Water Dispenser ® with Chewblet Ice Icemaker 7UC100A, 7UD100A Installation, Operation and Service Manual Serial numbers above D25455 7UC100A 7UD100A Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
-
Page 2: Table Of Contents
Evaporator Assembly ............... 24 Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 3: Welcome
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, immediately notify the shipper and contact Follett Corporation so that we can help in the fi ling of a claim, if necessary. If needed, the serial number of your dispenser can be found by removing the drip tray (1) and locating the serial number label (2). -
Page 4: Specifi Cations
33.50" (851 mm) 31.50" (800 mm) Unit Shipping Weight 110 lb (50 kg) 110 lb (50 kg) Ambient Information CAUTION! The 7UC100A and 7UD100A are for indoor use only. Maximum* Minimum* † Air Temperature 100 F (38 C) 50 F (10 C) Water Temperature 90 F (32.2 C) -
Page 5: Detailed Drawing
33.50” (851 mm) 31.50” (800 mm) 22.76” (578 mm) 20.76” (527mm) 22.69” (576 mm) 20.69” (526 mm) 2.40" 2.98" (61 mm) (76 mm) 1/4" MPT power cord water inlet NEMA 5-15 right angle BACK VIEW Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 6: Installation
4. Install the angle bracket inside the cabinet,18.15" (461 mm) from Fig. 2 the toe kick (Fig. 2.1). The bracket prevents the dispenser from being located/pushed beyond the recommended cabinet space depth. Do not attach the bracket to the dispenser. 18.15” (461 mm) Undercounter Dispenser and Icemaker 7UC100A/7UD100A... - Page 7 * If your dispenser has the internal water fi lter option, the water fi lter must be installed for the dispenser to operate. Because internal components will need to be accessed for both procedures, Follett recommends installing the water fi lter just prior to initial sanitizing.
-
Page 8: Maintenance/Cleaning Mode
5. Remove and set aside the front panel (Fig. 6.4) - do not disengage the plug on the back of the User Interface or the tubing at the water dispenser chute (if so equipped). Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 9: Filter Display Indicator Activation
Filter Display Indicator Activation ––––––––––––––––––––––––––––––––––––– If you purchased your dispenser with a Follett fi lter, the fi lter display indicator Fig. 7 activation has been preset at the factory. If you are using an “after market fi lter,” an adjustment may be made to activate the “Fresh Filtered Ice &... -
Page 10: Cleaning And Sanitizing
8. Place a bucket under the dispense chute and remove cap. Note: Some sanitizing solution will remain and drain out when cap is removed. Reposition cap on bin lid spout. 9. Reinstall front panel, ice dispense chute, and drip tray. 10. Press and hold maintenance/clean switch to exit Maintenance Mode. Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 11: Service
Auger gearmotor has exceeded 0.55A. The HI amps and Time delay LEDs will illuminate, the machine will shut down for one hour, the LEDs will turn off, and the machine will resume normal operation. Service 8000 hour bushing check (call Follett technical service group at (877) 612-5086 or +1 (610) 252-7301). Maintenance Yellow Enter Maintenance Mode by pressing and holding maintenance/clean switch for 5 seconds. -
Page 12: Water Feed Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 13: Bin Melt Water/Evaporator Feed/Clean Out System Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 14: Refrigeration Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR ACCUMULATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 15: Condenser Fan Motor Removal
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Condenser Fan Motor Removal Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 16: User Interface Display Identifi Cation
Exit Maintenance Mode by pressing and holding maintenance/clean switch until no longer displays. Service - 8000 Call Follett Technical Service Group at (877) hr bushing 612-5086 or +1 (610) 252-7301. The fl ashing check wrench indicates that the 8000 hr bushing check is required. -
Page 17: Electrical Wiring Diagram
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Electrical Wiring Diagram Undercounter Dispenser and Icemaker 7UC100A/7UD100A... -
Page 18: Parts
Parts ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Exterior Undercounter Dispenser and Icemaker 7UC100A/7UD100A... - Page 19 00957688 Panel, Top Left 00924761 Panel, Top Right 00924779 Panel, Top 00957654 Panel, Rear 00957662 Panel, Lower, 7UC100A Height: 12.0" (304.8 mm) 00924738 Panel, Lower, 7UD100A Height: 10.0" (254 mm) 00924746 Panel, Intake 00924787 Not Shown Cord, 115 VAC 00958058...
-
Page 20: Interior
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Undercounter Dispenser and Icemaker 7UC100A/7UD100A... - Page 21 Condenser Fan and Cord 00958025 Control Board with Stand-offs 00958033 Capacitor, Gearmotor 00958041 Sensor, Retainer Hardware Kit 00958066 Relay and Overload 00958090 Refrigeration, Piping Assy 00958132 Roller Kit, Set of 4 00924753 Bracket, Stop 00924795 Undercounter Dispenser and Icemaker 7UC100A/7UD100A...
-
Page 22: Bin Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Undercounter Dispenser and Icemaker 7UC100A/7UD100A... - Page 23 Lid, Bin Assy 00957779 Bin, Assy 00957787 Auger, Dispense 00957795 Motor, Dispense 00957803 Cap and Insulation, Bin 00957936 Not Shown For serial numbers D17619 and below: Bin Cap 00931519 Ice Chute 00927210 Chute Adapter 00926550 Undercounter Dispenser and Icemaker 7UC100A/7UD100A...
-
Page 24: Evaporator Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Assembly Undercounter Dispenser and Icemaker 7UC100A/7UD100A... - Page 25 Part # Not Shown Water fi lter cartridge, 5 micron 00968107 Not Shown Cleaning and sanitizing kit, single use 00979856 Not Shown SafeClean, case of 24 00132001 Not Shown IMS II sanitizer concentrate, 16 oz 00979674 Undercounter Dispenser and Icemaker 7UC100A/7UD100A...
- Page 26 Undercounter Dispenser and Icemaker 7UC100A/7UD100A...
- Page 27 Undercounter Dispenser and Icemaker 7UC100A/7UD100A...
- Page 28 SafeCLEAN is a trademark of Follett Corporation. Chewblet and Follett are registered trademarks, and Horizon is a trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00966879R05 Toll free (877) 612-5086 • +1 (610) 252-7301 ©...
