Follett 7UC100A Service Manual

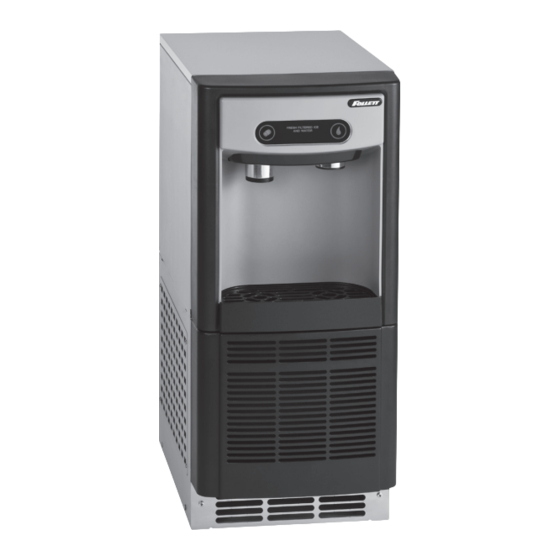

Under counter ice and water dispenser with chewblet ice machine
Hide thumbs Also See for 7UC100A:
Table of Contents

Advertisement

Quick Links

See also: Installation, Operation and Service Manual

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide
carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.

Getting Started

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

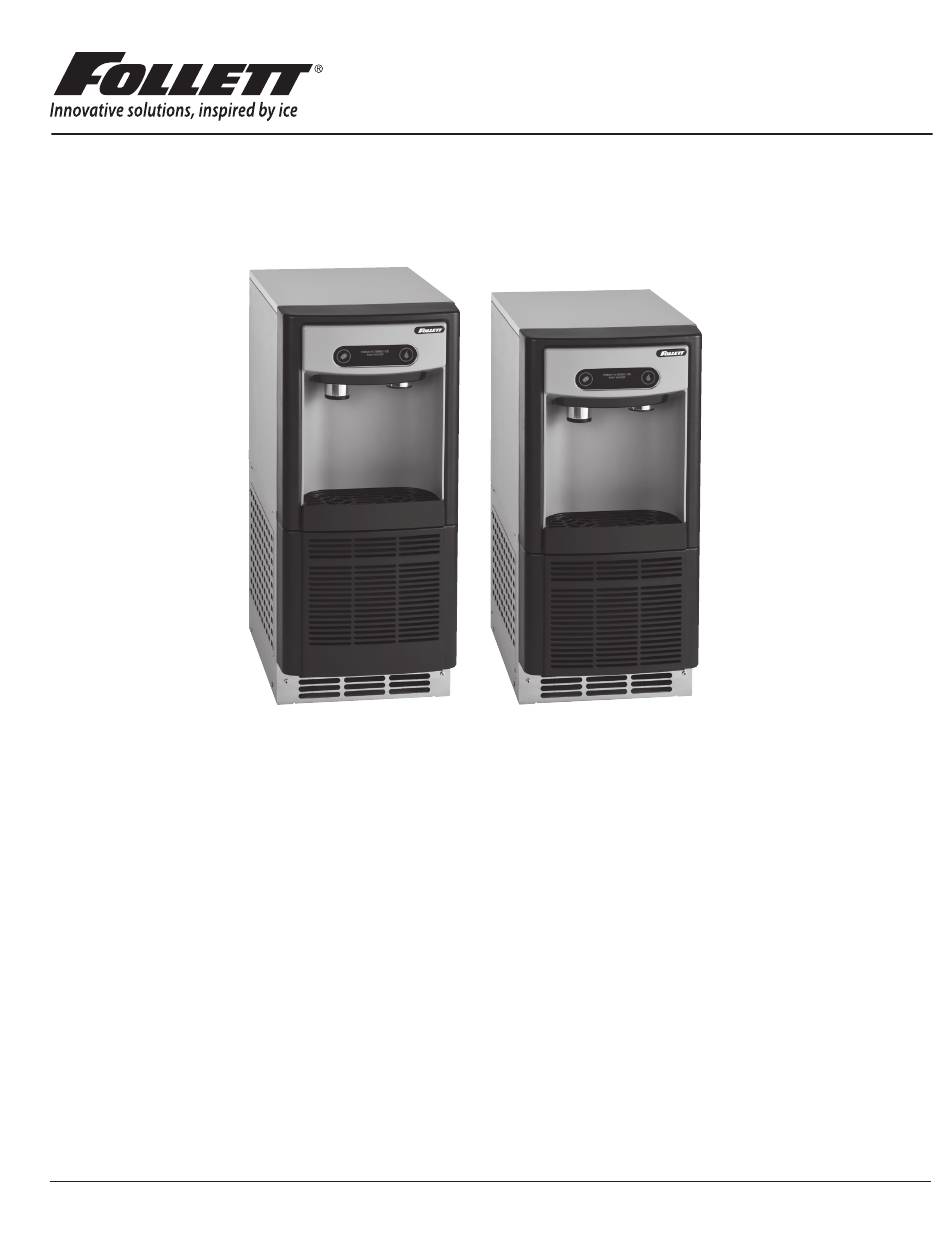

Undercounter Ice and Water Dispenser
Installation, Operation and Service Manual
7UC100A
with Chewblet
7UC100A, 7UD100A
Serial numbers K39469 to K46456
7UD100A
www.follettice.com/servicevideolibrary
Ice Machine
®
Installation and Service Videos:
00966879R11

Advertisement

Table of Contents
loading

Related Manuals for Follett 7UC100A

Summary of Contents for Follett 7UC100A

  • Page 1: Welcome To Follett

    If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
  • Page 2 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 3: Table Of Contents

    Evaporator Assembly ............... 32 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 4: Before You Begin

    Air-cooled Undercounter - ADA Important Safety Information Please read and adhere to the following safety information while installing, using, or servicing your Follett 7 Series Ice Dispenser. 1. Always disconnect power before servicing the dispenser. 2. Ice is slippery. Maintain counters and floors around dispenser in a clean and ice-free condition.

  • Page 5: Specifications

    33.50" (851 mm) 31.50" (800 mm) Unit Shipping Weight 110 lb (50 kg) 110 lb (50 kg) Ambient Information CAUTION! The 7UC100A and 7UD100A are for indoor use only. Maximum* Minimum* Air Temperature 100 F (38 C) 50 F (10 C) †...

  • Page 6: Detailed Drawing

    33.50" (85.1 cm) 31.50" (80 cm) 22.76" (57.8 cm) 20.76" (52.7 cm) 22.69" (57.6 cm) 20.69" (52.6 cm) 2.40" 2.98" (6.1 cm) (7.6 cm) 1/4" MPT power cord water inlet NEMA 5-15 right angle BACK VIEW Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 7: Installation

    4. Install the angle bracket inside the cabinet,18.15" (46.1 cm) from the Fig. 2 toe kick (Fig. 2.1). The bracket prevents the dispenser from being located/pushed beyond the recommended cabinet space depth. Do not attach the bracket to the dispenser. 18.15” (46.1 cm) Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 8 * If your dispenser has the internal water filter option, the water filter must be installed for the dispenser to operate. Because internal components will need to be accessed for both procedures, Follett recommends installing the water filter just prior to initial sanitizing.

  • Page 9: Maintenance/Cleaning Mode

    5. Remove and set aside the front panel (Fig. 6.4). Do not disengage the plug on the back of the User Interface or the tubing at the water dispenser chute (if so equipped). Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 10: Filter Display Indicator Activation

    Filter Display Indicator Activation If you purchased your dispenser with a Follett filter, the filter display indicator Fig. 7 activation has been preset at the factory. If you are using an “after market filter,” an adjustment may be made to activate the “Fresh Filtered Ice &...

  • Page 11: Cleaning And Sanitizing Procedure

    § 7 Series: Follow the directions on the SafeCLEAN Plus packaging to mix 3 gal (11.4 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. 15 Series: Follow the directions on the SafeCLEAN Plus packaging to mix 6 gal (22.7 L) of Follett SafeCLEAN Plus solution.

  • Page 12: Service

    Auger gearmotor has exceeded 0.55A. The HI amps and Time delay LEDs will illuminate, the machine will shut down for one hour, the LEDs will turn off, and the machine will resume normal operation. Service 8000 hour bushing check (call Follett technical service group at (877) 612-5086 or +1 (610) 252-7301). Maintenance Yellow Enter Maintenance Mode by pressing and holding maintenance/clean switch for 5 seconds.

  • Page 13: Evaporator Disassembly

    User Interface. Lift and remove the top panel, set aside (Fig. 16.5). 8. Remove two screws (Fig. 11.6) and remove left side panel. 9. Remove two screws (Fig. 11.7) and remove right side panel. Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 14 § Pull gear motor from auger (Fig. 13.3). § Remove main housing insulation (Fig. 13.4). 13. Remove all traces of Petrol-gel from auger shaft. 14. Remove compression nozzle: Fig. 14 § Loosen hose clamp (Fig. 14.1). § Remove transport tube (Fig. 14.2). Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 15 17. Remove compression nozzle (Fig. 15.3). 18. Remove main housing: Fig. 16 § Disconnect vent line from T fitting (Fig. 16.1). 19. Remove three M6x25 socket head allen screws Fig. 17 (Fig. 17.1). 20. Remove main housing (Fig. 17.2). Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 16: Evaporator Assembly

    5. Install auger (Fig. 19.4). 6. Install main housing: Fig. 20 § Slide main housing onto auger shaft (Fig. 20.1). § Install three M6x25 allen screws (Fig. 20.1). § Connect vent line to T fitting (Fig. 20.1). Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 17 Fig. 22 9. Tighten hose clamp (Fig. 22.2). 10. Install gear motor: Fig. 23 § Install main housing insulation (Fig. 23.1). § Slide gear motor onto auger shaft (Fig. 23.2). § Install two M6x90 allen screws (Fig. 23.3). Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 18 11. Use screwdriver to orient auger shaft to align with motor Fig. 24 shaft keyway (Fig. 24.1). 12. Install key into keyway (Fig. 24.2). 13. Install spacer, ensure that key is captured in slot Fig. 25 (Fig. 25.1) Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 19 14. Insert screwdriver into groove of auger shaft and pry shaft Fig. 26 outwards (Fig. 26.1). 15. Insert retainer into groove (Fig. 26.2), ensure that retainer is aligned with hole in spacer. 16. Install screw and tighten (Fig. 27.1). Fig. 27 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 20: Water Feed Schematic

    § BLUE to BLUE § BLACK to BLACK § WHITE to WHITE § Connect ground wire with ground screw. Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 21: Bin Melt Water/Evaporator Feed/Clean Out System Schematic

    Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 22: Refrigeration Schematic

    Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 23: Condenser Fan Motor Removal

    Condenser Fan Motor Removal Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 24: User Interface Display Identification

    8000 hr bushing check is required. High amps Contact Follett technical service group at (877) 612-5086 or +1 (610) 252-7301. Note: For dispensers after serial number D45191, the phone and wrench will not be illuminated.

  • Page 25: Electrical Wiring Diagram

    Electrical Wiring Diagram Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 26: Exterior

    Exterior Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 27 00957688 Panel, Top Left 00947010 Panel, Top Right 00947028 Panel, Top 00957654 Panel, Rear 00957662 Panel, Lower, 7UC100A Height: 12.0" (304.8 mm) 00932855 Panel, Lower, 7UD100A Height: 10.0" (254 mm) 00932863 Panel, Intake 00947119 Not Shown Cord, 115 VAC 00958058...

  • Page 28: Interior

    Interior Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 29 Condenser Fan, Cord and Hardware 01157288 Control Board with Stand-offs 00958033 Capacitor, Gearmotor 00958041 Sensor, Retainer Hardware Kit 00958066 Relay and Overload 00157387 Heat Exchanger, Kit 01233998 Roller Kit, Set of 4 00924753 Bracket, Stop 00961292 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 30: Bin Assembly

    Bin Assembly Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 31 Ice Chute Assembly 00957670 Ice Transport Tubing with Insulation 00957746 Switch, Shuttle 00957753 Shuttle, Complete Assy 00957761 Lid, Bin Assy 00957779 Bin, Assy 00957787 Auger, Dispense 00957795 Motor, Dispense 00957803 Cap and Insulation, Bin 00957936 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...

  • Page 32: Evaporator Assembly

    Evaporator Assembly Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 33 Cleaning and sanitizing kit, single use 00979856 Not Shown SafeClean Plus liquid, case of 6 01149954 Not Shown SafeClean Plus liquid, case of 24 01149962 Not Shown IMS III sanitizer concentrate, 16 oz 00979674 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 34 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 35 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A...
  • Page 36 Please visit www.follettice.com/support to complete the Warranty Registration form. Should you have any questions, please contact Follett's technical support group at (877) 612-5086 or (610) 252-7301 and we will be happy to assist you.
