Installing The Optical Drive - Dell EMC PowerEdge T150 Installation And Service Manual

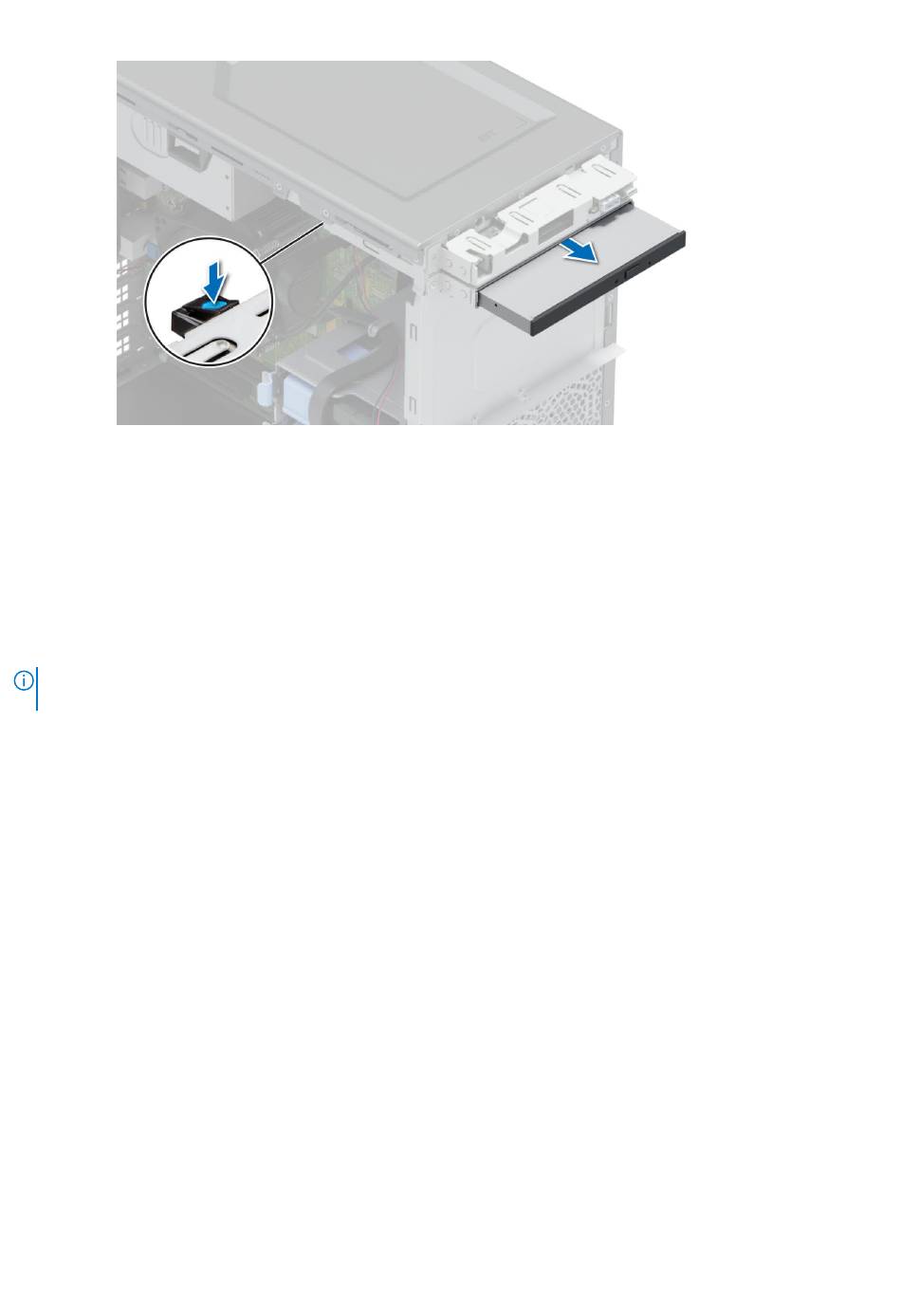

Figure 26. Removing the optical drive
Next steps
Replace the optical drive

Installing the optical drive

Prerequisites
NOTE: Only slim 9.5 mm SATA DVD-ROM drive or DVD+/-RW drive can be installed in your system. External optical drives
can be connected through USB ports.
1. Follow the safety guidelines listed in
2. Follow the procedure that is listed in
3. Remove the front bezel.
Steps
1. Align the optical drive with the slot in the optical drive cage.
2. Slide the optical drive into the slot until the release tab snaps in place.
38 Installing and removing system components
or install the optical drive
Safety instructions.
Before working inside your
fillers.
system.
