Dell Precision T1600
Setup and Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.

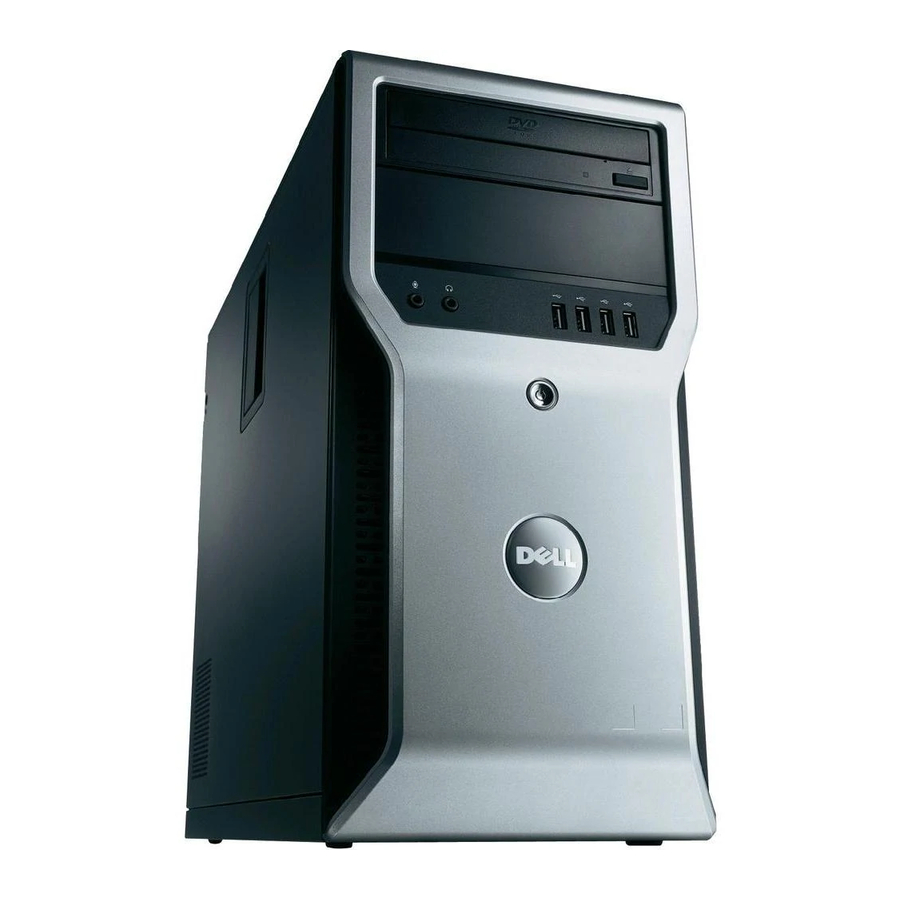

Front And Back View
Figure 1. Front And Back View
1. optical-drive bay
2. headphone connector
3. microphone connector
4. hard-drive activity light
5. optical drive (optional)
6. optical drive eject button
7. diagnostic lights (4)
8. USB 2.0 connectors (4)
9. power button, power light
10. power-supply diagnostic light
11. power-supply diagnostic button
12. power connector
Regulatory Model: D09M
Regulatory Type: D09M001
2011 – 02

Advertisement

loading

Related Manuals for Dell Precision T1600

Summary of Contents for Dell Precision T1600

  • Page 1 Dell Precision T1600 Setup and Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Front And Back View Figure 1. Front And Back View 1. optical-drive bay 7. diagnostic lights (4) 2. headphone connector 8.

  • Page 2: Back Panel

    WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/regulatory_compliance. NOTE: Some devices may not be included if you did not order them.
  • Page 3 Figure 4. VGA Adapter Figure 5. VGA To DisplayPort Adapter 2. Connect the USB keyboard or mouse (optional). Figure 6. USB Connection 3. Connect the network cable (optional). Figure 7. Network Connection 4. Connect the modem (optional). Figure 8. Modem Connection...

  • Page 4: Specifications

    Figure 10. Turning On Power Specifications NOTE: The following specifications are only those required by law to ship with your computer. For a complete and current listing of the specifications for your computer, go to support.dell.com. System Information Chipset Intel C206 chipset...
  • Page 5 Video Integrated video memory Up to 1.7 GB shared video memory (Microsoft Windows Vista and Windows Memory Memory module connector: four DIMM slots Memory module capacity 1 GB, 2 GB, and 4 GB Type ECC/Non–ECC DDR3, 1333 MHz Minimum memory 1 GB Maximum memory: 16 GB...
  • Page 6 Control Lights And Diagnostic Lights Service Manual diagnostic lights, see the available on the Dell Support website at support.dell.com/manuals. Power Coin-cell battery 3 V CR2032 lithium coin cell Voltage 100 VAC–240 VAC, 50 Hz–60 Hz, 5.0 A Wattage 265 W/320 W...

  • Page 7: Finding More Information And Resources

    Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
