AES global Styluscom Video Manual page 4

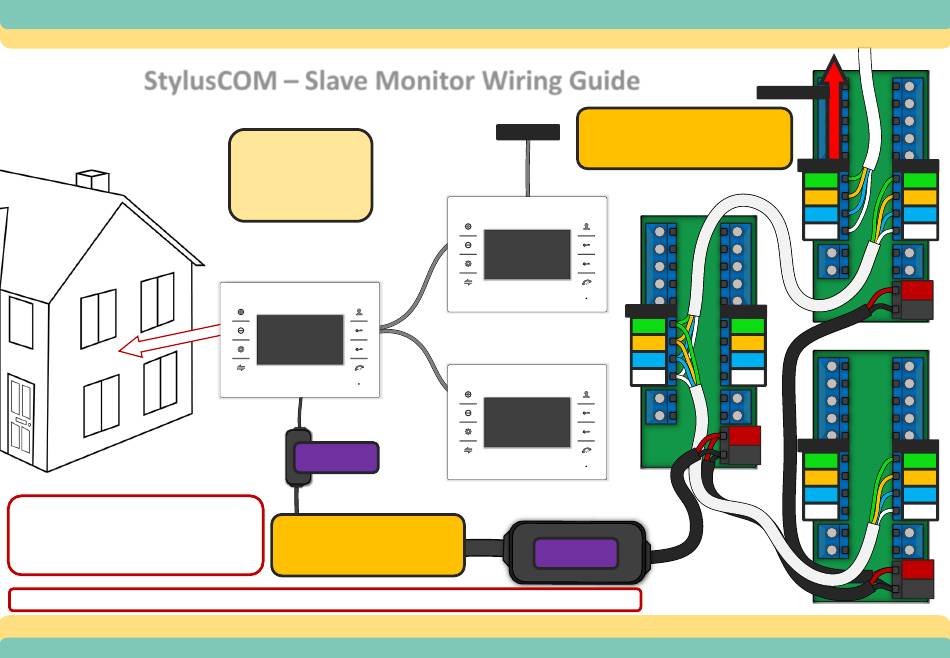

StylusCOM – Slave Monitor Wiring Guide
Monitor Power Supply Distances:
CAT5 Cable – 8m
1.5mm Cable – 15m
(MAX DISTANCE BETWEEN MONITORS)
KEEP POWER CABLE BETWEEN MONITORS AS SHORT AS POSSIBLE – SEE
4 MONITORS
IN TOTAL :
1 MASTER
3 SLAVES
MASTER
PSU #2
(THE MASTER MONITOR MUST ALREADY BE SET UP BEFORE TESTING SLAVES)
Second power supply is used to power all
of the monitors indoors. Power between
monitors will be shared using 1.0mm
cable.
Wire the SLAVE OUT terminals to the SLAVE IN
MONITOR 4 terminals of the next monitor.
SLAVE OUT can also be split 2-ways as shown
SLAVE
SLAVE OUT
SLAVE
PSU #2
POWER CABLE ON PAGE 1
TO MONITOR 4
in the diagram below.
SLAVE OUT
DATA
VIDEO
MASTER
AUDIO
GND
SLAVE IN
DATA DATA
VIDEO VIDEO
AUDIO AUDIO
GND GND
24v
SLAVE OUT
0v
DATA
VIDEO
AUDIO
GND
1.5mm POWER CABLE
RECCOMENDED
BETWEEN EACH
MONITOR
SLAVE
SLAVE IN
DATA
VIDEO
AUDIO
GND
24v
0v
SLAVE
SLAVE IN
DATA
VIDEO
AUDIO
GND
24v
0v
