StylusCOM Video
* ALWAYS FULLY TEST THE UNIT ON SITE BEFORE INSTALLATION TO AVOID RESTOCKING FEES *

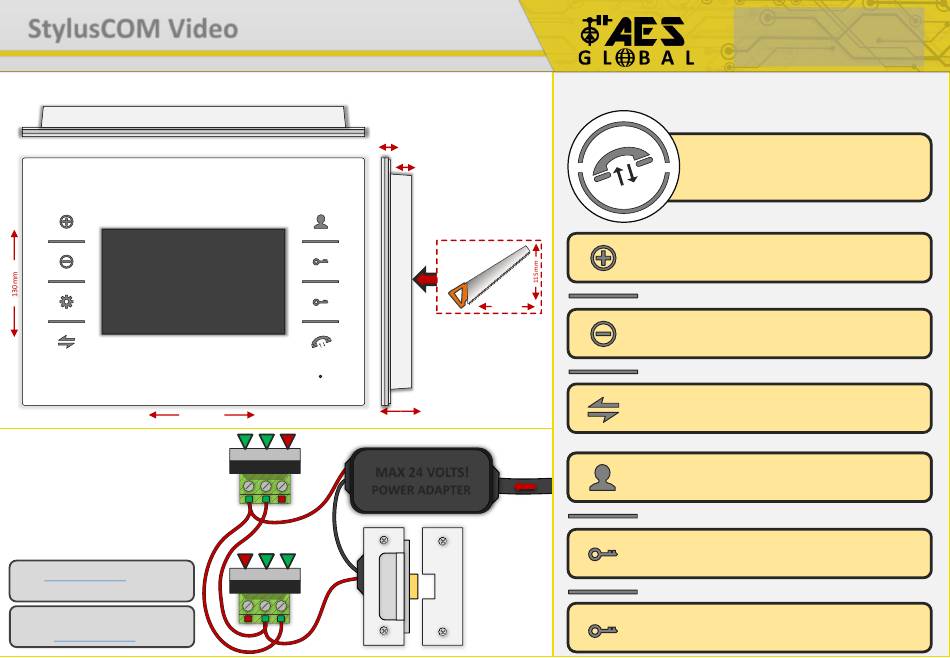

INFORMATION ABOUT YOUR VIDEO MONITOR
TOP
FRONT
180mm
AC/DC STRIKE LOCK
WIRING EXAMPLE
Follow this method when using a Strike Lock with
the system. If used it will mean that if a relay in
either the Call Station or optional AES Keypad is
triggered it will temporarily allow the door/gate
to release.
Do you require a custom wiring diagram for your site? Please send all
requests to
diagrams@aesglobalonline.com
and we will do our best
to provide you with a supplement diagram suitable for your chosen
equipment.
We are constantly using your customer feedback to enhance all of
our guides / learning material for installers.
If you have any suggestions regarding this please send any
suggestions to
feedback@aesglobalonline.com
- Hardwired System
9mm
S
I
D
E
25mm
* STRIKE LOCK PSU SOLD SEPARATELY *
+
N/ O
| C |
N/ C
CALL STATION
MAX 24 VOLTS!
POWER ADAPTER
-
N/ C
| C |
N/ O
AES KEYPAD
HOW TO USE THE STYLUSCOM MONITOR
Front depth
16mm
Rear depth
165mm
CUT DIMENSIONS
Total depth
MAINS
POWER
STRIKE
LOCK
STILL HAVING TROUBLE?
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
WWW.AESGLOBALONLINE.COM
ANSWER CALL BUTTON
Tap to answer incoming call.
(tap again to hang up call)
INCREASE IN CALL VOLUME
Tap to increase volume of monitor.
DECREASE IN CALL VOLUME
Tap to decrease volume of monitor.
TRANSFER THE CALL
Tap to transfer the call to other monitor(s).
MONITORING MODE
MONITORING MODE
Tap to monitor the intercom video & audio.
Tap to listen to the intercom microphone.
ACTIVATE RELAY 1
1
Tap to activate Relay 1.
ACTIVATE RELAY 2
2
Tap to activate Relay 2.
our website:
