Connectors, Adapters and Cable Connections
Connector Assignments
50-pin Serial Port Connector

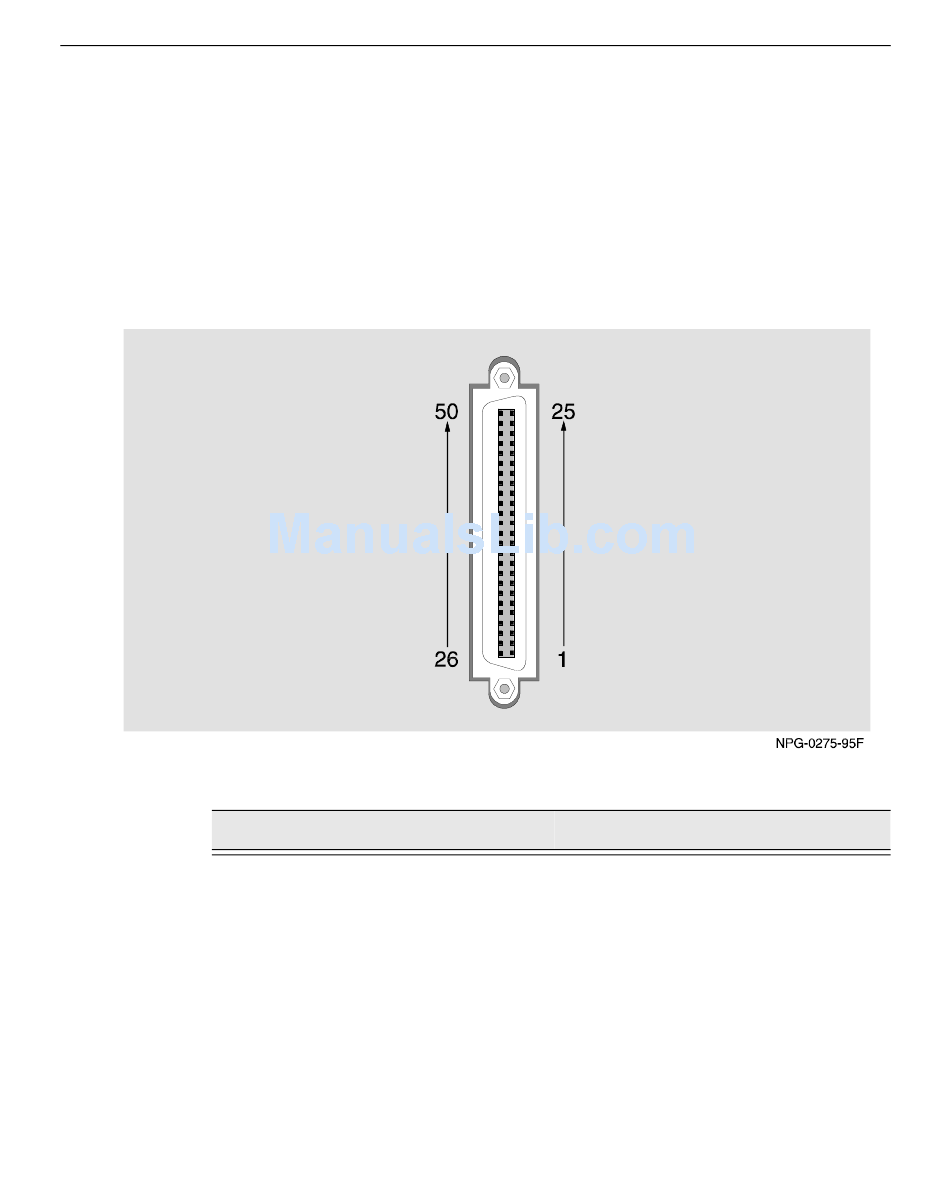

Figure B-1 shows the 50-pin serial port connector and its pin assignments.
Table B-1 describes the pin assignments.
Pin
1
3
5
7
9
B-2
Figure B-1. 50-pin Connector
Table B-1. 50-pin Connector Assignments
Assignment
1
Code Ground
N/C
TX Data A
TX Data A
CTS A
Pin
Assignment
2
Cable_ID<1>
4
DSR A
6
DCD A
8
RTS A
10
RX Data A
Continued on the next page . . .
