Commell ES-270 User Manual

Etx cpu module
Hide thumbs

Advertisement

Quick Links

Download this manual

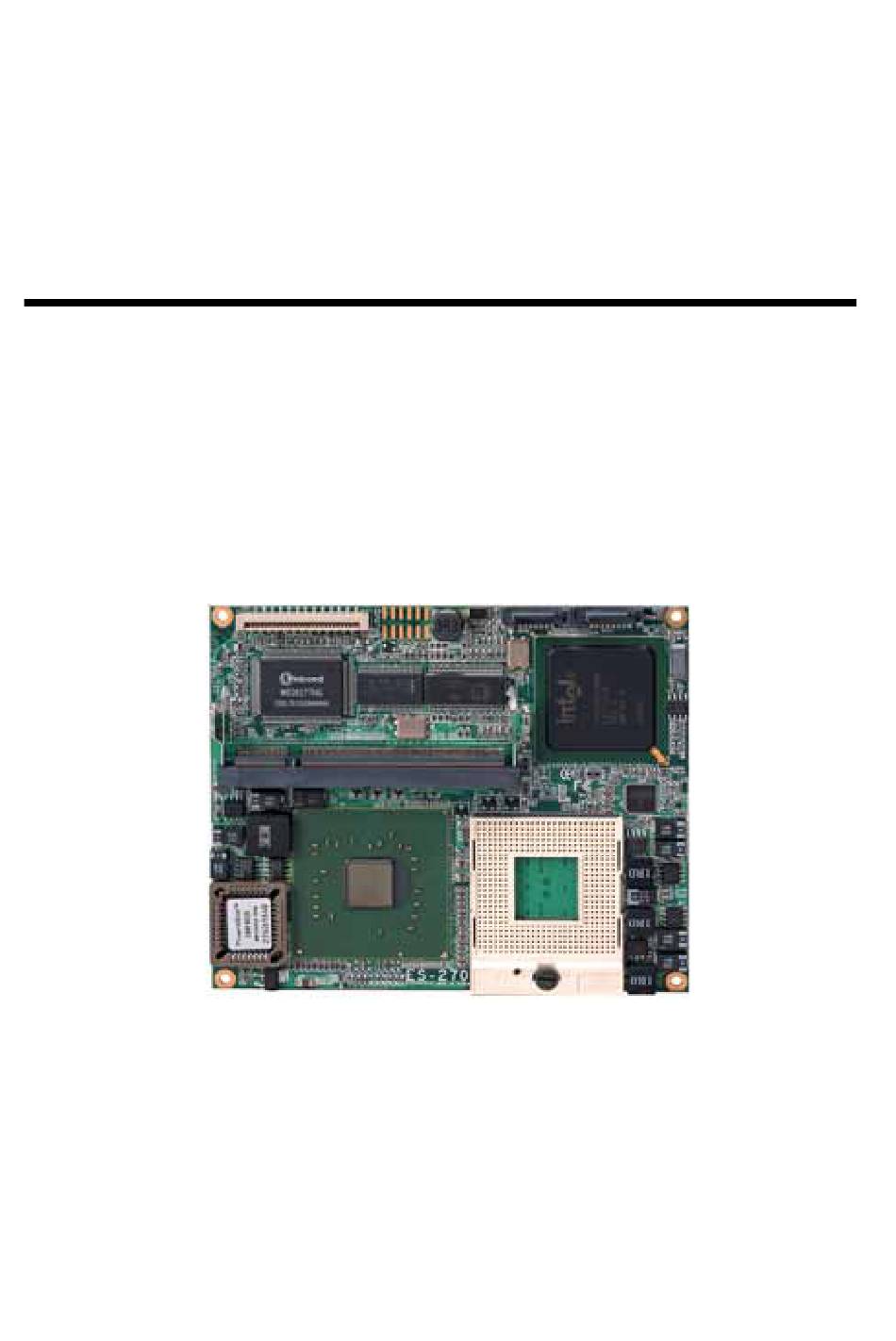

ES-270
ETX CPU module
User's Manual
Edition 1.0
2006/09/04

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES-270 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell ES-270

Summary of Contents for Commell ES-270

  • Page 1 ES-270 ETX CPU module User’s Manual Edition 1.0 2006/09/04...
  • Page 2 ES-270 User’s Manual Copyright Copyright 2006. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    ES-270 User’s Manual Packing List Please check the package before you starting setup the system Hardware: ES-270 ETX CPU Module x 1 Cable Kit: 26-pin slim type floppy cable x 1 Serial ATA ribbon cable x 2 Head Sink and four screws Other Accessories: Divers CD (including User’s Manual) x 1...
  • Page 4 ES-270 User’s Manual Index Chapter 1 <Introduction> ..................7 1.1 <Product Overview>................. 7 1.2 <Product Specification> ................8 1.3 <Mechanical Drawing>................10 1.4 <Block Diagram>..................11 Chapter 2 <Hardware Setup>................12 2.1 <Connector Location>................12 2.2 <Connector Reference>................. 13 2.2.1 <Internal Connector>..............13 2.3 <CPU and Memory Setup>...
  • Page 5 ES-270 User’s Manual C.2<Flash Method>..................31 Appendix D <System Resources>…………………………………………….……32 Contact Information.................... 36...
  • Page 6 ES-270 User’s Manual (The Page is Left For Blank)
  • Page 7 Chapter 1 <Introduction> 1.1 <Product Overview> ES-270 is the new generation of the ETX CPU module, with supporting Intel Core Duo/Core Solo processors for 533/667MHz front side bus, Intel 945GM and ICH7-M chipset, integrated GMA950 graphics, DDR2 SO-Dimm SDRAM, REALTEK AC97 Audio and serial ATA with provide the economical embedded platform.
  • Page 8 ES-270 User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor ETX CPU module Intel® Core Duo/Core Solo processors Package type: FC-PGA478 Front side bus: 533/667MHz Memory 1 x 200-pin DDR2 SoDIMM SDRAM up to 2GB Unbufferred, none-ECC memory supported only Chipset Intel®...
  • Page 9 ES-270 User’s Manual Introduction Expansive Interface 4 PCI bus master interface Power and Environment Power 5V, 5Vstandby Requirement Dimension 114mm x 95mm Temperature Operating within 0 ~ 60℃ (32 ~ 140℉) Storage within -20 ~ 85℃ (-4 ~ 185℉) Ordering Code...
  • Page 10 ES-270 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing...
  • Page 11 ES-270 User’s Manual Introduction 1.4 <Block Diagram> Intel Yonah Processor 1 x 200-pin SoDIMM DDRII 400/533/667 Intel GMA950 Graphics Up to 2GB LVDS ＆ CRT 945GM CompactFlash＆IDE 2 x SATA AC97 ALC655 4 x USB2.0 ports ICH7-M W83627THG 1 x LPT port...
  • Page 12 ES-270 User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA1/2 DDRII Connector Location...
  • Page 13 ES-270 User’s Manual Hardware Setup 2.2 <Connector Reference> 2.2.1 <Internal Connector> Connector Function Remark DDRII 200-pin DDR2 SDRAM So-DIMM Standard 26-pin slim type floppy connector Slim SATA1/2 7-pin Serial ATA connector Standard Connector Reference...
  • Page 14 ES-270 User’s Manual Hardware Setup 2.3 <CPU and Memory Setup> 2.3.1< CPU> The board comes with the socket479 for Intel Core Duo/Core Sole processors, it supports new generation of Intel Core Duo processors with 533/667MHz of front side bus and 2MB L2 cache. Please follow the instruction to install the CPU properly.
  • Page 15 ES-270 User’s Manual Hardware Setup 2.3.2 <Memory> The board supports one 200-pin DDRII So-DIMM SDRAM and up to 2GB of capacity, only non-ECC, unbuffered memory is supported. DDRII CPU & Memory Setup...
  • Page 16 ES-270 User’s Manual Hardware Setup 2.4 <Enhanced IDE Interface > The module supports one enhanced IDE interface, dual channel for 2 ATAPI devices with ATA33/66/100. 2.5 <Serial ATA Interface> Based on Intel ICH7-M, the board provides two Serial ATA interfaces with up to 150MB/s of transfer rate.
  • Page 17 ES-270 User’s Manual Hardware Setup 2.6 <Floppy Port> The board provides a slim type floppy port; please use the 26-pin ribbon cable in the package to connect the floppy device. Floppy rear side Lift up this plastic bar Slot the cable in (Blue paste for outside)
  • Page 18 ES-270 User’s Manual Hardware Setup 2.7 <LAN Interface> The board provides 10/100Mbps LAN interfaces with Intel 82562GT PHY controller, and compliant with standard IEEE 802.3 Ethernet interface for 100BASE-TX. 2.8 <Onboard Display Interface> Based on Intel 945GM chipset with built-in GMA (Graphic Media Accelerator) 950 graphics.
  • Page 19 ES-270 User’s Manual Hardware Setup 2.9<USB2.0 Interface> Based on Intel ICH7-M, the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller Intel ICH7-M Transfer Rate Up to 480Mb/s PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically.
  • Page 20 ES-270 User’s Manual (This Page is Left For Blank)
  • Page 21 ES-270 User’s Manual System Configuration Chapter 3 <System Configuration> 3.1 <Video Memory Setup> Based on Intel® 945GM chipset with GMA (Graphic Media Accelerator) 950, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 224MB.
  • Page 22 ES-270 User’s Manual System Configuration Notice: The On-Chip Frame Buffer Size would be included in the Fixed Memory. Please select the memory size according to this table. SBIOS Options System Memory Pre-Allocated Fixed DVMT Fixed+DVMT Memory 1MB(1) 32MB 32MB 128MB...
  • Page 23 ES-270 User’s Manual (This Page is Left for Blank)
  • Page 24 ES-270 User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 25 ES-270 User’s Manual (This Page is Left for Blank)
  • Page 26 ES-270 User’s Manual ETX connector Assignment Appendix A <ETX connector Assignment> Connector A PCICLK3 PCICLK4 -SERR -GPERR PCICLK2 PCICLK1 -PME -USB2 -REQ3 -GNT3 -LOCK -DEVSEL -GNT2 +3.3V -TRDY -USB3 -REQ2 -GNT1 -IRDY -STOP -REQ1 +3.3V -FRAME -USB2 -GNT0 AD16 -CBE2...
  • Page 27 ES-270 User’s Manual ETX connector Assignment Connector C HSYNC -STB -AFD VSYNC DDCK -DETECT DDDA IRRX -ERR LCD16 LCD18 IRTX LCD17 LCD19 RXD2 -INIT LCD13 LCD15 -RTS2 LCD12 LCD14 -DTR2 -SLIN -DCD2 LCD8 LCD11 -DSR2 LCD9 LCD10 -CTS2 LCD5 LCD1...
  • Page 28 ES-270 User’s Manual ETX connector Assignment Connector D -PDIOR 5V_SB PWRGD -PDIOW PS_ON SYSPKR PDDREQ PW_BN BATT PDD15 LINK0 PDD0 ACTLCD0 PDD14 SPDLED0 PDD1 PDD13 -OC0 PDD2 PDD12 SMBCLK SMBDATA PDD3 PDD11 -SATA_LED PDD4 -PCS3 PDD10 -PCS1 PDD5 PDA2 PDD9...
  • Page 29 ES-270 User’s Manual I/O Port Pin Assignment Appendix B<I/O Port Pin Assignment> B.1 <Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DRV0 DSKCHG DRV1 MTR1 MTR0 STEP Ground WRITE DATA Ground WRITE GATE TRACK 0 WRPTR Ground RDATA- Ground B.2 <Serial ATA Port>...
  • Page 30 ES-270 User’s Manual (This Page is Left for Blank)
  • Page 31 ES-270 User’s Manual Flash BIOS Appendix C <Flash BIOS> C.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com...
  • Page 32 ES-270 User’s Manual System Resources Appendix D <System Resources> D1.<I/O Port Address Map> System IRQ Resources...
  • Page 33 ES-270 User’s Manual D2.<Memory Address Map> Memory Address Map...
  • Page 34 ES-270 User’s Manual System Resources D3.<System IRQ Resources> System IRQ Resources...
  • Page 35 ES-270 User’s Manual (This Page is Left for Blank) Memory Address Map...

  • Page 36: Contact Information

    Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division Contact Information...
