Summary of Contents for Commell HS-874P

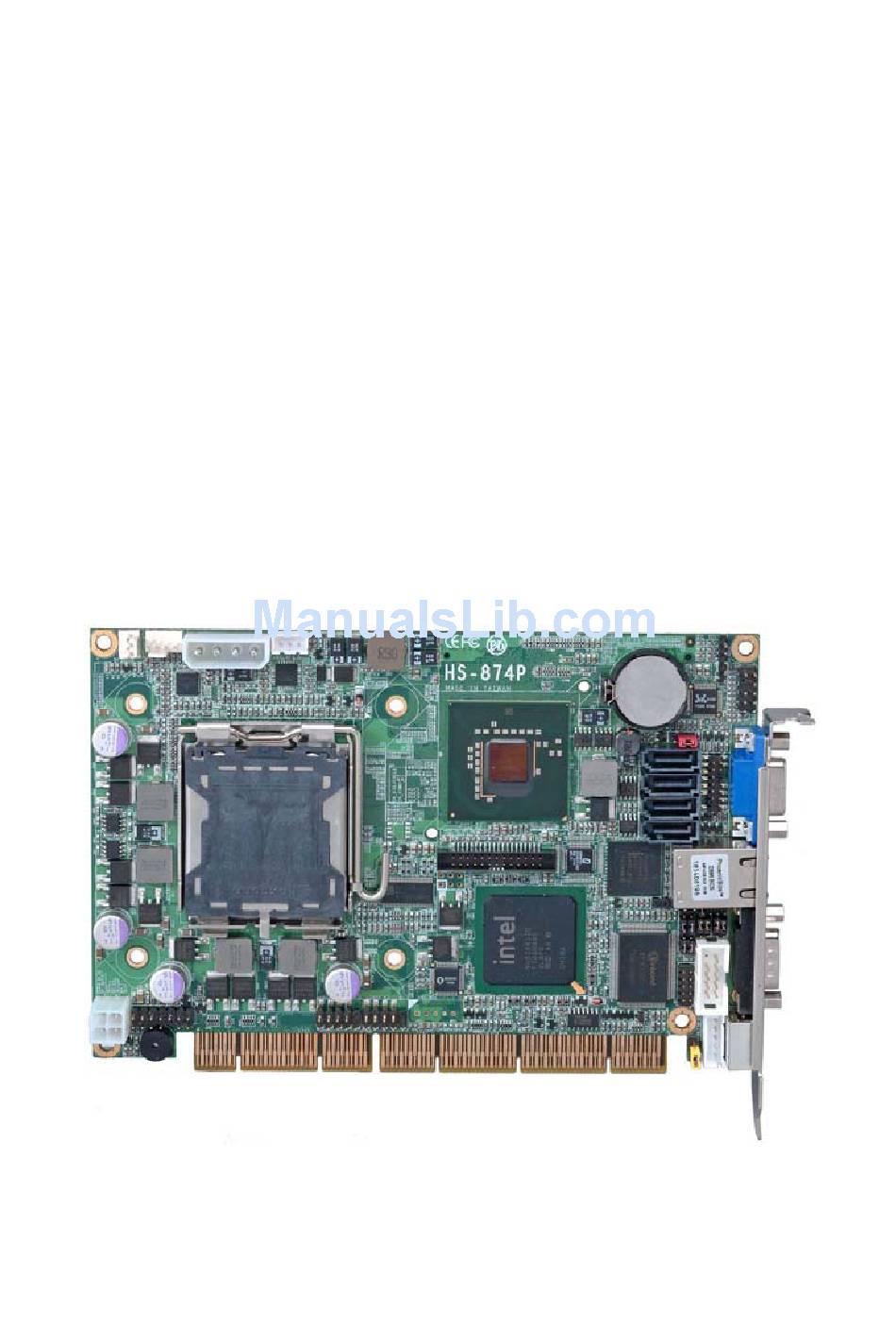

- Page 1 HS-874P Half-size PISA CPU Card User’s Manual Edition: 1.0 2008/06/10...
- Page 2 HS-874P User’s Manual Copyright Copyright 2008. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Raid Driver Disk For Windows Xp
HS-874P User’s Manual Packing List: Please check the package material before you install the system. Hardware: HS-874P Single Board Computer x 1 Cable Kit: PS/2 Keyboard & Mouse Cable 4-pin to 3-pin ATX Cable x 1 SATA Cable x 2... -
Page 4: Table Of Contents
HS-874P User’s Manual Index Chapter 1 <Introduction>..........6 1.1 <Product Overview> ................6 1.2 <Product Specification> ................ 7 1.3 < Mechanical Drawing > ................ 9 1.4 <Block Diagram>.................. 11 Chapter 2 <Hardware Setup> ........13 2.1.1 <Connector Location> ..............13 2.2 <Connector Reference>............... 15 2.2.1 <Internal Connector>... - Page 5 HS-874P User’s Manual 3.2 <SATA RAID Configuration> ............... 38 3.3 <Audio Configuration> ................ 42 3.4 <Video Memory Setup>................ 43 Chapter 4 <BIOS Setup>..........45 ............46 (This Page is Left for Blank) A.1 <Serial ATA Port>................. 47 A.2 <Serial Port>..................47 A.4 <LAN Port> ................... 48 A.5 <AT Keyboard Port>...
-
Page 6: Chapter 1

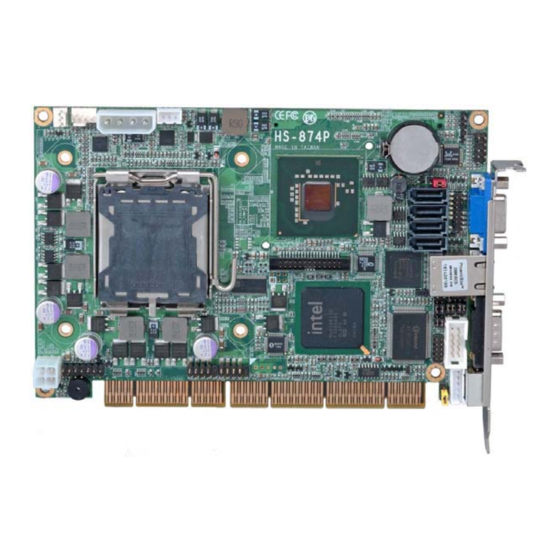

Chapter 1 <Introduction> 1.1 <Product Overview> The HS-874P is an all-in-one single board computer with PISA bus supporting Intel Core2 Quad/ Core 2 Duo processor for 800/1066/1333 MHz front side bus, Intel Q35 and ICH9DO chipset, integrated GMA3100 graphics, DDR2 SO-DIMM memory, Realtek ALC888 HD Audio, Serial ATA and one Intel 82573L Gigabit LAN. -
Page 7: Product Specification
HS-874P User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor Half size PISA bus CPU card Support Intel® Core 2 Quad/ Core 2 Duo processor Package type: LGA775 Front side bus: 800/1066/1333MHz Memory DDRII 667/800 MHz SO-DIMM up to 2GB Chipset Intel®... - Page 8 HS-874P User’s Manual Introduction Audio Interface Chipset Intel® ICH9DO with Realtek ALC888 HD Audio Intel High Definition Audio compliance Interface 2 channels sound output Connector Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for CD-IN Power and Environment Power +5V, +12V power required, optional 5USB for ATX...
-
Page 9: Mechanical Drawing
HS-874P User’s Manual Introduction 1.3 < Mechanical Drawing > Mechanical Drawing... - Page 10 HS-874P User’s Manual Introduction <Motherboard Dimension> 185 mm 127 mm 28.6 mm Block Diagram...
-
Page 11: Block Diagram
HS-874P User’s Manual Introduction 1.4 <Block Diagram> Intel Core 2 Quad Processor 1 x 200-pin SO-DIMM DDR2 667/800 MHz Intel GMA3100 Graphics up to 2GB CH7308A LVDS Intel® Q35 CH7307C 4 x SATA HD Audio 4 x USB2.0 ports ICH9DO... - Page 12 HS-874P User’s Manual (This Page is Left for Blank)
-
Page 13: Chapter 2
HS-874P User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1.1 <Connector Location> DC_IN SYSFAN CPUFAN CN_IN CN_PS CN_AUDIO CN_VGA SATA1/2/3/4 CN 12V CN_INV CN_ATKB CN_USB1/2 JFRNT CN_IR JVLCD CN_LVDS CN_DVI Connector Location... - Page 14 HS-874P User’s Manual Hardware Setup SO-DIMM COM1 RJ45 Connector Location...
-
Page 15: Connector Reference
HS-874P User’s Manual Hardware Setup 2.2 <Connector Reference> 2.2.1 <Internal Connector> Connector Function Remark DIMM 200 –pin DDR2 SDRAM 200-pin DDR2 SO-DIMM Standard slot S_ATA1/2/3/4 7-pin Serial ATA connector Standard DC_IN 4-pin AT power supply connector Standard CN_12V 4-pin +12V additional power supply connector... -
Page 16: Jumper Reference
HS-874P User’s Manual Hardware Setup 2.3 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD LCD Panel Voltage Setting JCSEL1/2 COM2 RS232/422/485/IR mode setting JP1/JP2 COM PORT Voltage support JRTC JCSEL1 JP2/JP1 JVLCD JCSEL2 Jumper Reference... - Page 17 HS-874P User’s Manual Hardware Setup Jumper: JP1 (COM 1) Type: onboard 3 x 2-pin header Power Mode Pin1 with 5V signal 1-3,4-6 2-4,3-5 Pin9 with 12V signal Default setting: 3-5, 4-6 Jumper: JP2 (COM 2) Type: onboard 3 x 2-pin header...
-
Page 18: Cpu And Memory Setup
Hardware Setup 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> HS-874P has a LGA775 CPU socket onboard; please check following steps to install the processor properly. Attention If HS-874P needs RMA please Keep CPU socket cover on the CPU Socket. -
Page 19: Memory Setup
HS-874P User’s Manual Hardware Setup 2.4.2 <Memory Setup> HS-874P has one 200-pin DDR2 SO-DIMM support up to 2GB of memory capacity. The memory frequency supports 667/800 MHz. Only Non-ECC memory is supported. SO-DIMM Memory Setup... -
Page 20: Cmos Setup
HS-874P User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 21: Serial Ata Interface
HS-874P User’s Manual Hardware Setup 2.6 <Serial ATA interface> Based on Intel ICH9DO, the board provides four Serial ATA interfaces with up to 300MB/s of transfer rate SATA1/2/3/4 2.7 <LAN Interface> The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 22: Analog Vga Interface
HS-874P User’s Manual Hardware Setup 2.8 <Onboard Display Interface> Based on Intel Q35 chipset with built-in GMA (Graphic Media Accelerator) 3100 graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LCD or DVI. -
Page 23: Lvds Display> (Hs-874Px Only)
HS-874P User’s Manual Hardware Setup 2.8.2 <LVDS Display> (HS-874PX only) The board provides one 40-pin LVDS connector for 18-bit dual channel panels, supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. - Page 24 HS-874P User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V LCDVCC (3.3V) LCDVCC (5V) LCDVCC (+12V) ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V...
- Page 25 HS-874P User’s Manual Hardware Setup To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
- Page 26 HS-874P User’s Manual Hardware Setup After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form Single channel Dual channel Output format Output format...
- Page 27 HS-874P User’s Manual Hardware Setup 2.8.3 <DVI Display> (HS-874PD only) The board provides optional DVI-D interface with Intel Q35, compliant with DVI 1.0 standard. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.0mm) Pin Number Assignment Pin Number Assignment...
-
Page 28: Onboard Audio Interface
HS-874P User’s Manual Hardware Setup 2.9 <Onboard Audio Interface> The board provides the onboard HD 2-channel audio interface with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch-2.54mm) Description Description LIN_L Ground LIN_R MIC 2 MIC 2 Ground... -
Page 29: Usb2.0 Interface
HS-874P User’s Manual Hardware Setup 2.10 <USB2.0 Interface> Based on Intel ICH9DO, the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller ICH9DO Transfer Rate Up to 480Mb/s Output Voltage 500mA... - Page 30 HS-874P User’s Manual Hardware Setup Connector: CN_IR Type: 5-pin header for SIR Port Description IRRX Ground IRTX Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB Port Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically.
-
Page 31: Serial Port Jumper Setting
HS-874P User’s Manual Hardware Setup 2.11 <Serial Port Jumper Setting > The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: CN_COM2 Type: 10-pin (5 x 2) 2.54mm x 2.54mm-pitch header for COM2... -
Page 32: Power And Fan Installation
HS-874P User’s Manual Hardware Setup JCSEL1 CN_COM2 JCSEL2 2.12 <Power and Fan Installation> The board comes with a 4-pin AT and 4pin 12V power connector for powering the board, three fan connectors for Northbridge, CPU and system. The board also provides a 3-pin ATX function connector. -
Page 33: Fan Connectors
HS-874P User’s Manual Hardware Setup 2.12.2 <Fan Connectors> Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection Fan Control Connector: SYSFAN Type: 3-pin fan wafer connector Pin Description Description Pin Description Ground +12V Fan Speed Detection... - Page 34 HS-874P User’s Manual Hardware Setup 2.13 <GPIO Interface> The board provides a 12-pin General Purpose I/O interface, with programmable 8-bit I/O (4-bit input & 4-bit output). Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground Ground GP10...
-
Page 35: Switch And Indicator
HS-874P User’s Manual Hardware Setup 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 36 HS-874P User’s Manual (This Page is Left for Blank)
-
Page 37: Chapter 3
HS-874P User’s Manual Chapter 3 <System Configuration> 3.1 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -
Page 38: Sata Raid Configuration
HS-874P User’s Manual 3.2 <SATA RAID Configuration> The board integrates Intel® ICH9DO with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 39 HS-874P User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 ,please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
- Page 40 HS-874P User’s Manual 2. Select Actions to Create RAID Volume Rename the Volume name Select RAID Level as 0 Left as default...
- Page 41 HS-874P User’s Manual 3. Please select two hard drives to prepare to set the RAID volume 4. Specify the Volume size Tune this bar to specify the volume size, if you specify the volume size lower than maximum, you can create a second volume for another RAID set.
-
Page 42: Audio Configuration
HS-874P User’s Manual 3.3 <Audio Configuration> The board integrates Intel® ICH9DO with REALTEK® ALC888 code. It can support 2-channels sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager. -
Page 43: Video Memory Setup
HS-874P User’s Manual BIOS Setup 3.4 <Video Memory Setup> Based on Intel® Q35 chipset with GMA (Graphic Media Accelerator) 3100, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory be triggered up to 384MB. - Page 44 HS-874P User’s Manual System Configuration be selected as MAX. On-Chip Fixed DVMT Total System Frame Memory Memory Graphic Memory Buffer Size Size Size Memory 128MB 128MB 128MB 128MB 256MB ~ 511MB 128MB 128MB 128MB 128MB 128MB 128MB 256MB 256MB 128MB...
-
Page 45: Chapter 4
HS-874P User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. -
Page 46: (This Page Is Left For Blank)
HS-874P User’s Manual (This Page is Left for Blank) -
Page 47: Serial Ata Port
HS-874P User’s Manual A.1 <Serial ATA Port> Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on I/O l bracket Description Description Ground A.3 <VGA Port>... -
Page 48: Lan Port
HS-874P User’s Manual A.4 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3- A.5 <AT Keyboard Port> Connector: CN_ATKB Type: 5-pin box header Description Ground DATA A.6 <PS/2 Keyboard & Mouse Port>... - Page 49 HS-874P User’s Manual (This Page is Left for Blank)
-
Page 50: Appendix B
HS-874P User’s Manual Flash BIOS Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com... -
Page 51: Appendix C
HS-874P User’s Manual System Resources Appendix C <System Resources> C1. <I/O Port Address Map> I/O Port Address Map... - Page 52 HS-874P User’s Manual System Resources I/O Port Address Map...
- Page 53 HS-874P User’s Manual Programming GPIO’s C2. <Memory Address Map> Programming GPIO’s...
- Page 54 HS-874P User’s Manual Watch Dog timer Setting C3. <System IRQ Resources> Programming GPIO’s...
-
Page 55: Appendix D
HS-874P User’s Manual Programming GPIO’s Appendix D <Programming GPIO’s> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0...GPIO7 bit0……bit7 -o 2E 87 ;enter configuration... -
Page 56: Appendix E
HS-874P User’s Manual Watch Dog timer Setting Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. - Page 57 HS-874P User’s Manual (This Page is Left for Blank)
-
Page 58: Contact Information
HS-874P User’s Manual Contact Information Contact Information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business.
