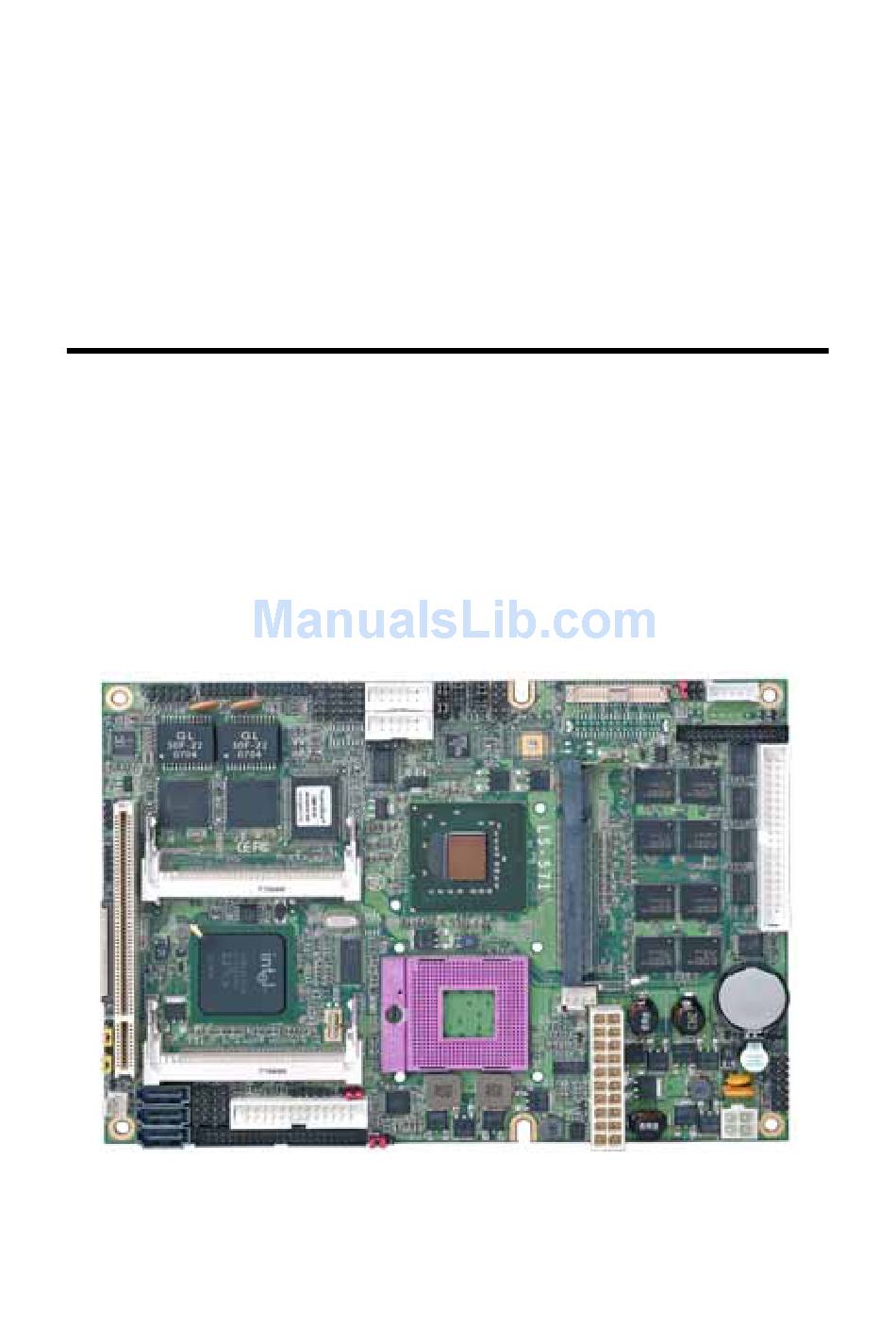

- Page 1 LS-571 5.25” Embedded Miniboard User’s Manual Edition 1.3 2009/7/20...
- Page 2 LS-571 User’s Manual Copyright Copyright 2007, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LS-571 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LS-571 Embedded Miniboard x 1 Cable Kit: Floppy Cable x 1 ATA33 IDE Cable x1 SATA Cable x 2 Printer Port Cable x 1... - Page 4 LS-571 User’s Manual DC Power Cable x 1 LAN Connector x1 & LAN Cable x 2 DVI VGA Cable x 1 (LS-571TXD LS-571TXD2) Quad COM ports DB9 male Cable x 1 DVI module with DVI Cable x 1 (LS-571TXD LS-571TXD2)
- Page 5 LS-571 User’s Manual Index Chapter 1 <Introduction> ..................7 1.1 <Product Overview>..................7 1.2 <Product Specification>................8 1.3 <Mechanical Drawing>................10 1.4 <Block Diagram>..................11 Chapter 2 <Hardware Setup>................12 2.1 <Connector Location> ................12 2.2 <Jumper Location & Reference>.............13 2.3 <Connector Reference> ................15 2.3.1 <Internal Connectors> ..............15 2.4 <CPU and Memory Setup>...
- Page 6 LS-571 User’s Manual Chapter 3 <System Setup> ..................36 3.1 <Audio Configuration>................36 3.2 <Video Memory Setup>................37 3.3 <Display Properties Setting> ..............38 Chapter 4 <BIOS Setup> ..................40 Appendix A <I/O Port Pin Assignment> ..............42 A.1 <IDE Port> ....................42 A.2 <Serial ATA Port> ..................43 A.3 <Floppy Port>...
- Page 7 LS-571 User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

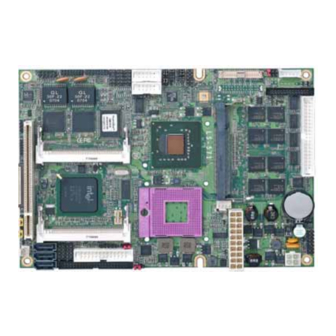

LS-571 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LS-571, the new generation of the 5.25” Miniboard, supports Intel Merom Processors for 533/800MHz front side bus and features Intel GM(E)965 and ICH8M chipset, integrated GMA X3100 graphics, DDR2 memory, REALTEK High Definition Audio, Serial ATA and two Intel Gigabit LAN. -
Page 9: Product Specification
LS-571 User’s Manual 1.2 <Product Specification> General Specification Form Factor 5.25 Inches Embedded Miniboard Support Intel Core 2 Duo/Celeron M Mobile Processor Package type: Micro-FCPGA478 (Socket-P) L2 Cache: All specification depend on the CPU. (1M/2M/3M/4M/6M) Front side bus: 533/800 MHz... - Page 10 LS-571 User’s Manual Dimension 203mm x 146mm Ordering Code LS-571TXD-P Onboard CRT, LVDS, HDTV, DVI, 2 x Intel Gigabit LAN, 8 x USB2.0, PCI, 2 x Mini-PCI, GPIO Port, IrDA, Slim FDD, Parallel Port, RS232/422/485, 3 x SATA, HD Audio, SMBus and CF...
-
Page 11: Mechanical Drawing
LS-571 User’s Manual 1.3 <Mechanical Drawing>... -
Page 12: Block Diagram
LS-571 User’s Manual 1.4 <Block Diagram> Intel Mobile Core 2 Duo/Celeron M Processor Intel GMA X3100 1 x 200-pin DDR2 SO-DIMM VGA LVDS HDTV DVI 533/677MHz up to 2GB GME965 Compact Flash 3 x Serial ATA ports Ultra 33 IDE 8 x USB2.0 ports... -
Page 13: Chapter 2
LS-571 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB1/2 CN_LAN1/2 CN_HDTV1 CN_AUDIO CN_LVDS1 CN_INV1 CN_PS2 CN_COM1 CN_COM2 CN_IR CN_DVI1 CD_IN COM3/4/5/6 CN_DIO MINIPCI2 SO-DIMM MINIPCI1 JFRNT SYSFAN CPUFAN CN_SMBUS SATA1/2/3 DC_IN CN_USB3/4... -
Page 14: Jumper Location & Reference
LS-571 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JCFSEL CF with IDE mode selection JVLCD1 Panel Voltage Setting JVSSD DOM 3.3V / 5V Power selection Power mode select COM1 signal mode switch (For Pin-1 & Pin-9) COM2 signal mode switch (For Pin-1 &... - Page 15 LS-571 User’s Manual Jumper: JAT Type: onboard 3-pin header Power Mode AT Mode ATX Mode Default setting: 2-3 Jumper: JP1 (COM 1) Type: onboard 3 x 2-pin header Power Mode Standard COM Port 3-5,4-6 1-3,4-6 Pin1 with 5V signal Pin9 with 12V signal...
-
Page 16: Connector Reference
LS-571 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket 478 for socket-P CPU SO-DIMM One 200-pin DDR2 SO-DIMM slot 44-pin IDE connector 26-pin slim type floppy connector 26-pin LPT port connector SATA1/2/3 7-pin Serial ATA connector... -
Page 17: Cpu And Memory Setup
LS-571 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> socket-P The board comes with the socket 478 for Intel Core 2 Duo/Celeron M processor only it supports new generation with 533/800MHz of front side bus. Please follow the instruction to install the CPU properly. -
Page 18: Memory Setup
LS-571 User’s Manual 2.4.2 <Memory Setup> The board provides one 200-pin DDR2 SO-DIMM to support 533/667MHz memory module up to 2GB and optional 667MHz 1GB DDRII SDRAM of capacity. Non-ECC, unbuffered memory is supported only, dual channel technology is enabled automatically for higher performance. -
Page 19: Cmos Setup
LS-571 User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 20: Enhanced Ide Interface
LS-571 User’s Manual 2.6 <Enhanced IDE Interface> The board has one Ultra 33 IDE interface to support up to 2 ATAPI devices, or one ATAPI device and Compact Flash Type II socket on the solder side, with jumper JCFSEL for IDE master/slave mode selection. And provide JVSSD jumper to support +3.3V or +5V DOM selection. -
Page 21: Serial Ata Interface
LS-571 User’s Manual 2.7 <Serial ATA Interface> Based on Intel ICH8M, the board provides three Serial ATAII interfaces with up to 300MB/s of transfer rate. SATA1/2/3... -
Page 22: Floppy Port
LS-571 User’s Manual 2.8 <Floppy Port> The board provides one slim type floppy port. Lift up the brown plastic bar Slot the cable in (Blue paste for brown bar side) Press back the plastic bar Floppy rear side Lift up this plastic bar... -
Page 23: Ethernet Interface
LS-571 User’s Manual 2.9 <Ethernet Interface> The board integrates with two Intel PCI Express Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T and Wake-On-LAN supported. -
Page 24: Onboard Display Interface
LS-571 User’s Manual 2.10 <Onboard Display Interface> Based on Intel GM(E)965 chipset with built-in GMA (Graphic Media Accelerator) X3100 graphics, the board provides, 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for two VGA, two LVDS, one HDTV and two DVI. -
Page 25: Digital Display
LS-571 User’s Manual 2.10.1 <Digital Display> The board provides one 40-pin LVDS connector up to two mode for 18/24-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) resolution, with LCD backlight inverter connector and jumper for panel voltage setting. - Page 26 LS-571 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 27 LCD Installation Guide: Preparing the LS-571, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD1 JVLCD2 to +12V or +5V or +3.3V.
- Page 28 LS-571 User’s Manual After setup the devices well, you need to select the LCD type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) 18-bit Single channel 24-bit Dual channel Output format...
-
Page 29: Hdtv Interface
LS-571 User’s Manual 2.10.2 <HDTV Interface> The board provides an HDTV interface with Intel GM(E) 965, supports Composite, S-Video and Component with PAL and NTSC of TV system, and display (clone or extended desktop) function with VGA,LVDS,DVI. Connector: CN_HDTV1 Connector type: 10-pin header HDTV connector (pitch = 2.54mm) -
Page 30: Integrated Audio Interface
LS-571 User’s Manual 2.11 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more sound and other advantages than former HD audio compliance. - Page 31 LS-571 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54mm-pitch header Description Description MIC2_L Ground MIC2_R FP_OUT_R MIC2_JD SENSE_B FP_OUT_L LINE2_JD Connector: CD_IN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD – Right...
-
Page 32: Gpio Interface
LS-571 User’s Manual 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 2.0mm-pitch header Description... -
Page 33: Power Supply
LS-571 User’s Manual 2.13 <Power Supply> 2.13.1.1 <DC_IN Input> The board requires 4-pin DC 12V input or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. Connector: DC_IN Type: 4-pin DC power connector... -
Page 34: Atx Output
LS-571 User’s Manual 2.13.1.2 <ATX Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices when DC-input mode has been used. Attention: When DC-IN had power supplied, the ATX become output ! -
Page 35: Atx Power Mode
LS-571 User’s Manual 2.13.2 <ATX Power Mode> Connector: ATX (It also can become Output when DC-IN be used) Type: 20-pin ATX power connector Assignment Assignment 3.3V 3.3V 3.3V -12V PS_ON PW_OK 5V_SB ATX Power... -
Page 36: Switch And Indicator
LS-571 User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 37: Chapter 3
LS-571 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® ICH8DO with REALTEK® ALC888 codec. It can support 2 channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 38: Video Memory Setup
LS-571 User’s Manual 3.2 <Video Memory Setup> Based on Intel® GM(E)965 chipset with GMA (Graphic Media Accelerator) X3100, the board supports Intel® DVMT (Dynamic Video Memory Technology) 4.0, which would allow the video memory to be allocated up to 384MB. -
Page 39: Display Properties Setting
LS-571 User’s Manual 3.3 <Display Properties Setting> Based on Intel GM(E)965 GMCH with GMA X3100 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 40 LS-571 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel(R) Dual Display Clone setup dual display mode as same screen...
-
Page 41: Chapter 4
LS-571 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 42 LS-571 User’s Manual (This page is left for blank)
-
Page 43: Appendix A
LS-571 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ 66DET -CS1 -CS3 -HD LED1... -
Page 44: A.2
LS-571 User’s Manual A.2 <Serial ATA Port> Connector: SATA1/2/3 Type: 7-pin wafer connector GND SATA_TXP0 SATA_TXN0 GND SATA_RXN0 SATA_RXP0 GND A.3 <Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DSKCHG MTR0 DRVDE0 STEP Ground WRITE DATA Ground WRITE GATE... -
Page 45: A.5
LS-571 User’s Manual A.5 <SMBUS Port> Connector: CN_ SMBUS Type: 5-pin header for SMBUS Ports Description SMBDATA SMBCLK Ground A.6 <Serial Port 1> Connector: CN_COM1 Type: 9-pin box header Description Description DCD /+5V Ground RI /+12V A.7 <Serial Port 2>... - Page 46 LS-571 User’s Manual Setting RS-232, RS-422, RS-485 & IrDA: Function JCSEL1 JCSEL2 IrDA RS-422 RS-485 RS-232 JCSEL1 JCSEL2...
-
Page 47: A.8
LS-571 User’s Manual A.8 <Parallel Port> Connector: LPT Type: 26-Pin box header Description Description -PSTB AFD- PRO0 ERR- PRO1 INT- PRO2 SLIN- PRO3 Ground PRO4 Ground PRO5 Ground PRO6 Ground PRO7 Ground ACK- Ground BUSY Ground Ground SLCT A.9 <LAN Port>... -
Page 48: A.10
LS-571 User’s Manual A.10 <USB Interface> Connector: CN_USB1/2/3/4 Type: 10-pin (5 x 2) header for dual USB Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground A.11 <COM3/4/5/6 Port> Connector: COM3/4/5/6 Type: 40-Pin box header Description Description HS_DCD1 HS_RXD1... -
Page 49: A.12
LS-571 User’s Manual A.12 <DVI Port> Connector: CN_DVI1/2 Type: onboard 26-pin connector for DVI connector Assignment Assignment TDC1+ TDC1- TLC+ TLC- TDC2+ TDC2- TDC0+ TDC0- DVI_DA DVI_SL 5HSYNC 5VSYNC... -
Page 50: Appendix B
LS-571 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into... -
Page 51: Appendix C
LS-571 User’s Manual Appendix C <System Resources> C.1 <Direct Memory Access (DMA)> C.2 <Input /Output (IO)>... - Page 52 LS-571 User’s Manual...
-
Page 53: C.3
LS-571 User’s Manual C.3 <Memory Address Map>... -
Page 54: C.4
LS-571 User’s Manual C.4 <Memory>... -
Page 55: Appendix D
LS-571 User’s Manual Appendix D <Programming GPIO’s> The GPIO’ s can be programmed with the MSDOS debug program using simple IN/ OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 -o 2E 87 ;Enter configuration... -
Page 56: Appendix E
LS-571 User’s Manual Appendix E <Programming Watchdog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Time-out Value Range - 1 to 255... -
Page 57: Contact Information
