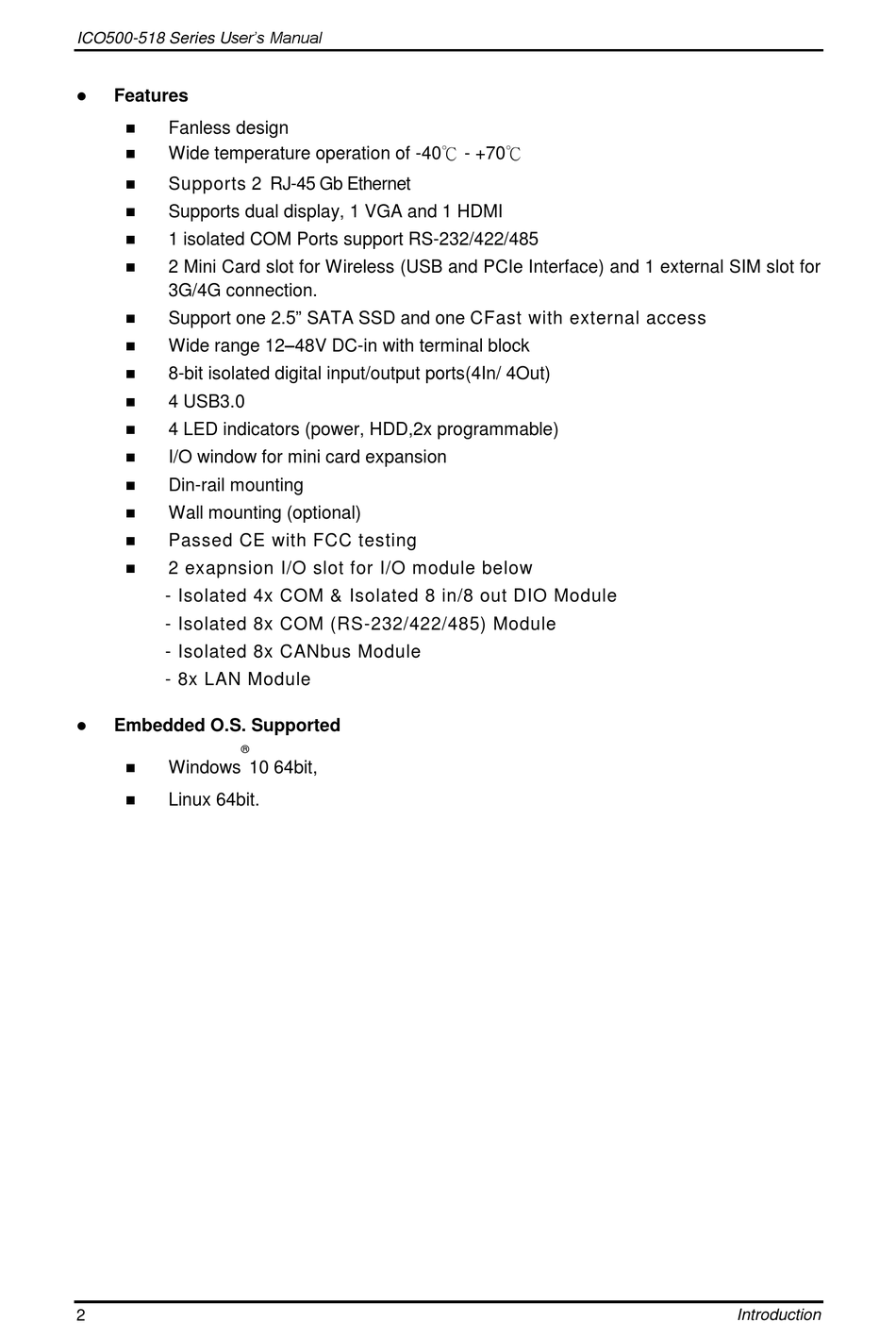

AXIOMTEK ICO500-518 Series User Manual page 10

ICO500-518 Series User's Manual
 Features
 Fanless design
 Wide temperature operation of -40℃ - +70℃
 Supports 2 RJ-45 Gb Ethernet

Supports dual display, 1 VGA and 1 HDMI
 1 isolated COM Ports support RS-232/422/485
 2 Mini Card slot for Wireless (USB and PCIe Interface) and 1 external SIM slot for
3G/4G connection.

Support one 2.5" SATA SSD and one CFast with external access
 Wide range 12–48V DC-in with terminal block
 8-bit isolated digital input/output ports(4In/ 4Out)
 4 USB3.0
 4 LED indicators (power, HDD,2x programmable)
 I/O window for mini card expansion
 Din-rail mounting
 Wall mounting (optional)
 Passed CE with FCC testing

2 exapnsion I/O slot for I/O module below
- Isolated 4x COM & Isolated 8 in/8 out DIO Module
- Isolated 8x COM (RS-232/422/485) Module
- Isolated 8x CANbus Module
- 8x LAN Module
 Embedded O.S. Supported
®
 Windows
 Linux 64bit.
2
10 64bit,
Introduction
