- Page 1 SWIT Electronics Co., Ltd. Model: S-1173F 17.3" Broadcast Studio LCD Monitor User Manual Ver: V1.0.0V01 Please read this User Manual throughout before using.
-
Page 2: Preface
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice. -
Page 3: Maintenace
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents

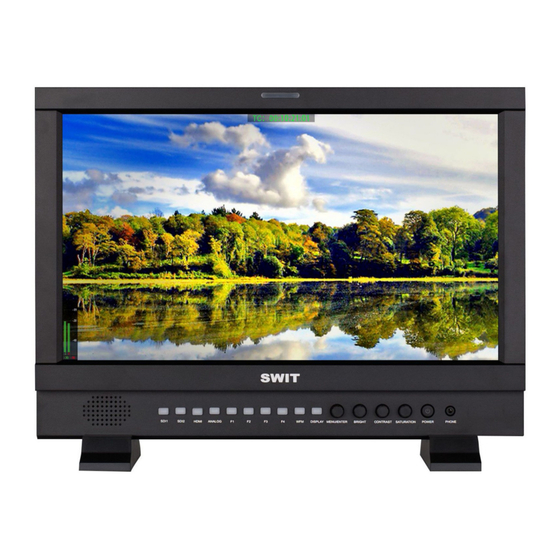

3. Power adaptor + power cable Introduction S-1173F adopts TFT LCD panel, with resolution 1920×1080 and wide viewing angle H160°⁄V160°. It supports 2 x 3GSDI (Level A/B), 1 x HDMI, 1 x CVBS, 1 x Y/Pb/Pr, 1 x VGA and 1 x analog audio input. -
Page 5: Installation Dimensions
Installation Dimension The main body (in mm) With desktop stand feet (in mm) With VESA desktop stand (in mm) With 19-inch rack mount bracket (in mm) - Page 6 For optional purchase Item Name Item Model V-mount battery plate S-7004S Gold-mount battery plate S-7004A VESA desktop stand A-VS22 1. Battery plate S-7004S S-7004A Installation 1. Take off the rub cover on the rear panel; see Fig (1). 2. Insert the DC cable of S-7004S/A into the hole, and plug onto the power socket inside the hole; see Fig (2).
- Page 7 安 装 边 架 安 装 边 架 Installation 1. Clockwise to fix the brackets onto the left and right sides of S-1173F monitor with the supplied screws; 2. Install the monitor with brackets onto the 19-inch rack, see Fig (3).
-
Page 8: Operation Instructions
Operation Instructions Front Panel (1) Desktop Stand Feet (2) Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is plugged in) (3) Illuminated Push Button SD I1: Press “SDI1” to switch to SDI input 1 SDI2: Press “SDI2”... -
Page 9: Osd
Timecode S DI ⑴ （ ） Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as “TC UNLOCKED”. User can set function keys F1 F 4 or GPI pins as “Timecode” to turn on or off this function. ～... - Page 10 Timecode （ （ （ （ S DI ） ） ） ） Under SDI input, it can display the SMPTE time code (VITC1, VITC2 or LTC) on the top of the screen, which is used extensively for synchronization, and for logging and identifying material in recorded media.
-
Page 11: Rear Panel
Rear Panel Handle ⑴ DC IN 11V-17V BACK UP: Back up power input, connect with DC11V 1 7V 4-pin XLR power ⑵ ～ adapter. (Pin 1: Negative, Pin 4: Positive) DC IN 11V-17V MAIN: Main power input, connect with DC11V 1 7V 4-pin XLR power adapter. -
Page 12: Main Menu
Main Menu S-1173F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 13 Submenu introduction （ t he default values are marked with underline ） Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2.
- Page 14 4. Function key To define the F1 ～ F 4 function keys. *1 Function keys F1-F4 can be setted as the down below functions: Audio Bar, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker , Color Bar, UMD, Audio Alarm, Odd/Even Frame, Focus Assist , Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, CVBS, YPbPr , VGA ,Color Temp, Time Code, Zebra, Vector.
- Page 15 6.UMD Support “TSL UMD Protocol-V4.0” provided by Television System LTD Setup Source ID: Select “Source ID”, revolve “MENU/ENTER” to select the letters and press “MENU/ENTER" to input. Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen.
- Page 16 7. Marker *1 When “Fit Marker” is Off, the size of safety area is benchmarked against the actual display screen, accounting for 80% ~ 95% of actual display screen. When “Fit Marker” is On, the size of safety area is benchmarked against the area inside the scales marker, accounting for 80% ~ 95% of the area inside the scales marker.
- Page 17 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed; When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed. *2 Select Channel Under analog signal, only channel1-2 can be displayed. Under HDMI signal, channel1-2 and 1-8 can be selected.
- Page 18 10. Waveform *1: Only the “WFM Single Line” is set to “ON”, the “WFM Line Count” can be adjusted. “WFM Single Line” is to display the selected line waveform of “WFM Line Count” WFM Single Line O ff WFM Single Line ：...
- Page 19 CVBS. When set to “No”, update model will not be supported. *2 Logo When powered on, the screen will display SWIT logo. *3 Green Mode When no recognizable signal is detected and opreation time reaches the time selected in “Idle Duration”, then the monitor will turn to green energy saving mode that is “Green mode”.
-
Page 20: Specification
Specification LCD Performance Size 17.3 inches Display area 381.89 2 14.8 mm × Resolution 1920×RGB×1080 Color 6 bit Aspect ratio 16:9⁄4:3 Brightness 300 cd⁄ ㎡ Contrast 700:1 Viewing Angle 160°(H)⁄160°(V) Input/output BNC×2 3G/HD/SD-SDI input×2 BNC×1 CVBS input BNC×3 Y/Pb/Pr input HDMI×1 HDMI input Input... -
Page 21: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose contact Check and correctly connect the or not correctly connected BNC or HDMI cable...
