Summary of Contents for SWIT S-1053F
-

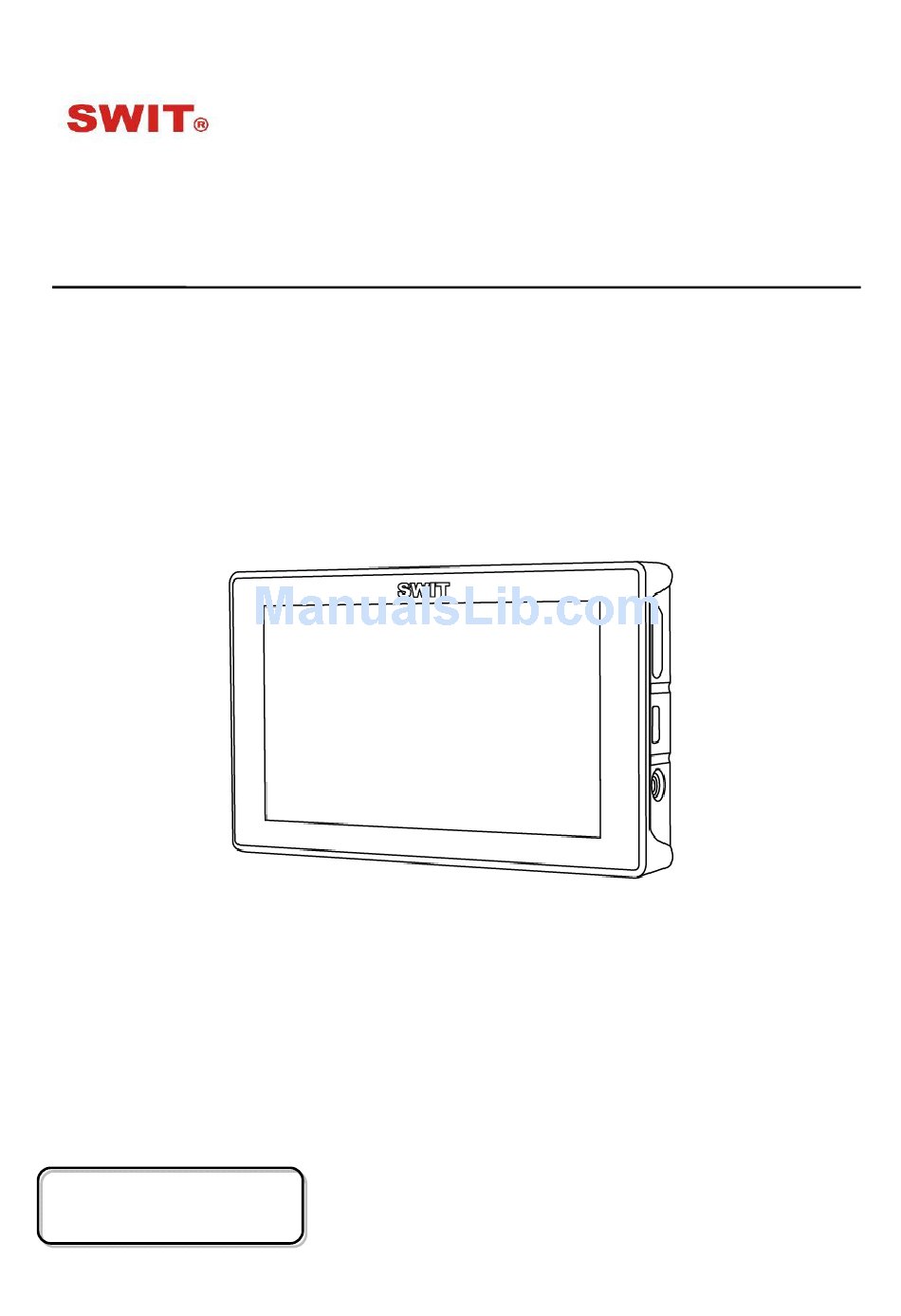

Page 1: User Manual

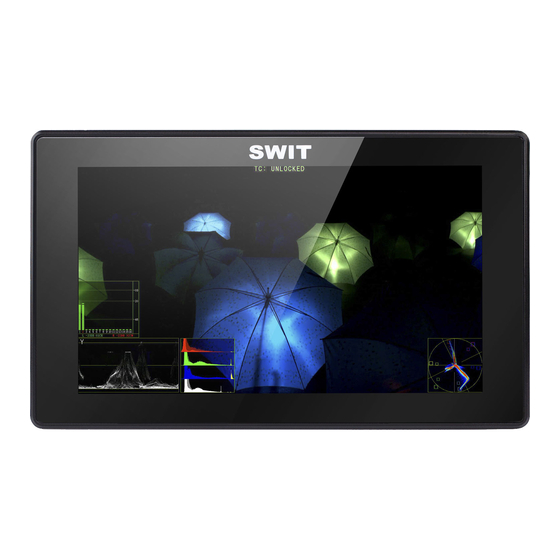

SWIT Electronics Co., Ltd. Model：S-1053F 5.5’’ Full HD Broadcast LCD Monitor User Manual Ver：B Please read this User Manual throughout before using. - Page 2 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice 4.
-
Page 3: Table Of Contents
Maintenance Warning 1.In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2.Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Introduction
5. Sun hood 11. Carrying case Introduction The LCD panel and tempered glass of S-1053F adopts optical bonding process, small and thin, preventing the ash into the screen, meanwhile eliminated the air between the screen so as to display more transparent. -
Page 5: Accssaroies Introduction
Accssaroies introduction 1. Sun hood ⑴ Take out the sun hood from the flannel bag, see pic1; ⑵ Push out the sun hood as pic2, unfold as pic3; ⑶ Fold the two bottom parts inward as pic3, with the internal magnets attached and fixed as pic4; ⑷... - Page 6 2. Battery plate Install the battery plate on the back panel of the monitor as shown above, fix with four screws, then insert the power connector with lock to the rear housing power port, and twist the latch portion clockwise to the end. Mounting the battery to the plate can power the monitor. 3.
-
Page 7: Operation Instructions
Operation Instructions User definable function keys（F1～F3） ⑴ User can set F1～F3 keys to corresponding function for quick operation according to their needs. For example：User can set F1 to “Focus Assistant”, and press F1 to directly switch the focus assistant parameter, the sequence is “Red→Blue→Off”. Quick function keys support multi definition, for details please refer to “4.Function key settings”... -
Page 8: Screen Display
⑺ POWER: Power on/off ⑻ SDI-OUT: SDI output Under SDI, loop out SDI-IN input signal; Under HDMI, HDMI converted to SDI output. Remark: when the current input source is HDMI, the SDI-OUT will not support SD. ⑼ SDI-IN: 3G/HD/SD SDI signal input, standard BNC interface. ⑽... - Page 9 Introduction of audio and video functions 16-ch embedded audio meters Under 3G/HD/SD SDI, it displays 16 channels embedded audio meters. Under HDMI, it displays 2 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB.
-
Page 10: Main Menu
Horizontal, vertical, horizontal and vertical two-way image flip function. Main menu S-1053F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 11 4. Revolve “MENU” to change the selected item’s parameter, press “MENU” to apply and save the settings. 5. Revolve “MENU” to select “Exit”, press “MENU” to quit submenu. Select “Exit & Status” under the Main Menu and press to quit Main Menu. Notice: ＊...
- Page 12 adjusted. 4. Function key To define the F1～F3 function keys *1 Function keys F1-F3 can be setted as the down below functions: source, Waveform, Display, Color Temp, Time Code, Zebra, Vector, Audio Bar, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Max backlight, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode.
- Page 13 *1 When “Fit Marker” is “Off”, the size of safety area is benchmarked against the actual display screen, accounting for 80% ~ 95% of actual display screen. When “Fit Marker” is “On”, the size of safety area is benchmarked against the area inside the scales marker, accounting for 80% ~ 95% of the area inside the scales marker.
- Page 14 Under SDI signal, channel 1-2, 1-8 and 1-16 can be selected. *3 When “Audio Alarm” is set to “On”, if no embedded audio is detected, the audio bar will display “UNLOCKED”. If the audio value is too low, the audio bar will display “MUTE” *4 Audio channels can be selected to output according to the requirements.
- Page 15 WFM Single Line：Off WFM Single Line：On 10. Display 11. System...
- Page 16 When set to “No”, update model will not be supported. *3 Logo When powered on, the screen will display SWIT logo. *4.*5 Update Driver/ Kernel ⑴ Open the power supply, plug the U disk with upgrading programma into the Micro USB port on the side of the monitor；...
-
Page 17: Specification
Specification LCD Performance Size 5.5 inch Display area 120.96×68.04 mm Resolution 1920×RGB×1080 Color 8 bit Aspect ratio 16:9∕4:3 Brightness 400 cd∕㎡ Contrast 1000:1 Viewing angle Horizontal∕Vertical: 160°∕160° Input∕Output HDMI×1 HDMI input Input BNC×1 3G/HD/SD-SDI input USB×1 BNC×1 3G/HD/SD-SDI loop through output Output 3.5mm×1 SDI/HDMI audio output... -
Page 18: Trouble-Shooting
Trouble-shooting symptom Possible causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply BNC or HDMI cable loose No display Check and correctly connect the contact or not correctly...
