- Page 1 S-1161H Model: 15.6" Broadcast Studio LCD Monitor User Manual Ver: 1161HV1.0V02 Please read this User Manual throughout before using.
- Page 2 Reproduction in whole or in part without written permission is prohibited. ． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. Due to constant effort of product development, SWIT reserves the right to make changes and ．...
-
Page 3: Maintenance
Maintenance The Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features 10-bit Full-HD 15.6” LCD Panel Blue Only ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ 1920×1080 resolution, H 178°/V 178° viewing Under Blue Only Mode, only blue pixels are used angle, 1000:1 contrast, 10-bit color depth to generate the image, because hue and saturation ◆...

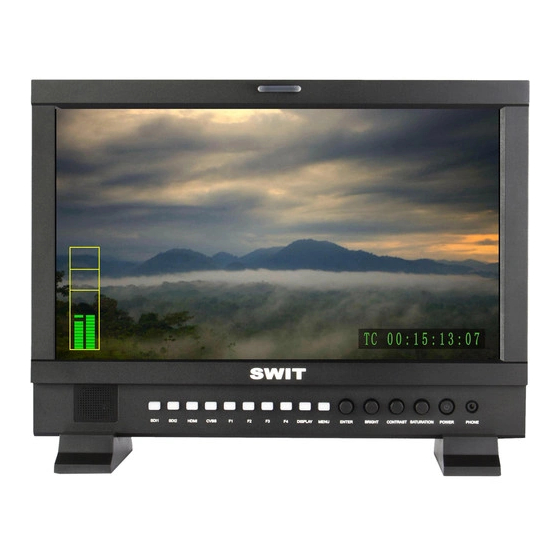

- Page 5 2. Panel Instruction Front view Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is ⑴ plugged in) SDI1: Press “SDI1” to switch to SDI input 1 ⑵ ⑶ SDI2: Press “SDI2” to switch to SDI input 2 ⑷...
-
Page 6: Rear View
Rear view ⑴ Battery plate Install: V-mount or Gold mount battery plates install position, with a hole to connect the battery plate power wires to the main board inside. DC IN 11V-17V BACK UP: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive) ⑵... - Page 7 3. Menu Operation ⑴ Press “MENU” and it will display menu system Revolve “ENTER” to select an item. The selected item will be highlighted display. ⑵ Press “ENTER” to enter the selected item. ⑶ ⑷ Under menu system, press “MENU” to back to previous menu. *The menu will automatically save and quit if it remains idle.
- Page 8 3.5 DISPLAY submenu The DISPLAY submenu is to select the items to be displayed on screen when ‘DISPLAY” button is pressed. Revolve "ENTER" to turn on/off the items: INFO: Including Input format, aspect ratio, ⑴ underscan/overscan, zoom status TITLE: User edited title ⑵...
- Page 9 4. TALLY Light Operation The front TALLY light can display 3 colors: RED, GREEN and YELLOW. The TALLY light controlling port is the DB-9 socket at the rear panel, and terminal description is as follows: Terminal Description The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting. The GREEN light is on when connecting the terminal “G”...
-
Page 10: Specifications
5. Specifications LCD Performance Size 15.6 inches Display area 1 94mm × Resolution 1920 R GB 1 080 × × Aspect ratio 16:9 (4:3 adjustable) Brightness 200cd Contrast 700:1 Color 10-bit, 1.074billion colors Viewing angle Horizontal: 178 V ertical: 178 °... -
Page 11: Optional Accessories
7. Optional Accessories Model Description S-7005S V-mount battery plate S-7005A Gold mount battery plate A-PG16 Magnetic LCD protective organic glass A-VS16 Rotatable desktop stand with VESA installation A-RK16 19-inch rack install bracket 7.1 Battery plate Installation 1. Take off the rub cover on the rear panel, see Fig. (1) 2. - Page 12 7.2 Protective organic glass The A-PG16 organic glass has left and right magnetic stripes and can be fixed on front of the LCD panel, to protect the LCD during transport or stock. A-PG16 7.3 Rotatable desktop stand 10cm 10x10cm VESA 10cm A-VS16 Rear View...
- Page 13 7.4 19-inch rack install bracket Installation 1. Fix the brackets onto the left and right sides of S-1161H monitor, see Fig (1) and Fig (2); 2. Install the monitor with brackets onto the 19-inch rack; see Fig (3); 3. The installed monitor is as Fig. (4);...
- Page 14 8. Installation Dimension 8.1 The main body (in mm) 8.2 With desktop stand feet (in mm) 8.3 With rotatable VESA desktop stand (in mm)
