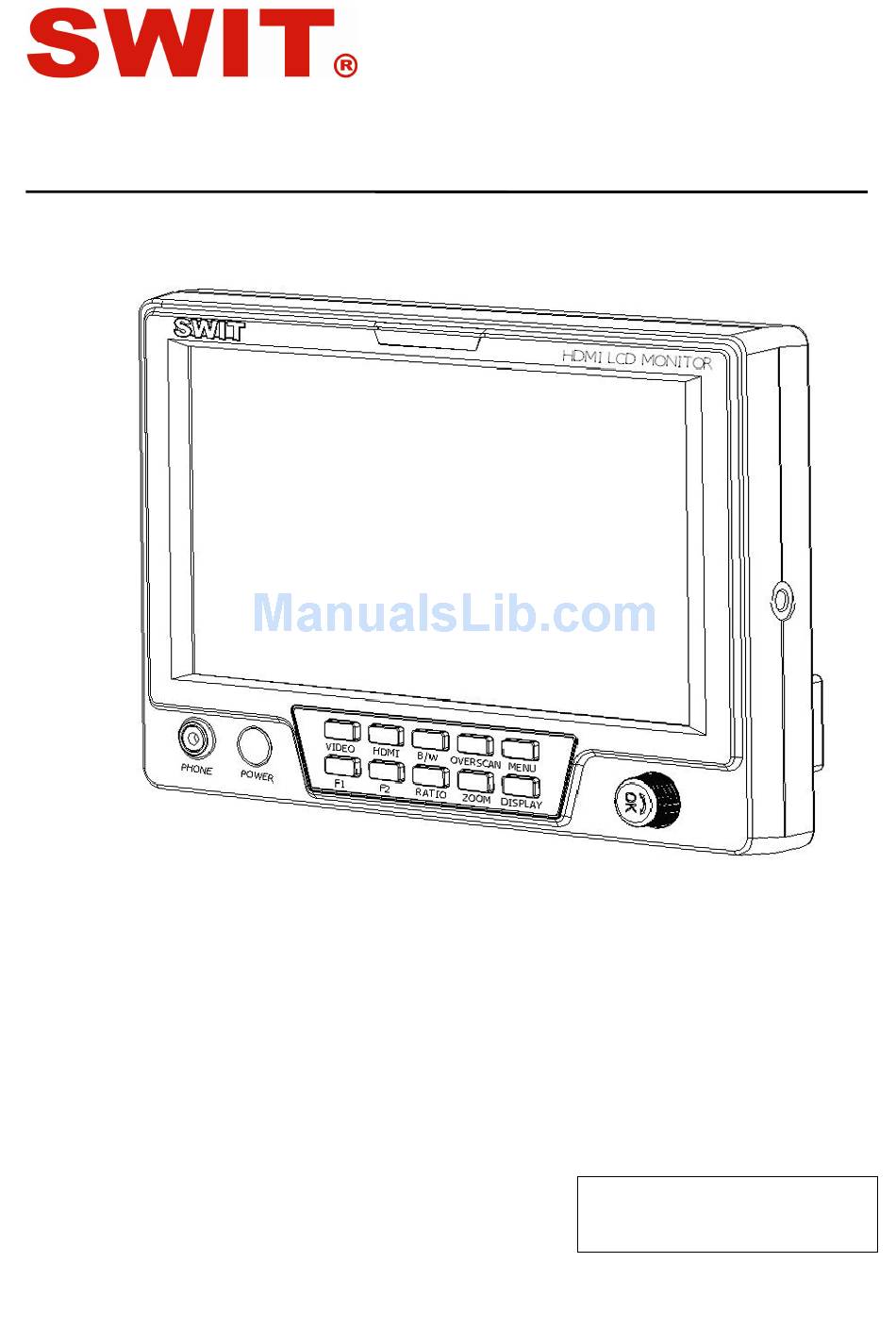

Page 1: User Manual
S-1071C Model: 7" Portable On-camera HDMI LCD Monitor User Manual Please read this User Manual throughout before using. - Page 2 1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners.
-
Page 3: Maintenance
Maintenance Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. -
Page 4: Panel Instruction
1. Features 7” LCD, 1024×600 resolution, with wide viewing angle; HDMI and Composite Video input accept; User definable function keys; User editable video title; Video flip function; Front and Rear 3-color TALLY light; Quick release battery mount, for different DV batteries optional. 2. -
Page 5: Input Formats
⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. ⑵ Battery mount connector: Connect with SWIT S-7001 series quick release DV mounts, and then mount corresponding DV batteries. See details in “Optional Battery Mount”. ⑶ VIDEO OUT: Composite video loop through output (BNC connector) ⑷... - Page 6 4. Menu Operation Press “MENU” and it will display menu system Revolve “OK” to select an item. The selected item will be highlighted display. Press “OK” to enter the selected item. Under menu system, press “MENU” to back to previous menu. The menu will automatically save and quit if it remains idle.
- Page 7 Range: 5 seconds to 60 seconds. 8. Title Settings Submenu Revolve "OK" button to select the letters, and press "OK" to input. Select SPACE to input space and DEL to delete the left letter. Max 10 letters are supported. After setting, press "MENU", the system will save data to current user and quit menu.
- Page 8 11. TALLY Light Operation There are front and rear TALLY lights on the monitor, which can display RED, GREEN and AMBER signals. The TALLY light controlling port is the RJ45 socket at the rear panel, and terminal description is as follows: Terminal Description The RED light is on when connecting the terminal “R”...
- Page 9 13. Optional Battery Mount 13.1 S-7001 series DV battery mount S-1071C monitor can use Gold mount, V-mount batteries, and DV batteries by connecting with SWIT S-7001 series mount. There’re following types of S-7001 for choice: Model Compatible battery type Recommended SWIT battery...
-
Page 10: Specifications
7. Mini HDMI to standard HDMI cable Optional purchase × 1 8. S-7001 battery mount × 1 Optional purchase SWIT Electronics Co., Ltd. Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone, Nanjing 210038, P.R.China Phone: +86-25-85805753 Fax: +86-25-85805296 Email: contact@swit.cc...
