Summary of Contents for SWIT S-1073H
-
Page 1: User Manual
Model: S-1073H 7” 4K HDMI LCD Monitor User Manual Ver：A Please read this User Manual throughout before using... -
Page 2: Preface
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice. -
Page 3: Table Of Contents
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Packing List

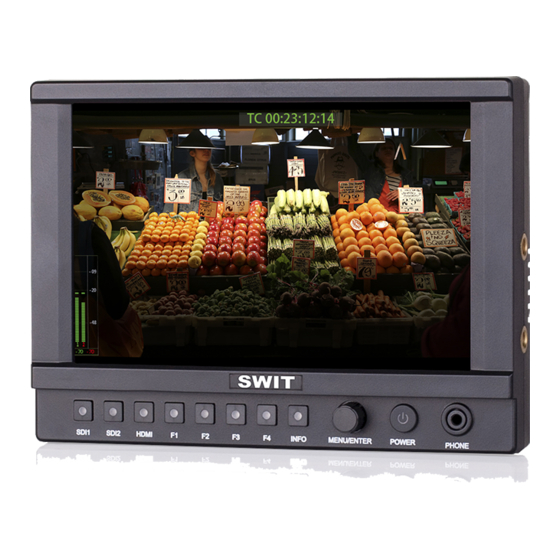

12、Carrying case Introduction S-1073H adopts TFT LCD panel, with resolution 1920×1200 and wide viewing angle H160° ∕ V160° . It supports 2 x 3GSDI (Level A/B), 1 x HDMI2.0 (4K display) input. It also supports 1x 3GSDI, 1 x HDMI and 1 x analog audio loop through output. -
Page 5: Operation Instruction
Operation Instruction ⑴ Button Source: Signal selection button（HDMI、SDI1、SDI2） User definable function keys（F1～F4） User can set F1～F4 keys to corresponding function for quick operation according to their needs. For example：User can set F1 to “Focus Assistant”, and press F1 to directly switch the focus assistant parameter, the sequence is “Red→Blue→Off”. -
Page 6: Screen Display
·Screen display ⑴、Timecode（SDI） Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as “TC: UNLOCKED”. User can set function keys F1～F4 as “Timecode” to turn on or off this function ⑵、UMD Display the source title. Set up the UMD under ‘UMD” submenu. ⑶、AFD（SDI）... -
Page 7: Audio Alarm
4、Peaking precision adjust Press Menu key again, the peaking precision number is highlighted. Scroll the Menu key up and down to adjust the peaking focus assist precision from 0-9. 5、Mapping indication window Under zoom-in mode, the mapping indication window is displayed on bottom right of the screen, and indicates the zoom-in rate, up/down/left/right position. -
Page 8: Main Menu
Main menu S-1073H has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 9 Submenu introduction（the default values are marked with underline ） 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters Color Temp To select different color temperature or setup user-defined color parameters.
- Page 10 4. Function key To define the F1～F4 function keys *1 Function keys F1-F4 can be set as the down below functions: Audio Bar, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Max backlight, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, Color Temp, Time code, Zebra.
- Page 11 6、UMD Set “UMD”: ⑴ Select “Source ID” (2) The underline flashes as a reminder on the bottom of the first letter. Revolve "MENU" to select the letters; the letter will follow the sequence of the down below if clockwise revolved: (3) Press “MENU”...
- Page 12 Aspect ratio: 4:3 Aspect ratio: 4:3 Safety Area: 85% Safety Area: 85% Center Marker: On Center Marker: Off Fit Marker: Off Fit Marker: On 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame”...
- Page 13 When set to “No”, update model will not be supported. *2 Logo When powered on, the screen will display SWIT logo. *3.*4 Update Driver/ Kernel ⑴ Open the power supply, plug the U disk with upgrading programma into the USB port on the rear of the monitor；...
- Page 14 ⑷ While upgrading, there will be a prograss bar displaying on the screen (Note: Do not power off when upgrading） ； ⑸ After upgraded, the monitor will automatically reboot. 11. Color Measurement *1 Camera Log conversion When shooting with Log mode of the camera, you can select the corresponding Log conversion LUT, to convert the log mode video to standard ITU Rec.709 mode to monitor.
- Page 15 12. OSD 13. Key Inhibit When the “Key inhibit” is set to “on”, there is no response when all the buttons except ” MENU” is pressed, the sreen will be displayed as ” Key Inhibit”. User can set “Key inhibit” to off under the “Key inhibit” submenu, restore the function of all keys.
-
Page 16: Specification
Specification LCD Performance Size 7 inch Display area 151.2×94.5 mm Resolution 1920×RGB×1200 Color 8 bit Aspect ratio 16:9∕4:3 Brightness 400 cd∕㎡ Contrast 1000:1 Horizontal / Vertical: 160°∕160° Viewing angle Input/Output HDMI×1 HDMI input Input BNC×2 3G/HD/SD-SDI input USB×1 HDMI×1 HDMI loop output Output BNC×1 3G/HD/SD-SDI loop output... -
Page 17: Trouble Shooting
Trouble-shooting symptom Possible causes Solution Please check if the power is connected, and then press ”POWER” The power is not turned on button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose contact or not Check and correctly connect the BNC correctly connected or HDMI cable...
