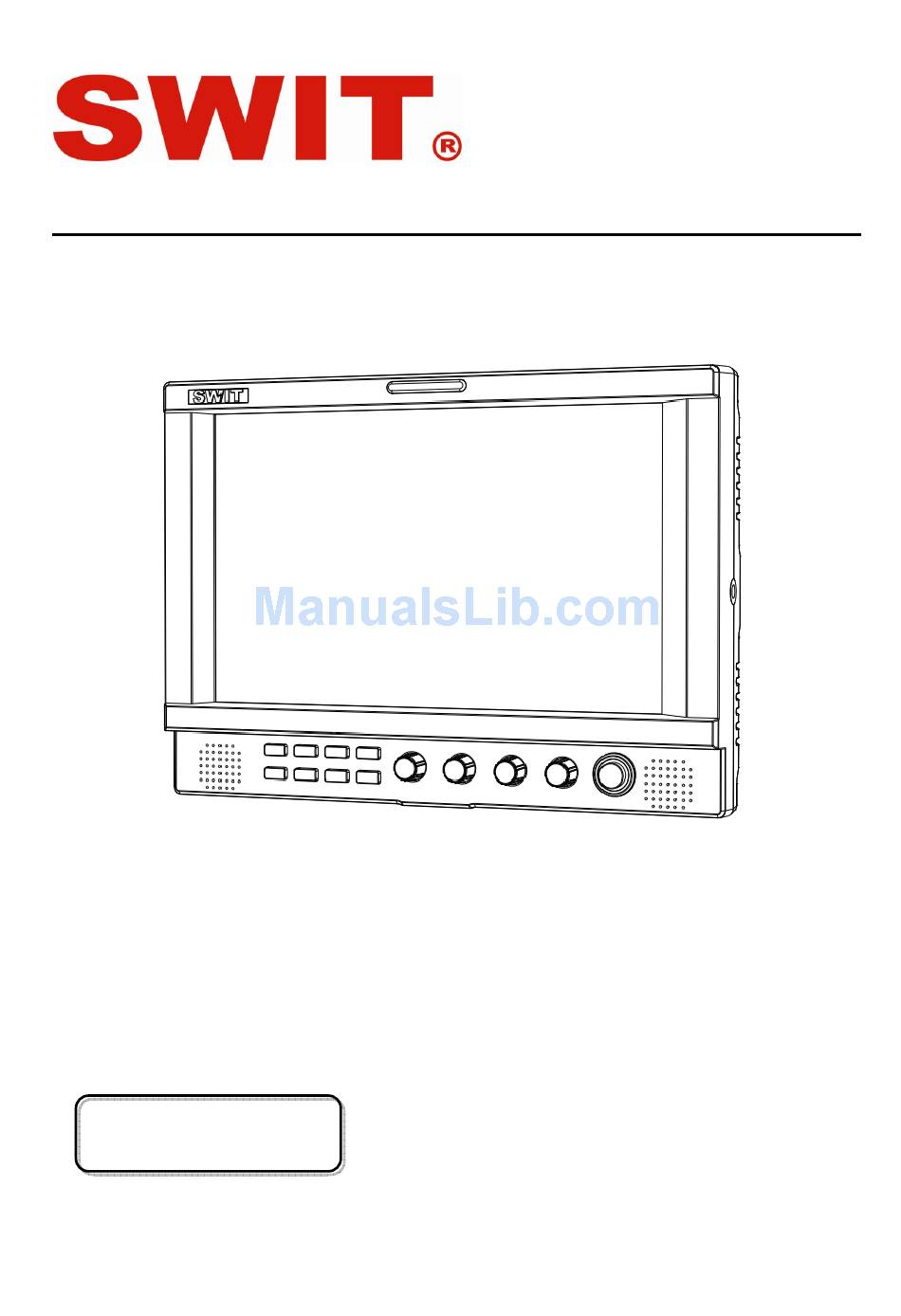

Page 1: User Manual
Model: S-1093F 9” Full HD Broadcast LCD Monitor User Manual Ver：V1.0.0V00 Please read this User Manual throughout before using. -
Page 2: Preface
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice. -
Page 3: Maintenance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents
Introduction S-1093F adopts IPS LCD panel, with resolution 1920×1200 and wide viewing angle H170°∕V170°. It supports 2 x 3GSDI, 1 x HDMI, 1 x CVBS and 1 x analog audio input. It also supports 2 x 3GSDI (Level A/B), 1 x HDMI, 1 x CVBS and 1 x analog audio loop through output. -
Page 5: Installation Dimension
Installation Dimension The main body (in mm) -
Page 6: Operation Instructions
Operation Instructions ·Front Panel Speaker: For SDI/HDMI embedded audio and analog audio monitoring. ⑴ (Will not work if earphone is plugged in) Button ⑵ SOURCE: Press “SOURCE” to select SDI1, SDI2, HDMI, and CVBS signal input ～ F 5: User definable function keys. Please see details in “4. Function key” under “Main Menu”. WFM: Waveform shortcut key, press “WFM”... -
Page 7: Osd
·OSD Timecode S DI ⑴ （ ） Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as “TC: UNLOCKED”. User can set function keys F1 F 5 or GPI pins as “Timecode” to turn on or off this function. ～... - Page 8 Introduction of audio and video functions 16-ch embedded audio meters Under 3G/HD/SD SDI, it displays 16 channels embedded audio meters. Under HDMI, it displays 8 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB.
-
Page 9: Back Panel
⑵ Negative, Pin 4: Positive) Battery mount connector ⑶ Connect with SWIT S-7004 series quick release battery plate, and then mount corresponding V-mount or DV batteries. See details in “Optional Battery Plate”. Audio Socket ⑷ AUDIO IN: 3.5mm analog audio input (CVBS) AUDIO OUT: 3.5mm audio output, to monitor SDI embedded audio, HDMI and analog audio output... -
Page 10: Main Menu
Main Menu S-1093F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 11 Sub-Menu (the default values are marked with underline) 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters 3.
- Page 12 4. Function key To define the F1 ～ F 5 function keys. *1 Function keys F1-F5 can be set as the down below functions: Audio Bar, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Focus Assist , Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, CVBS, HDMI , SDI1, SDI2 ,Color Temp, Time Code, Zebra, Vector.
- Page 13 6. UMD Support “TSL UMD Protocol-V4.0” provided by Television System LTD Source ID Setup: Select “Source ID”, revolve “MENU/ENTER” to select the letters and press “MENU/ENTER" to input. Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen.
- Page 14 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed. *2 When “Audio Alarm” is set to “On”, if no embedded audio is detected, the audio bar will display “UNLOCKED”.
- Page 15 9. Vector 10. Waveform *1: Only the “WFM Single Line” is set to “ON”, the “WFM Line Count” can be adjusted. “WFM Single Line” is to display the selected line waveform of “WFM Line Count” WFM Single Line O ff WFM Single Line ：...
- Page 16 CVBS. When set to “No”, update model will not be supported. *2 Logo When powered on, the screen will display SWIT logo. * 4 Update Driver/ Kernel 、 DT-X92F supports USB software upgrade. Insert the USB equipment with update software into the back panel USB socket.
-
Page 17: Optional Battery Plate
Optional Battery Plate 1. Battery Mount choice S-1093F monitor can use V-mount, Gold mount and various DV batteries by connecting with SWIT S-7004 series battery plates. There’re following types of S-7004 for choice: Model Compatible battery type Recommended SWIT battery... - Page 18 3. Installation of S-7004A/S Gold mount / V-mount battery plate To use Gold mount or V-mount battery, please install the S-7004A/S plate as following instructions: (1) Please make sure the power terminals are clean and in well condition before use. (2) Connect the wire of S-7004A/S to the 2-pin DC socket.
-
Page 19: Specification
Specification LCD Performance 9 inches Size Display area 191.5×119.7 mm Resolution 1920×RGB×1200 Color 8 bit Aspect ratio 16:9∕4:3 Brightness 450 cd∕ ㎡ Contrast 1000:1 Viewing Angle Horizontal: 170°Vertical: 170° Input/output BNC×2 2K/3G/HD/SD-SDI ×2 BNC×1 CVBS input HDMI×1 HDMI input Input GPI×1 UMD &... -
Page 20: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply BNC or HDMI cable loose No display Check and correctly connect the contact or not correctly...
