Summary of Contents for SWIT S-1071C+
-

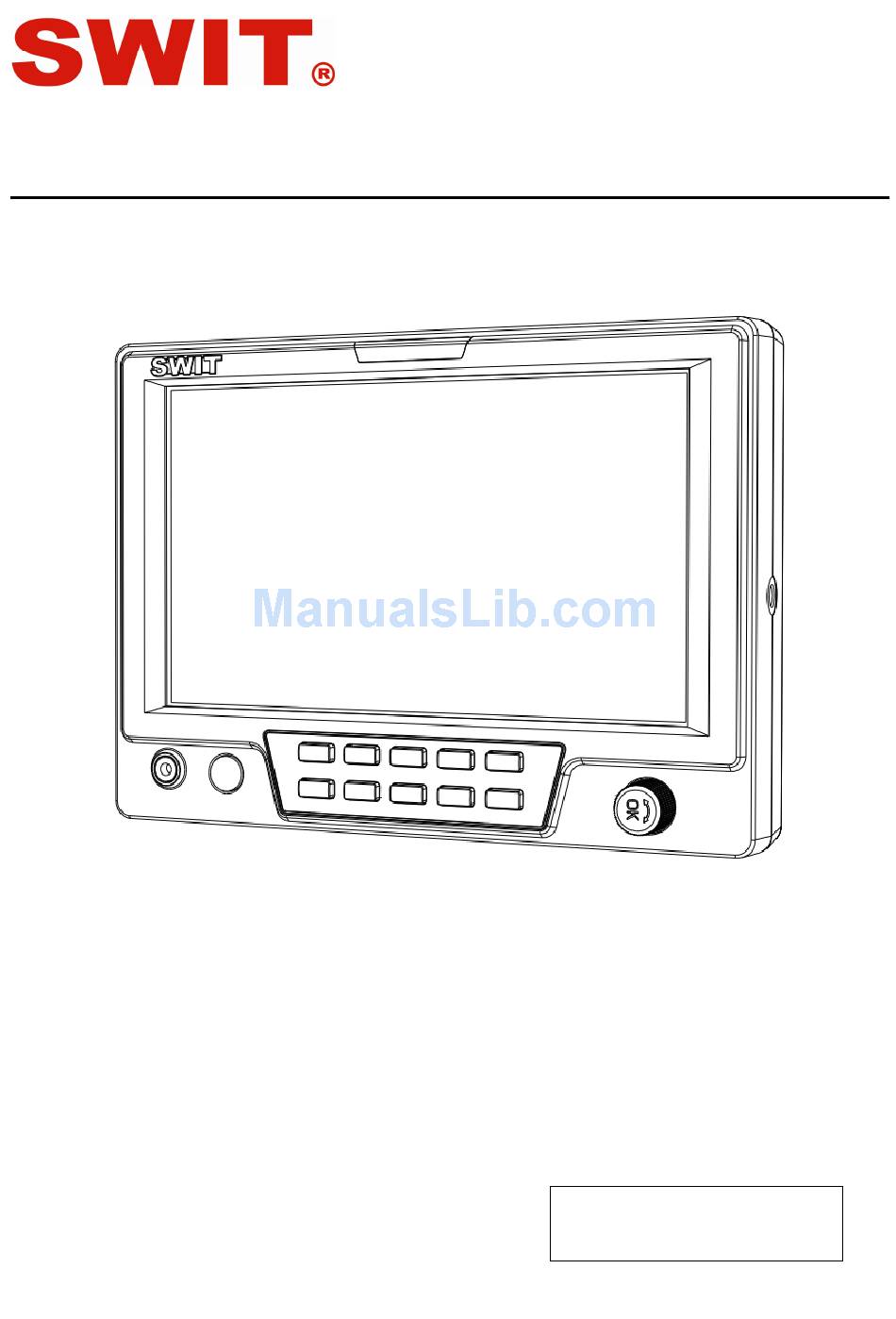

Page 1: User Manual
S-1071C+ Model: 7" Broadcast On-camera HDMI LCD Monitor User Manual Please read this User Manual throughout before using. - Page 2 All internal technologies of this product are protected, including device, software and trademark. ． Reproduction in whole or in part without written permission is prohibited. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this ． user manual are the property of their respective owners.
-
Page 3: Maintenance
Maintenance The Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features ◆ ◆ ◆ ◆ High resolution LCD Panel ◆ ◆ ◆ ◆ Internal colorbar 7-inch, 16:9, 1024×600, 16.77 million colors, Generate 100% colorbar for video calibration. 900:1 contrast, 500cd/m2 brightness H160°/ V160° wide viewing angle ◆ Underscan and Overscan Switch between underscan and overscan mode.

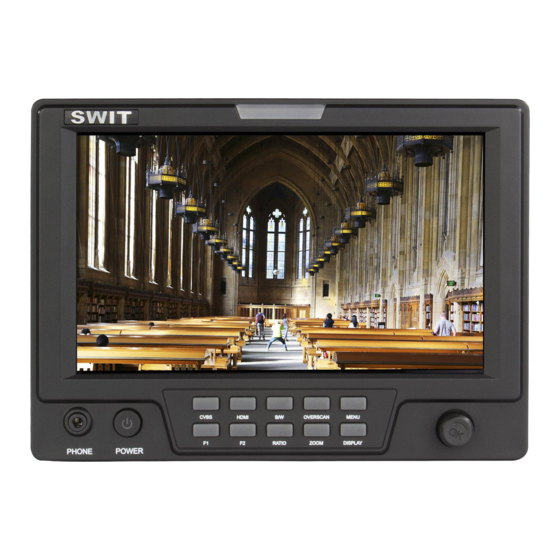

- Page 5 2. Panel Instruction Front view ⑴ PHONE: 3.5mm Earphone jack, for HDMI embedded audio and L/R analog audio monitoring ⑵ POWER: Power on/off Connect with power cable, press the “POWER” and the monitor will be switched on and get into normal working status.
-
Page 6: Rear View
⑵ TALLY Light: Red, Green and Yellow 3-color TALLY indicator Battery mount install: ⑶ Connect with Gold mount, V-mount, or SWIT S-7004 series snap-on DV mounts, See details in “Optional Battery Mount”. CVBS-IN: Composite video input (BNC connector) ⑷ ⑸... -
Page 7: Menu Operation
3. Menu Operation Press “MENU” and it will display menu system ⑴ ⑵ Revolve “OK” to select an item. The selected item will be highlighted display. Press “OK” to enter the selected item. ⑶ Under menu system, press “MENU” to back to previous menu. ⑷... - Page 8 3.4 TITLE submenu Revolve "OK" button to select the letters, and press "OK" to input. Select SPACE to input space and DEL to delete the left letter. Max 10 letters are supported. After setting, press "MENU", the system will save data to current user and quit menu.
- Page 9 4. TALLY Light Operation There are front and rear TALLY lights on the monitor, which can display RED, GREEN and YELLOW signals. The TALLY light controlling port is the RS232 socket at the rear panel, and terminal description is as follows: Terminal Description The RED light is on when connecting the terminal “R”...
- Page 10 6. Optional Battery Mount 6.1 Battery mount choice S-1071C+ monitor can use Gold mount, V-mount batteries, and DV batteries by connecting with SWIT S-7004 snap-on mount. There’re following types of S-7004 for choice: Model Compatible battery type Recommended SWIT battery...
-
Page 11: Specifications
7. Specifications LCD Performance Size 7.0 inches Display area 153.6×90mm Resolution 1024×RGB×600 Aspect ratio 16:9/4:3 Brightness 400cd Contrast 900:1 Color 16.77 million colors Viewing angle Horizontal: 160 ° V ertical: 160 ° Video Format CVBS NTSC ∕ P AL 480I / 576I / 480P / 576P 1080i (60 / 59.94 / 50) HDMI 720p (60 / 59.94 / 50)
