Page 1: User Manual

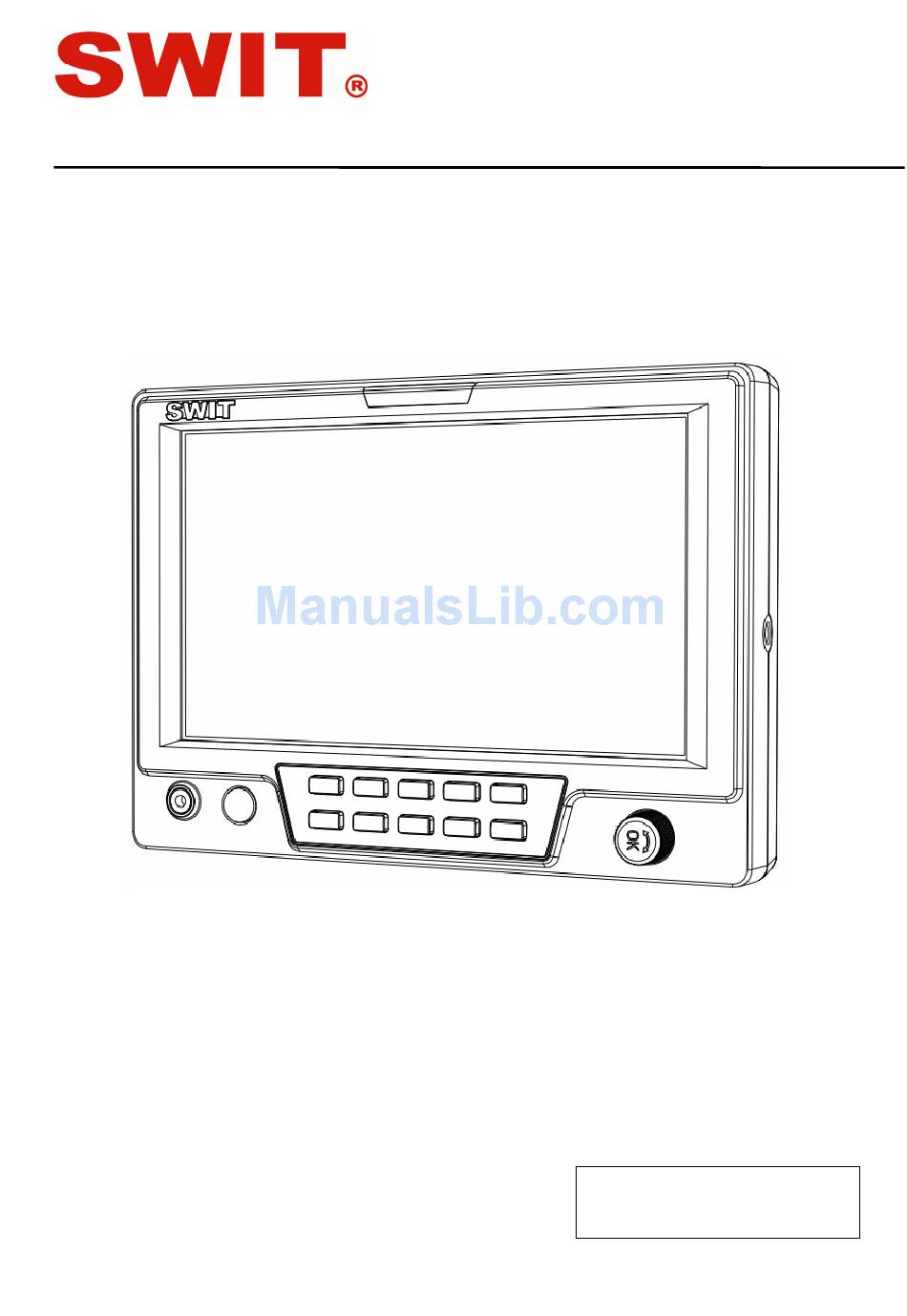

S-1071H(EFP) Model: 7" EFP Field On-camera LCD Monitor User Manual Please read this User Manual throughout before using. - Page 2 Reproduction in whole or in part without written permission is prohibited. ． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. Due to constant effort of product development, SWIT reserves the right to make changes and ．...
-
Page 3: Maintenance
Maintenance The Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features High resolution LCD Panel ◆ ◆ ◆ ◆ 7-inch, 16:9, 1024×600, 16.77 million colors, 900:1 contrast, and H160°/ V160°viewing angle ◆ ◆ ◆ ◆ 3Gbps SDI support Accept 3G/HD/SD-SDI input ◆ ◆ ◆ ◆ Multi Input/Output Support SDI, HDMI, CVBS input and loop through output ◆...

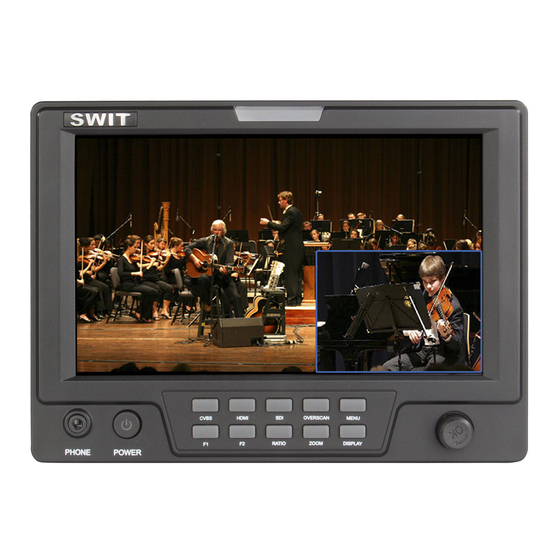

- Page 5 2. Panel Instruction Front view PHONE: Earphone jack, for SDI embedded audio, HDMI embedded audio and analog audio monitoring ⑴ ⑵ POWER: Power on/off Connect with power cable, press the “POWER” to switch on the monitor. Press again to switch off. Disconnect with power cable if the monitor will not be used for a period of time.
-
Page 6: Rear View
Rear view ⑴ DC 12V IN: Connect with the package supplied DC12V 4-pin XLR power adapter. For 3-party power adapter, please ensure the voltage is 6.5-17V, and Pin 1: Negative, Pin 4: Positive. TALLY Light: Red and Green 2-color TALLY indicator ⑵... -
Page 7: Menu Operation
3. Menu Operation ⑴ Press “MENU” and it will display menu system Revolve “OK” to select an item. The selected item will be highlighted display. ⑵ Press “OK” to enter the selected item. ⑶ ⑷ Under menu system, press “MENU” to back to previous menu. *The menu will automatically save and quit if it remains idle. - Page 8 3.4 TITLE submenu Revolve "OK" button to select the letters, and press "OK" to input. Select SPACE to input space and DEL to delete the left letter. Max 10 letters are supported. After setting, press "MENU", the system will save data to current user and quit menu.
- Page 9 4. DB-9 Terminal Description The Multi-functional DB-9 port centralized DC power input, CVBS input, picture-in-picture switch on/off and TALLY light controlling. In your build-up EFP system, you can use only one DB-9 cable to input everything, instead of the complex cable work. The terminal description is as follows: Terminal Description...
-
Page 10: Specifications
6. Specifications LCD Performance Size 7 inches Display area 153.6×90mm Resolution 1024×RGB×600 Aspect ratio 16:9/4:3 Brightness 400cd Contrast 900:1 Color 16.77 million colors Viewing angle Horizontal: 160 ° V ertical: 160 ° Video Format CVBS NTSC P AL ∕ SMPTE-425M 1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) SMPTE-274M...
