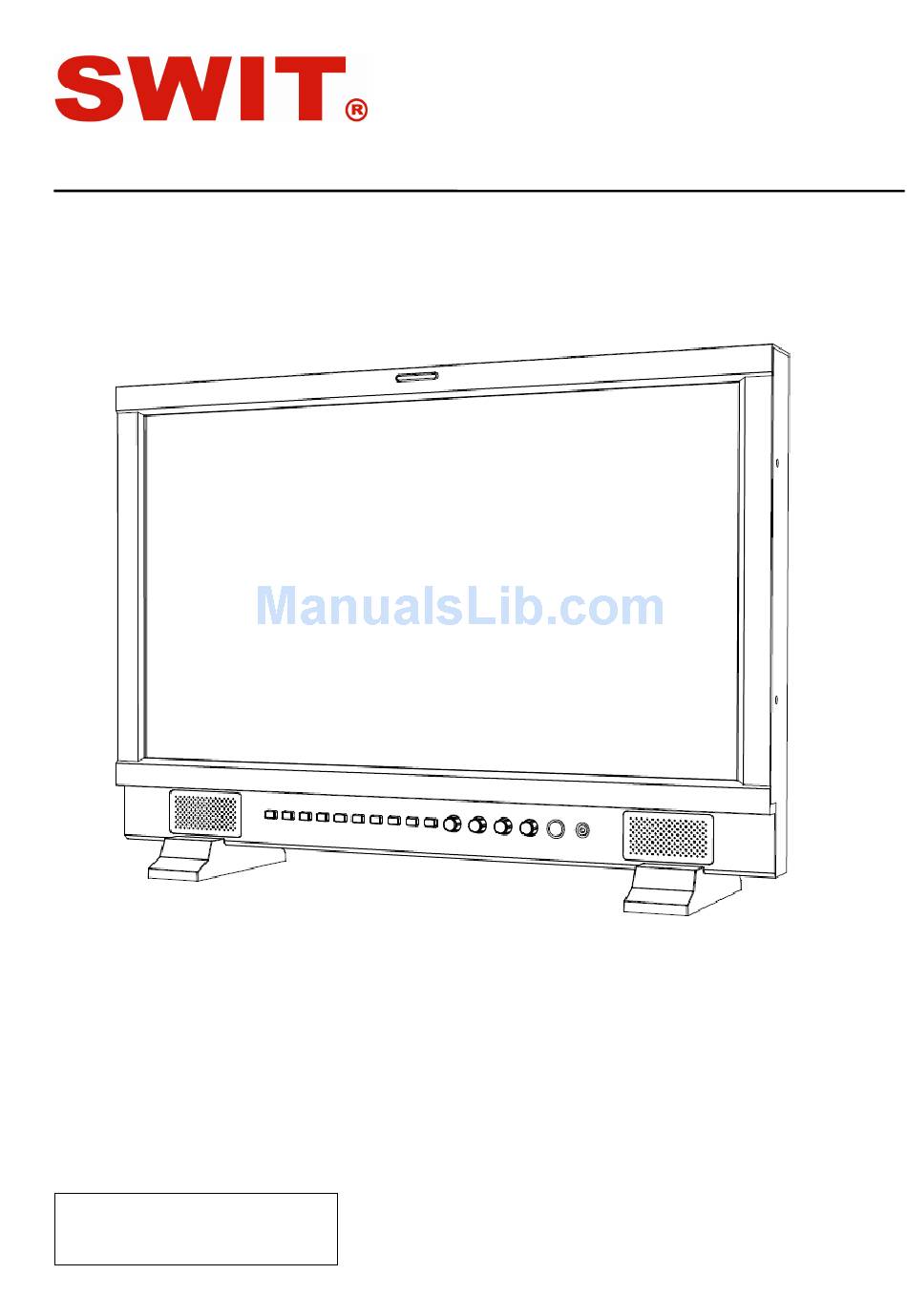

Page 1: User Manual
S-1242H Model: 23.8" Broadcast Studio LCD Monitor User Manual Ver: V1.0.0V00 Please read this User Manual throughout before using. - Page 2 All internal technologies of this product are protected, including device, software and trademark. ． Reproduction in whole or in part without written permission is prohibited. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks ． in this user manual are the property of their respective owners.
-
Page 3: Maintenance
Maintenance The Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features ◆ ◆ ◆ ◆ Full-HD 23.8” LCD Panel ◆ ◆ ◆ ◆ Blue Only 1920×1080 resolution, 1000:1 contrast Under Blue Only Mode, only blue pixels are used ◆ ◆ ◆ ◆ Multiple inputs to generate the image, because hue and saturation 3G/HD/SD-SDI, HDMI and Composite input can be adjusted quicker and more accurately.
- Page 5 2. Panel Instruction Front view ⑴ Desktop Stand Feet (dismountable) ⑵ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is plugged in) SDI1: Press “SDI1” to switch to SDI input 1 ⑶ SDI2: Press “SDI2” to switch to SDI input 2 ⑷...
-
Page 6: Rear View
Rear view Handle ⑴ Battery plate Install: ⑵ V-mount or Gold mount battery plates install position, with a hole to connect the battery plate power wires to the main board inside. DC IN 11V-17V BACK UP: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive) ⑶... - Page 7 3. Menu Operation Press “MENU” and it will display menu system ⑴ ⑵ Revolve “ENTER” to select an item. The selected item will be highlighted display. ⑶ Press “ENTER” to enter the selected item. Under menu system, press “MENU” to back to previous menu. ⑷...
- Page 8 3.5 DISPLAY submenu The DISPLAY submenu is to select the items to be displayed on screen when ‘DISPLAY” button is pressed. Revolve "ENTER" to turn on/off the items: INFO: Including Input format, aspect ratio, ⑴ underscan/overscan, zoom status TITLE: User edited title ⑵...
- Page 9 4. REMOTE Interface Definition The TALLY light controlling port and UMD signal port are controlling through the DB-9 socket at the rear panel, and terminal description is as follows: Terminal 485B(Rx-) 485A(Rx+) Description ⑴ The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting. The GREEN light is on when connecting the terminal “G”...
-
Page 10: Specifications
5. Specifications LCD Performance Size 23.8 inches Display area × 2 96mm Resolution 1920 R GB 1 080 × × Aspect ratio 16:9 (4:3 adjustable) Brightness 250cd Contrast 1000:1 Color 16.77 million colors Viewing angle Horizontal: 178 ° V ertical: 178 °... -
Page 11: Packing List
6. Packing List Monitor × Desktop stand × User manual × 4-pin XLR AC-DC Power adaptor × Power cable × 7. Optional Accessories Model Description S-7004S V-mount battery plate S-7004A Gold mount battery plate A-VS22 Rotatable desktop stand with VESA installation 7.1 Battery plate Installation 1. - Page 12 7.2 VESA Desk top stand 10x10cm VESA A-VS22 Rear View 8. Installation Dimension 8.1 The main body (in mm)
- Page 13 8.2 With desktop stand feet (in mm) 8.3 With rotatable VESA desktop stand (in mm)
