Page 1: User Manual

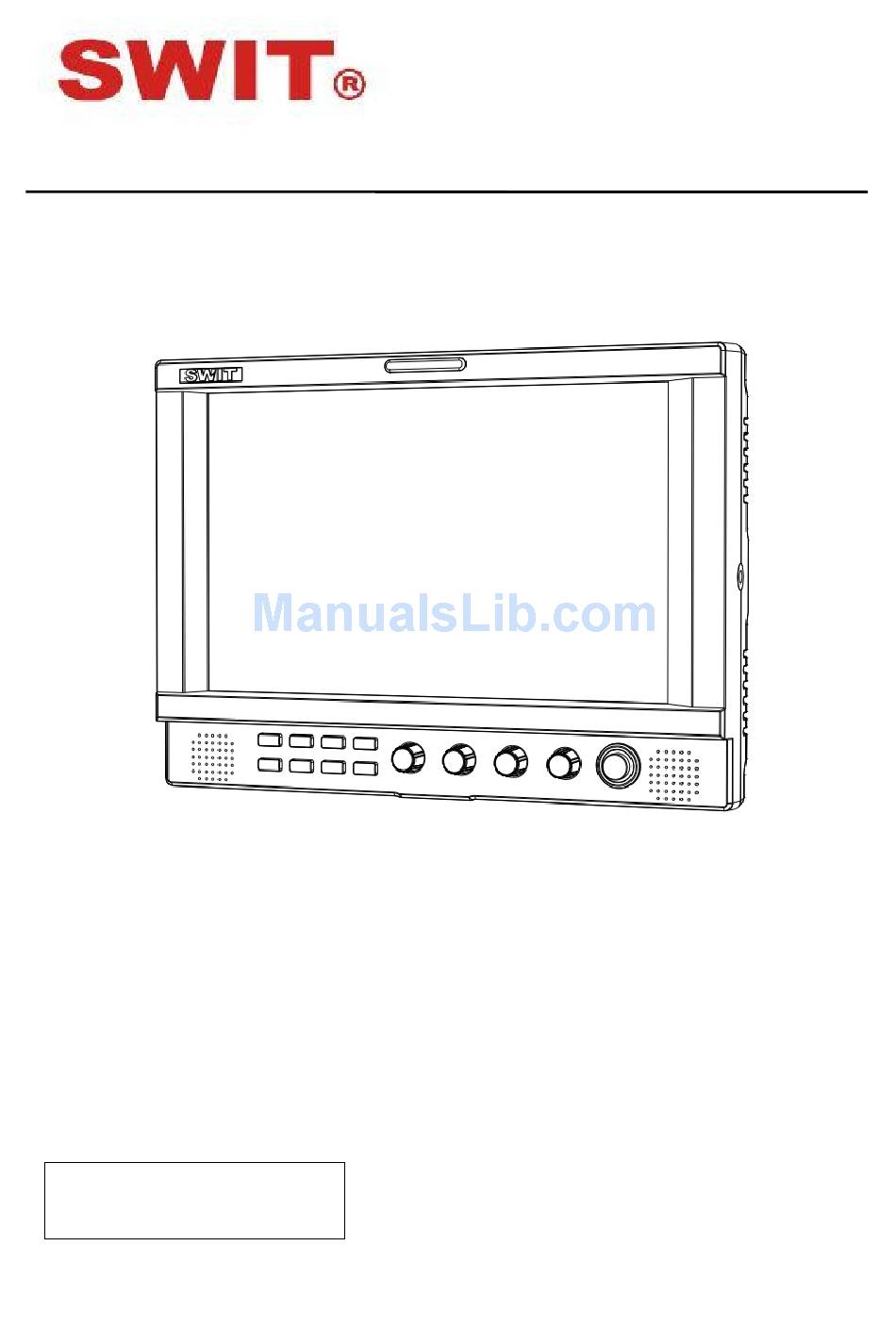

Model：S-1092H 9” Full HD Broadcast LCD Monitor User Manual Ver: V1.0.0V00 Please read this User Manual throughout before using. - Page 2 All internal technologies of this product are protected, including device, software and trademark. ． Reproduction in whole or in part without written permission is prohibited. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks ． in this user manual are the property of their respective owners.
-
Page 3: Maintenance
Maintenance The Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features Full-HD 9” LCD Panel IPS LCD panel, 1920×1200 resolution, H Freeze frame 170°/V 170° viewing angle, 800:1 contrast, To capture and display the on-play current LCD protective glass frame. Applied LCD protective glass to effectively Blue/Red/Green only protect the LCD panel from external Under the Blue/Red/Green Only Mode, only shocks.

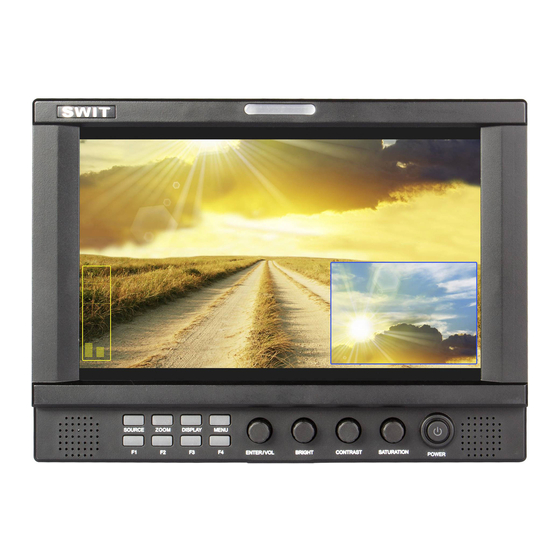

- Page 5 2. Panel Instruction Front view MENU P ress to enter Menu ⑴ ： DISPLAY D isplay current settings ⑵ ： Press “Display” to display or shut off relevant status information ZOOM: Press “ ZOOM” to switch on/off the zoom function. ⑶...
- Page 6 Please do not touch the heat sinks. ℃ B attery mount connector: ⑶ 、 ⑷ Connect with SWIT S-7004 series quick release battery plate, and then mount corresponding V-mount or DV batteries. See details in “5.Optional Battery Plate”. SDI-OUT: SDI loop through output (BNC connector) ⑸...
- Page 7 3. Menu Operation Press “MENU” and it will display menu system ⑴ Revolve “ENTER” to select an item. The selected item will be highlighted display. ⑵ Press “ENTER” to enter the selected item. ⑶ Under menu system, press “MENU” to back to previous menu. ⑷...
- Page 8 Marker Back: Normal, Semitransparent, Black ⑹ Normal: Normally display the outer area of scale marker Semitransparent: half-tone display the outer area of scale marker Black: Black display the outer area of scale marker 3.4 OSD submenu The OSD submenu includes: ⑴...
- Page 9 3.6 GPI submenu The “GPI” submenu includes: GPI control: on/off ⑴ On: User can control the monitor through GPI control unit Off: User cannot control the monitor through GPI control unit Terminal1~5: define each GPI terminal function, see ⑵ details in “4.TALLY/GPI Operation” 3.7 PIP submenu The “PIP”...
- Page 10 4.TALLY/GPI Operation The GPI interface is the DB9 port, the DB9 terminals definition are as below: GPI_1 GPI_2 GPI_3 GPI_4 GPI_5 VCC_OUT User can define each GPI terminal function in the “menu”. It will be on when GPI terminal connected to GND, and off when disconnected.
- Page 11 5. Optional Battery Plate 5.1 Battery Mount choice S-1092H monitor can use V-mount, Gold mount and various DV batteries by connecting with SWIT S-7004 series battery plates. There’re following types of S-7004 for choice: Model Compatible battery type Recommended SWIT battery...
- Page 12 Installation of S-7004A/S Gold mount / V-mount battery plate To use Gold mount or V-mount battery, please install the S-7004A/S plate as following instructions: (1) Please make sure the power terminals are clean and in well condition before use. (2) Connect the wire of S-7004A/S to the 2-pin DC socket. (3) Align the S-7004A/S screw holes to the bolts of the monitor rear panel.
- Page 13 6.Specification LCD Performance Size 9 inches Display area 192 mm × 1 20 mm Resolution 1920 × 1 200 Aspect ratio 16:9 / 4:3 Brightness 450cd Contrast 800:1 Viewing angle Horizontal: 170 ° V ertical: 170 ° Input and Output BNC ×2 3G/HD/SD-SDI input ×2 BNC ×1...
- Page 14 7. Packing List Simple Package Luxury Package 1. Monitor 1. Monitor 2. User Manual 2. User Manual 3. Warranty card 3. Warranty card 4. Sun hood 4. Sun hood 5. Cold shoe / Screw arm trestle 5. Cold shoe / Screw arm trestle 6.
