Page 1: Maintenace

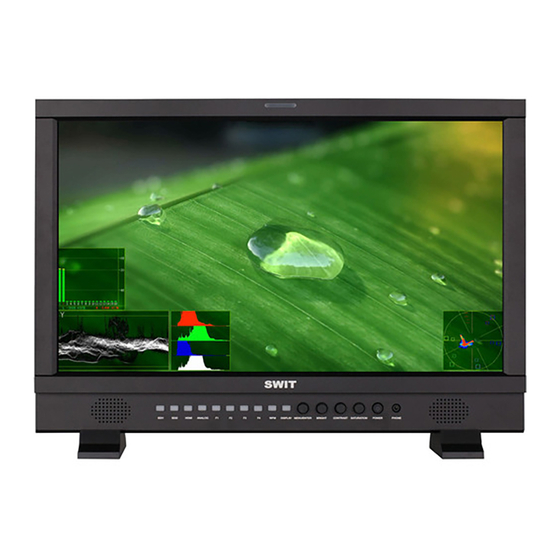

SWIT Electronics Co., Ltd. Model: S-1223F 21.5" Broadcast Studio LCD Monitor User Manual Ver: V1.0.0V01 Please read this User Manual throughout before using. -
Page 2: Contents
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice. - Page 3 Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals.
-
Page 4: Table Of Contents
3. Power adaptor + power cable Introduction S-1223F adopts FFS LCD panel, with resolution 1920×1080 and wide viewing angle H178°⁄V178°. It supports 2 x 3GSDI (Level A/B), 1 x HDMI, 1 x CVBS, 1 x Y/Pb/Pr, 1 x VGA and 1 x analog audio input. -
Page 5: Installation Dimensions
Installation Dimension The main body (in mm) With desktop stand feet (in mm) For optional purchase Item Name Item Model V-mount battery plate S-7004S Gold-mount battery plate S-7004A 1. Battery plate Installation 1. Take off the rub cover on the rear panel; see Fig (1). 2. -
Page 6: Operation Instructions
Operation Instructions Front Panel (1) Desktop Stand Feet (2) Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is plugged in) (3) Illuminated Push Button SDI1: Press “SDI1” to switch to SDI input 1 SDI2: Press “SDI2” to switch to SDI input 2 HDMI: Press “HDMI”... -
Page 7: Osd
⑴ Timecode （ S DI ） Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as “TC UNLOCKED”. User can set function keys F1 ～ F 4 or GPI pins as “Timecode” to turn on or off this function. ⑵... - Page 8 Under SDI input, it can display the SMPTE time code (VITC1, VITC2 or LTC) on the top of the screen, which is used extensively for synchronization, and for logging and identifying material in recorded media. If no Timecode information is detected, it will be displayed as “TC UNLOCKED”. Waveform (Y, Cb, Cr, R, G, B) Under SDI and HDMI input, totally 6 kinds of waveforms which are Y, CB, CR, R, G and B can be selected so as to check the brightness and chroma distribution.
-
Page 9: Rear Panel
Rear Panel Handle ⑴ ⑵ DC IN 11V-17V BACK UP: Back up power input, connect with DC11V ～ 1 7V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive) DC IN 11V-17V MAIN: Main power input, connect with DC11V 1 7V 4-pin XLR power adapter. -
Page 10: Main Menu
Main Menu S-1223F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 11 Submenu introduction （ t he default values are marked with underline ） Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2.
- Page 12 Alarm, Focus Assist , Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, CVBS, YPbPr , VGA ,Color Temp, Time Code, Zebra, Vector. For example: Set F3 to “R/G/B/Mono” under “Function key” submenu. User can press F3 on the front panel to adjust the parameters of “R/G/B/Mono”, and the “R/G/B/Mono”...
- Page 13 Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen. UMD setup: ⑴ Connect the external control equipment with S-1223F Set “Display Type” to “UMD” under UMD submenu ⑵ Set “Serial Port” to RS485 or RS232 according to the ⑶...
- Page 14 Aspect ratio: 4:3 Aspect ratio: 4:3 Safety Area: 85% Safety Area: 85% Center Marker: On Center Marker: Off Fit Marker: Off Fit Marker: On 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed When “Bar Frame”...
- Page 15 *4 Audio channels can be selected to output according to the requirements. When the current “Select Channel” is set to “Channel1-2”, the left channel and right channel output can be selected from Channel1 or channel2. When the current “Select Channel” is set to “Channel1-8”, the left channel and right channel output can be selected from Channel1 to channel8.
- Page 16 WFM Single Line O ff WFM Single Line ： ： 11. Display 12. System...
- Page 17 CVBS. When set to “No”, update model will not be supported. *2 Logo When powered on, the screen will display SWIT logo. *3 Green Mode When no recognizable signal is detected and opreation time reaches the time selected in “Idle Duration”, then the monitor will turn to green energy saving mode that is “Green mode”.
-
Page 18: Specification
Specification LCD Performance Size 21.5 inches Display area 477 mm×268 mm Resolution 1920×RGB×1080 Color 8 bit Aspect ratio 16:9⁄4:3 Brightness 250cd⁄ ㎡ Contrast 1000:1 Viewing Angle 178°(H)⁄178°(V) Input/output BNC×2 3G/HD/SD-SDI input×2 BNC×1 CVBS input BNC×3 Y/Pb/Pr input HDMI×1 HDMI input Input RS-485×2 GPI×1, UMD×1... -
Page 19: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose contact Check and correctly connect the or not correctly connected BNC or HDMI cable...
