Data Transmission
1. Press the MENU key to display the function menu on the right side of the screen.
2. Press the MENU UP or the MENU DOWN key to select the DISP SET mode; four
options appear at the bottom of the display.
3. Press the F4 key and select Bitmap or Vectors for data transmission.
4. Use the supplied cable to connect the meter to the PC.
5. Open the supplied software program on the PC.
6. Set the parameters according to the Software User Guide or from the Help Utility
available inside the software program to start data transmission.

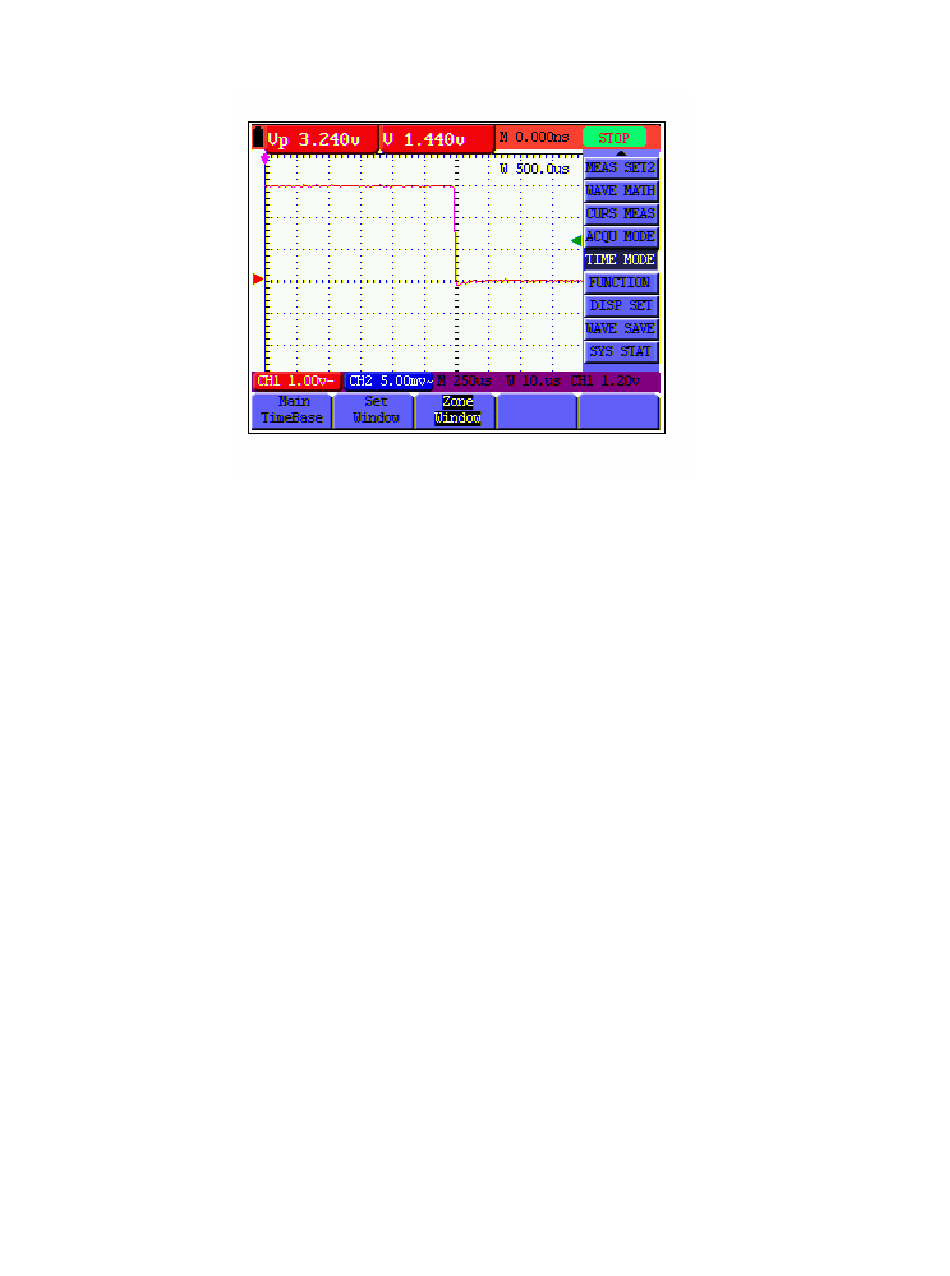

Figure 49: Window Extension
45
MS400 Version 2.0 – December 2007
