The user can view a screen that looks similar to the following Figure 46.

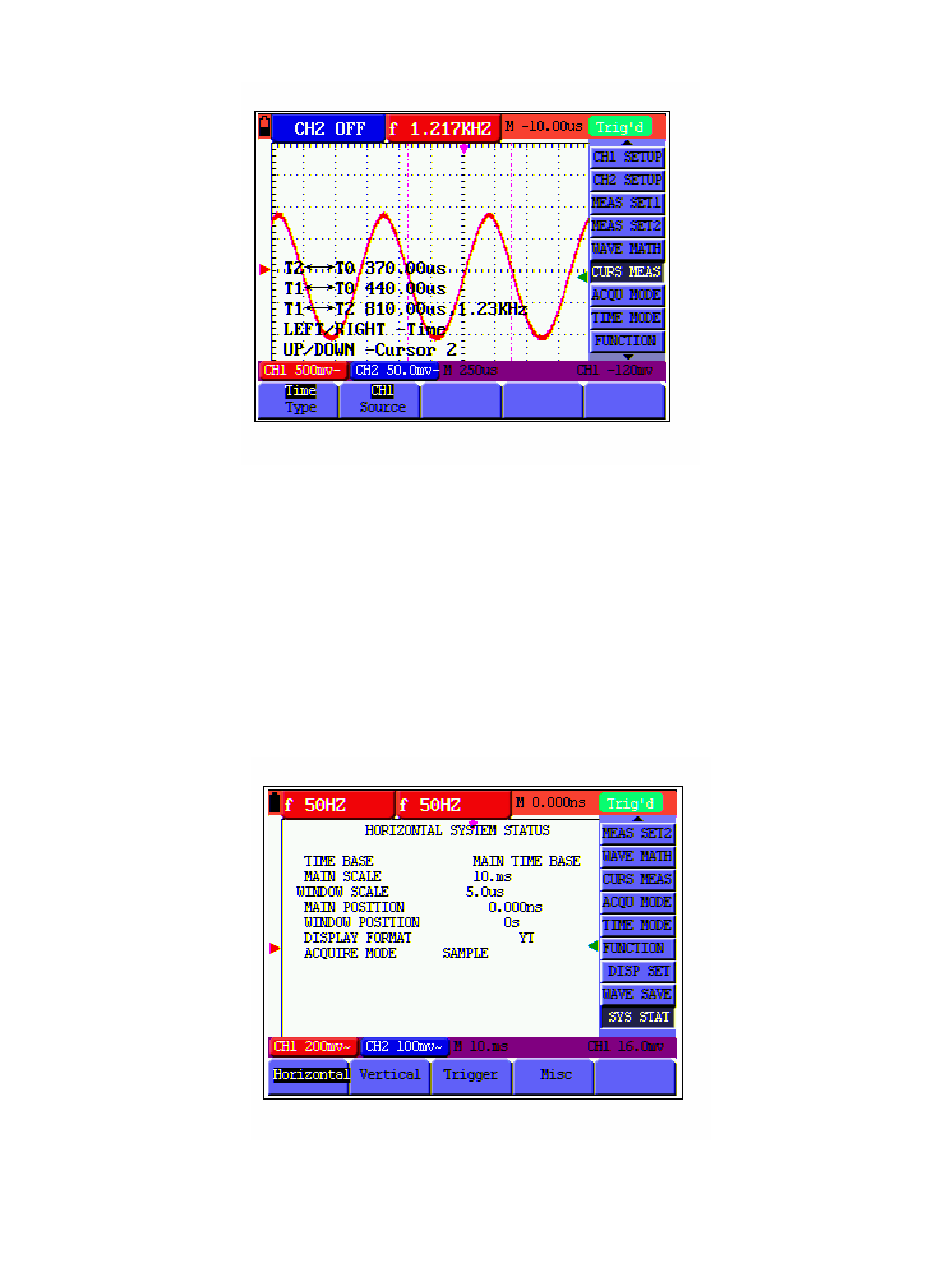

Figure 46: Use the Cursor for Time Measurement
System State Menu
The system state menu is used to display information about the present horizontal
system, vertical system, trigger system and others. The operational steps are listed
below:
1. Press the MENU key; the function menu will appear at the right side of the
screen.
2. Press the MENU UP or MENU DOWN key to select SYS STAT. Four options
appear at the bottom of the screen.
3. Sequentially press F1 through F4 and the corresponding status information will
display.
The following Figure 47 will be displayed.
Figure 47: System State
