- Page 1 USER MANUAL Dual Moisture Meter Pin and Pinless Moisture Measurements Model MO55...
- Page 2 Introduction Thank you for selecting the Extech MO55 Pin and Pinless Dual Moisture Meter. The compact MO55 takes quick Moisture level reference measurements (in percent %) on wood and building materials. The MO55 can be used in pinless mode (rear sensor) or in pin mode. The MO55 is simple to operate and offers measurement digits, audible tones and ‘moisture drop’...
-
Page 3: Meter Description

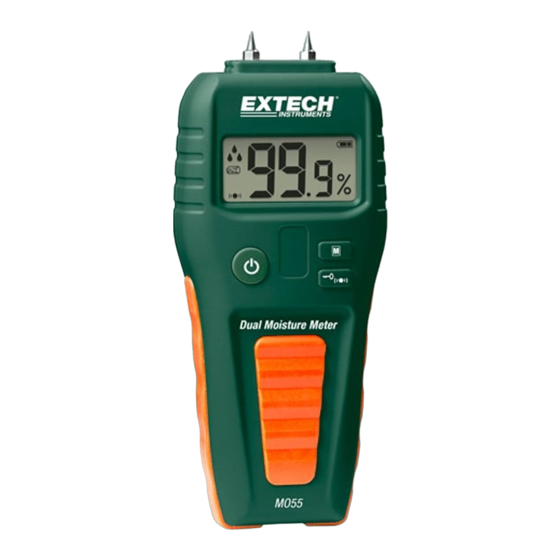

Description Meter Description Protective cover and pin-mode self-test circuit Measurement pins LCD Display Power button Mode (M) Pin/Pinless and Material selection Display Lock/Beeper button Internal sensor (rear) Battery compartment (rear) Display Description Moisture Drop icons (1 droplet for low moisture content, 2 for medium, and 3 for high) Wood mode Building Material mode Beeper active icon... -
Page 4: Operation
Operation CAUTION: The electrode measurement pins are extremely sharp. Use care when handling this instrument. Cover the pins with the protective cap when not in use. Operating Steps 1. For pin mode, carefully remove the protective/test cap to expose the electrode pins. 2. -
Page 5: Maintenance
Display Lock Press the Display Lock button to freeze the displayed reading. The icon is visible on the display when Display Lock is active. Press again to return to the normal operating mode. Beeper ON/OFF The beeper defaults to ON. To switch the beeper OFF, press and hold the Display Lock/Audible Beeper button until the icon disappears. -
Page 6: Specifications
Specifications Display LCD with multi-function indicators Measurement type Relative Moisture Content (%) Measurement principle Electrical resistance (pins) Electrical capacitance internal sensor (pinless) Measurement depth Pinless mode: < 25mm (1 in.) Auto Calibration Pinless mode in open air Measurement indication Digital, Moisture Droplet icons (1, 2, or 3 droplets) and audible tone with 8 levels of intensity indicating low to high moisture readings Measurement ranges PIN MODE: 5.0~50.0% (wood), 1.4~33.0% (building materials);...
