Advanced Oscilloscope Functions

About this Chapter

This chapter details the advanced oscilloscope functions.

Setting the Vertical CH1 and CH2

Each channel can be set independently.
To change vertical CH1 and CH2 settings:
1. Press the MENU key and the function menu will appear at the right of the screen.
2. Press the MENU UP or MENU DOWN key to jump to CH1 SETUP and four options
appear at the bottom of the screen.
3. Press any key from the F1 key through F4 to adjust the available settings.

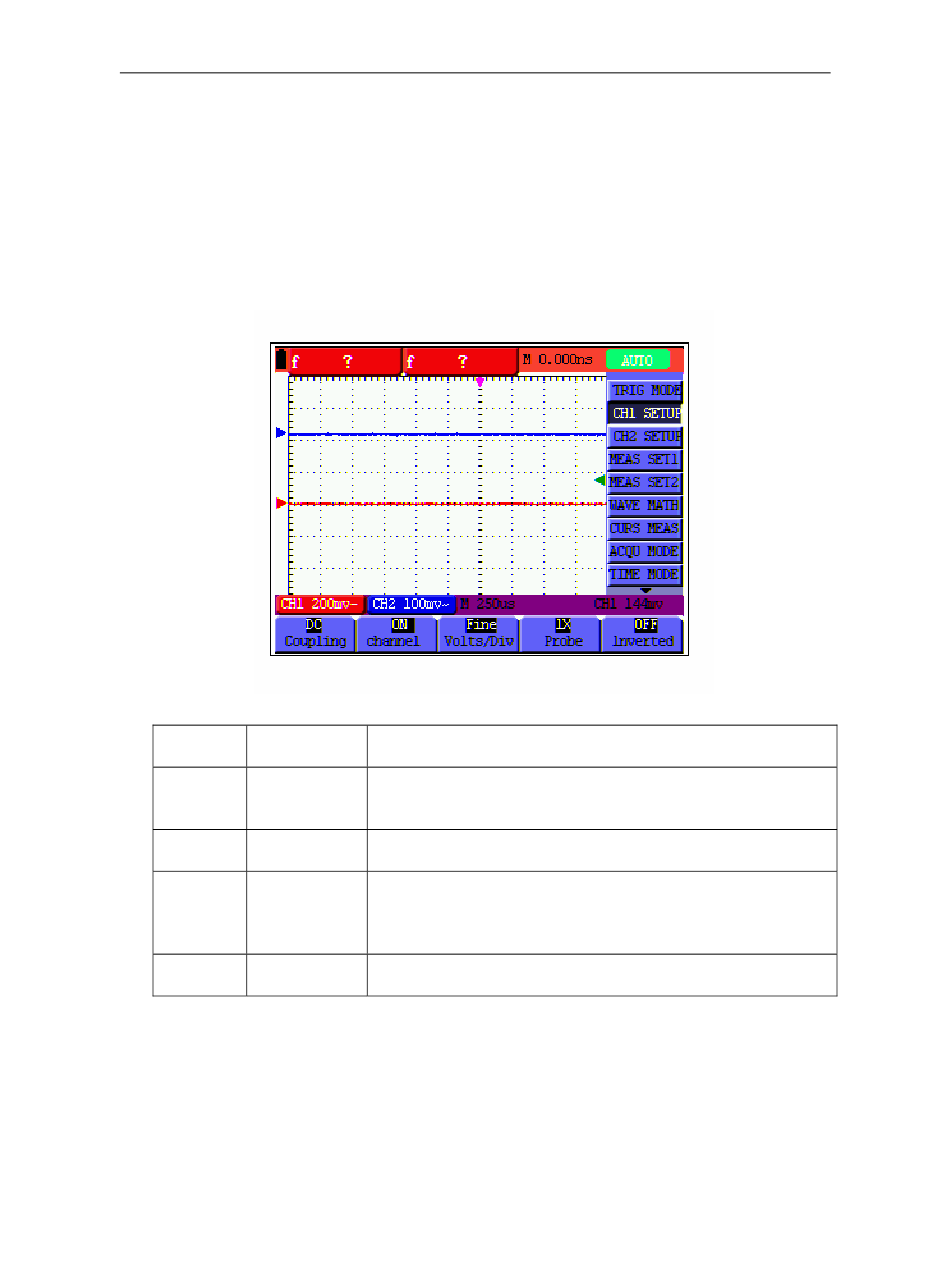

The user can view a screen that looks similar to the following Figure 34.
The following Table describes the Vertical Channel menu:
Function
Setting
menu
AC
Coupling
DC
Close
Channel
Open
1X
10X
Probe
100X
1000X
Close
Invert
Open
Figure 34: Setting the Vertical
The dc component in the input signal is blocked.
The ac and dc components of the input signal are
allowed
Close a channel
Open a channel
Select one setting according to the probe attenuation
factor to ensure a correct vertical scale reading.
Waveform is displayed normally.
Open the Invert function of the Waveform setting.
31
Description
MS400 Version 2.0 – December 2007
