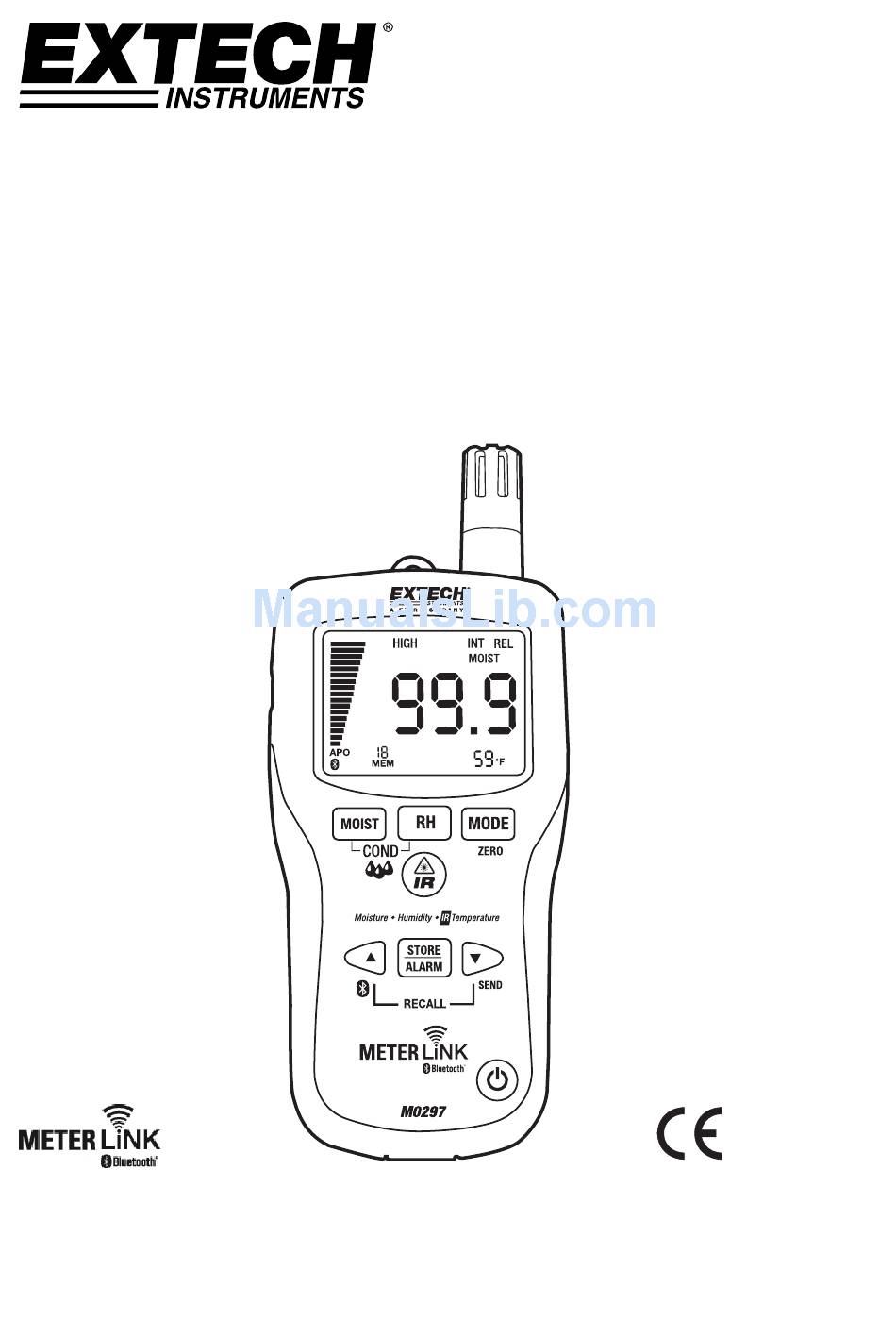

- Page 1 User's Guide Pinless Moisture/Humidity Meter with IR Thermometer + Bluetooth Model MO297...
-
Page 2: Meter Description

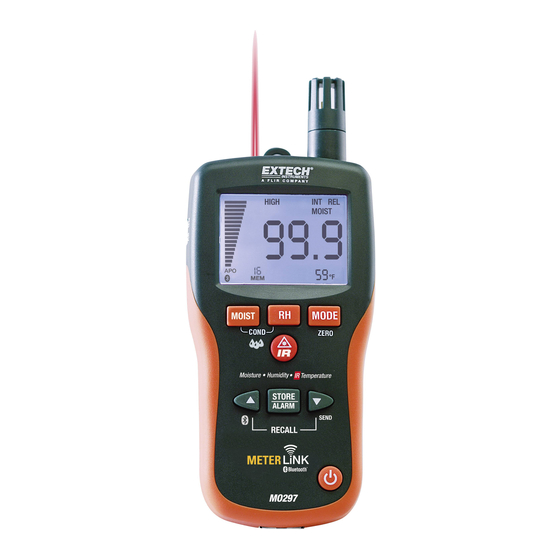

Introduction Congratulations on your purchase of the Extech MO297 with MeterLink Bluetooth capabilities for use with FLIR infrared cameras. This Pinless Moisture Meter incorporates a Patented Built-in IR Thermometer and 20 Point Memory. Monitor moisture in wood and other building materials with no surface damage with the Pinless Moisture sensor (Pin-type Moisture Probe included). -
Page 3: Battery Replacement
/ accumulators at collection points in your community or wherever batteries / accumulators are sold! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle MO297-EU-EN V4.3 4/13... -
Page 4: Operation
Press the MOIST button twice to select Moisture measurement.” MOIST”, and “EXT” (external pin probe) will appear in the display. Press the probe pins into the material and read the % moisture content in the display. MO297-EU-EN V4.3 4/13... - Page 5 WARNING: Do not directly view or direct the laser pointer at an eye. Low power visible lasers do not normally present a hazard, but may present some potential for hazard if viewed directly for extended periods of time. MO297-EU-EN V4.3 4/13...
- Page 6 Press the STORE/ALARM SET button to save the value and to return to the normal mode. If the humidity measurement is lower than the low alarm setting or higher than the high alarm setting, the meter will beep once every second. MO297-EU-EN V4.3 4/13...
-
Page 7: Auto Power Off
The meter will enter a sleep mode after 30 minutes of inactivity. The meter will emit a warning beep 15 seconds before shutting down. To disable the APO feature, press the MODE button when turning the meter ON. The “APO” icon will not appear, indicating it is disabled. MO297-EU-EN V4.3 4/13... - Page 8 Pair the meter to the camera by following the “Pairing Bluetooth Devices” section in the thermal camera manual. Once paired, the data from the MO297 will be continuously displayed and updated on the camera display. Readings stored into memory can be recalled and applied to live thermal images.
- Page 9 In Preview mode real time data or recalled memory data is no longer streamed to the image but it is displayed in a preview box. The data in the box can be applied to the image by pressing (3 seconds) the MO297 ▼ / SEND button or the ADD button in the camera’s preview box.
-
Page 10: Specifications
APO Quiescent Current 50µA maximum Dimensions 165x70x38mm (6.5x2.8x1.5’) Weight 210g (7.4oz) Copyright © 2013 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com MO297-EU-EN V4.3 4/13...
