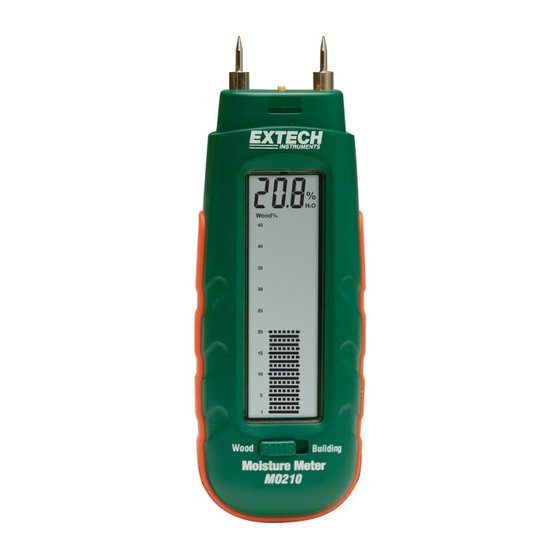

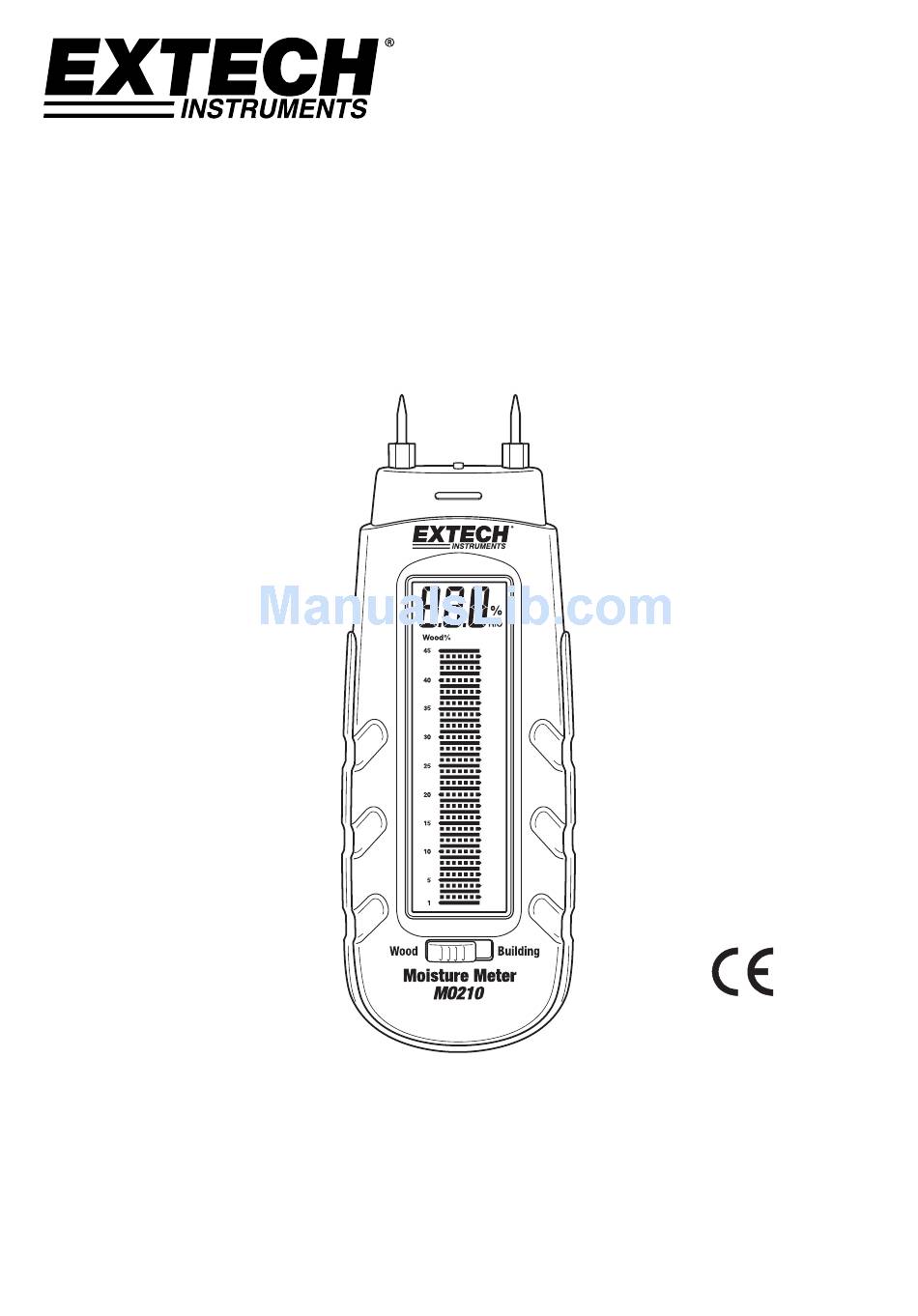

- Page 1 USER GUIDE Moisture Meter Model MO210 contact: www.ponpe.com sale@ponpe.com...
- Page 2 Introduction Thank you for selecting the Extech Model MO210. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of this User Guide, Product Updates, and Customer Support.
- Page 3 Verification Test Points Battery check Test Points Removable cap Material Selector Switch Display Description Graphical Display Numerical Reading Units Low Battery Indicator Solid lines – even number Dashed lines – odd number Building Material Wood Scale Scale MO210-en-GB_V2.4 7/15 contact: www.ponpe.com sale@ponpe.com...
-
Page 4: Operation
3 and 4 at the top of the protective cap labeled ‘B’ (see diagram). With the unit on and the electrode pins touching the ‘B’ test points, the meter should read > 44%±2% on the wood moisture scale. If not, replace the batteries. MO210-en-GB_V2.4 7/15 contact: www.ponpe.com sale@ponpe.com... -
Page 5: Battery Replacement
To replace the two electrode pins: Remove the protective cap Unscrew the electrode pins Install the new pins Replace the protective cap Maintenance Always keep the instrument dry Prevent dirt from accumulating at the electrode pins MO210-en-GB_V2.4 7/15 contact: www.ponpe.com sale@ponpe.com... -
Page 6: Specifications
Operating Temperature 0 to 40 C (32 to 104 Operating Humidity 85% Relative Humidity maximum Dimensions 130 x 40 x 25mm (5.1 x 1.6 x 1.0”) Weight 108.3g. (3.82 oz) Copyright © 2014‐2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com MO210-en-GB_V2.4 7/15 contact: www.ponpe.com sale@ponpe.com...
