Summary of Contents for Extech Instruments MO265

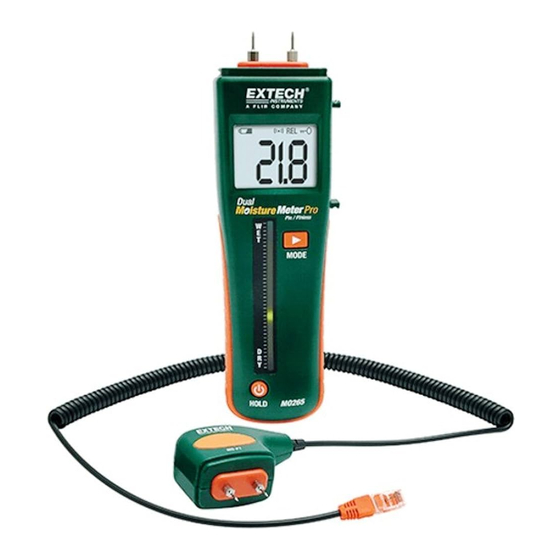

- Page 1 User Guide Dual Moisture Meter Pro Pin / Pinless Moisture Meter with remote probe Model MO265...
- Page 2 Introduction Congratulations on your purchase of the Extech MO265 Moisture Meter. The MO265 detects moisture in wood and other materials such as particle board, carpeting, and ceiling/bathroom tiles using the non-invasive method (pinless); the MO265 also measures moisture in sheet rock and other building materials using the pin method. The remote probe can also be used to make pin measurements.
- Page 3 (for dry), Amber (for moderate moisture), and Red (for very moist). As the reading moves up the bargraph scale from the DRY indicator to the WET indicator, the LED color changes from green, to amber, and then to red. MO265-EU-EN-V1.0-10/10...
- Page 4 Take several readings in several locations on the material for the best representation of the amount of moisture present. Read the measurement values on the LCD digital display and the LED bar graph Replace the protective cap when finished. MO265-EU-EN-V1.0-10/10...
- Page 5 Take several readings in several locations on the material for the best representation of the amount of moisture present. Read the measurement values on the LCD digital display and the LED bar graph Replace the protective cap and disconnect the remote probe when finished. MO265-EU-EN-V1.0-10/10...
- Page 6 The two calibration check points are located in the holes at the top of the protective cap. Insert the electrode pins into the two holes at the top of the protective cap to make contact with the test circuit. The display should read between 17.5 to 18.5 %WME, indicating that the calibration is verified. MO265-EU-EN-V1.0-10/10...
-
Page 7: Meter Setup
OFF Auto Switch OFF active. Switches OFF after 3 minutes Auto Switch OFF active. Switches OFF after 5 minutes Auto Switch OFF active. Switches OFF after 10 minutes Backlight OFF Backlight ON *FACTORY DEFAULT SETTINGS: 0=0, 1=0, 2=0, 3=0 MO265-EU-EN-V1.0-10/10... -
Page 8: Battery Replacement
203 x 58 x 43mm (8 x 2.3 x 1.7”); not including remote probe Weight 204g. (7.2 oz); not including remote probe Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. MO265-EU-EN-V1.0-10/10...
