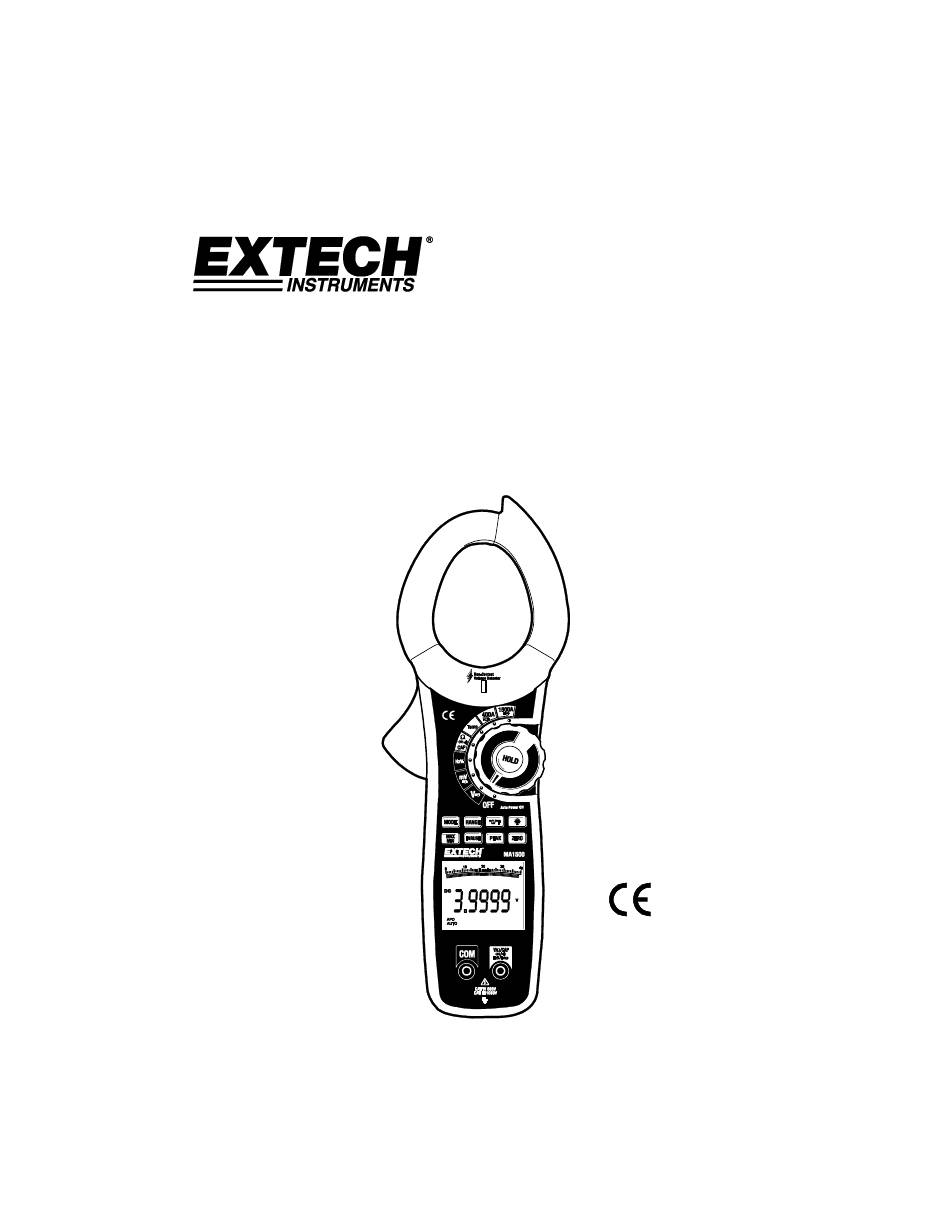

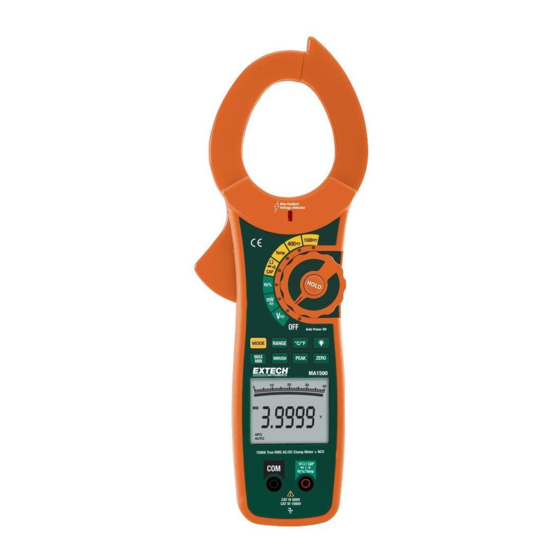

- Page 1 User Manual 1500Amp True RMS AC/DC Clamp Meter Model MA1500 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Introduction Congratulations on your purchase of this MA1500 True RMS Clamp Meter. This meter measures AC Current, DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle and Continuity. The molded case is designed for heavy duty use. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 Maximum Input A AC, 1500A DC/AC A DC 1500A DC/AC V DC, V AC 1000V DC/AC Resistance, Capacitance, Frequency, Diode Test 250V DC/AC Type K Temperature 30V DC, 24V AC MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 4: Meter Description
Duty Ratio F and Fahrenheit and Celsius units (Temperature) n, m, , M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo Continuity test Diode test MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Operation
ZERO button. The display will show approxemately zero. The offset value is now stored and removed from all measurements. Frequency When ACA is selected, the measured frequency can be viewed in the lower display. MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 6: Ac/Dc Voltage Measurements
The diode or junction can be evaluated as follows: If one reading displays a value (typically 0.400V to 01.800V) and the other reading displays OL, the diode is good. If both readings display OL the device is open. MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 7 If both readings are very small or ‘0’, the device is shorted. MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 8: Capacitance Measurements
To freeze the LCD reading, press the HOLD button (located on the function switch knob). While data hold is active, the HOLD icon appears on the LCD. Press the HOLD button again to return to normal operation. MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. -
Page 9: Lcd Backlight
OFF position. Low battery indication When the icon and “-----“appears in the display, the battery should be replaced. Refer to the battery replacement procedure in the maintenance section. MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 10: Maintenance
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 11: Specifications
Pulse width: 100µs - 100ms, Frequency: 10Hz to 100kHz Temp -100.0 to 1000.0C (1.0% reading + 2.5 C) (type-K) -148.0 to 1832.0F (1.0% reading + 4.5F) (probe accuracy not included) MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 12: Over-Range Indication
Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category IV 600V and Category III 1000V, Pollution Degree 2. Approvals MA1500-en-GB_v1.4 10/18 GlobalTestSupply www. .com Find Quality Products Online at:...
