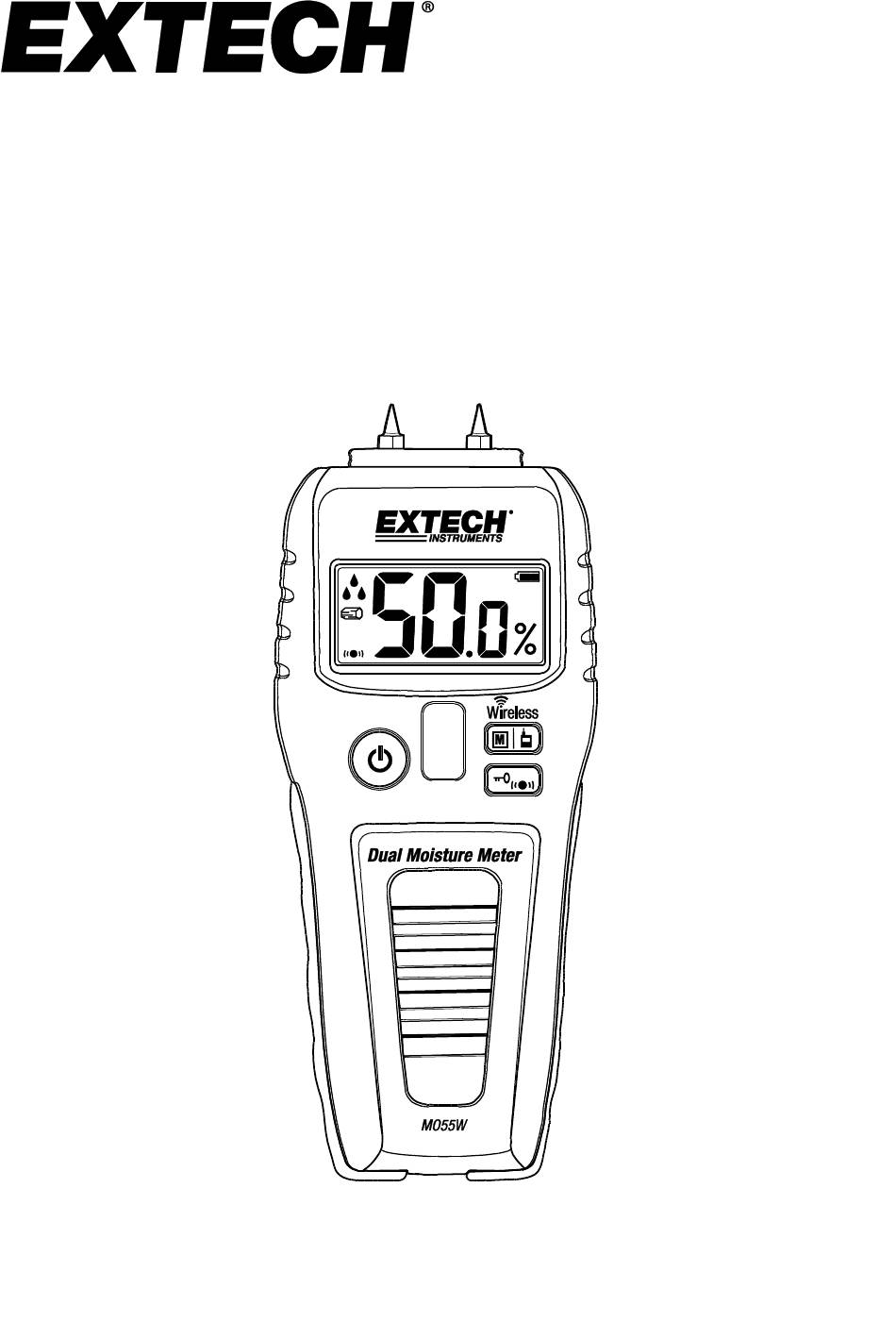

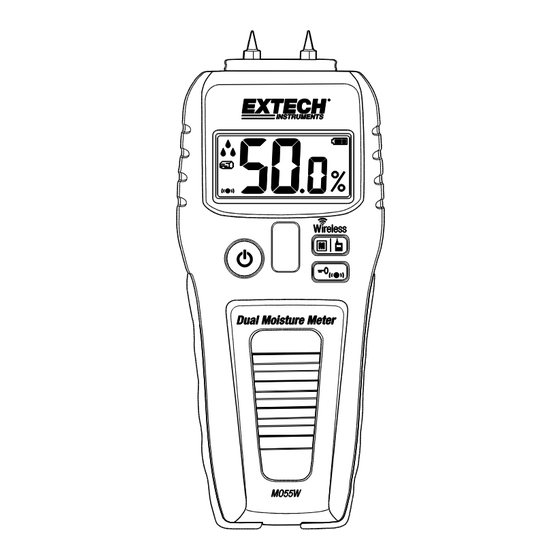

- Page 1 USER MANUAL Model MO55W Wireless Datalogging Dual Moisture Meter Pin and Pinless Moisture Measurements...
- Page 2 The MO55W is compact, easy to operate, and indicates moisture levels in a variety of ways: digitally, audibly, and with ‘moisture droplet’ icon displays (1 drop for low levels, 2 for moderate levels, and 3 drops for high moisture levels).
-
Page 3: Meter Description
Long press to switch the meter ON or OFF Short press to select wood, building materials, Mode/Wireless button pin or pinless (flashing icon) modes Long press for wireless transmission Short press locks reading on the display Display Hold / Beeper button Long press disables/enables the beeper MO55W-en-GB_V1.1 11/18... -
Page 4: Operation
5.0 ~ 11.9 1.5 ~ 16.9 0.1 ~ 16.9 0.1 ~ 16.9 12.0 ~ 15.9 17.0 ~ 19.9 17.0 ~ 29.9 17.0 ~ 29.9 MEDIUM 16.0 ~ 50.0 20.0 ~ 33.0 30.0 ~ 99.9 30.0 ~ 99.9 HIGH MO55W-en-GB_V1.1 11/18... - Page 5 High and Low Alarm Limits (for use with ExView® W-Series wireless application) The MO55W high/low alarm alerts are sent to paired iOS® and Android™ devices using the free ExView® W-Series application.
-
Page 6: Wireless Communication
Wireless Communication Overview We ship the MO55W with a Bluetooth® Wireless Datalogging Module (DAT12) installed. The DAT12 transmits real-time readings, logged readings, and high/low alarm data to paired iOS® or Android™ devices using the free ExView® W-Series application. The DAT12 stores >15k readings. -
Page 7: Maintenance
To replace the pins using a small wrench, carefully loosen and remove the existing pins by turning the nuts (at the base of the pins) counter-clockwise; install the new pins in the same manner. Use care when replacing the pins, as they are sharp - especially when new. MO55W-en-GB_V1.1 11/18... -
Page 8: Specifications
Customer Support Telephone: U.S. (866) 477-3687; International +1 (603) 324-7800 Calibration, Repair, and Returns email: repair@extech.com Technical Support: https://support.flir.com Copyright © 2018 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com MO55W-en-GB_V1.1 11/18...
