Again, press OSC OPTION key and the following appears at the bottom left side of
the screen, shown as the following figure 9:
LEFT/RIGHT – Time
UP/DOWN – CH2 Zero
8.
Press the OSC UP or OSC DOWN key to adjust the zero position of Channel 2 in the
vertical direction and press OSC LEFT or OSC RIGHT key to adjust the horizontal
position.
9.
Press OSC OPTION key once more and the following appears at the bottom left of
the screen, shown as the following figure 10:
LEFT/RIGHT – Time
UP/DOWN – Trig
10.
Press the OSC UP or OSC DOWN key to adjust the trigger position of Channel 2 and
press OSC LIFT or OSC RIGHT key to adjust the horizontal position.
11.
Press the OSC OPTION key again and return back to step 1.

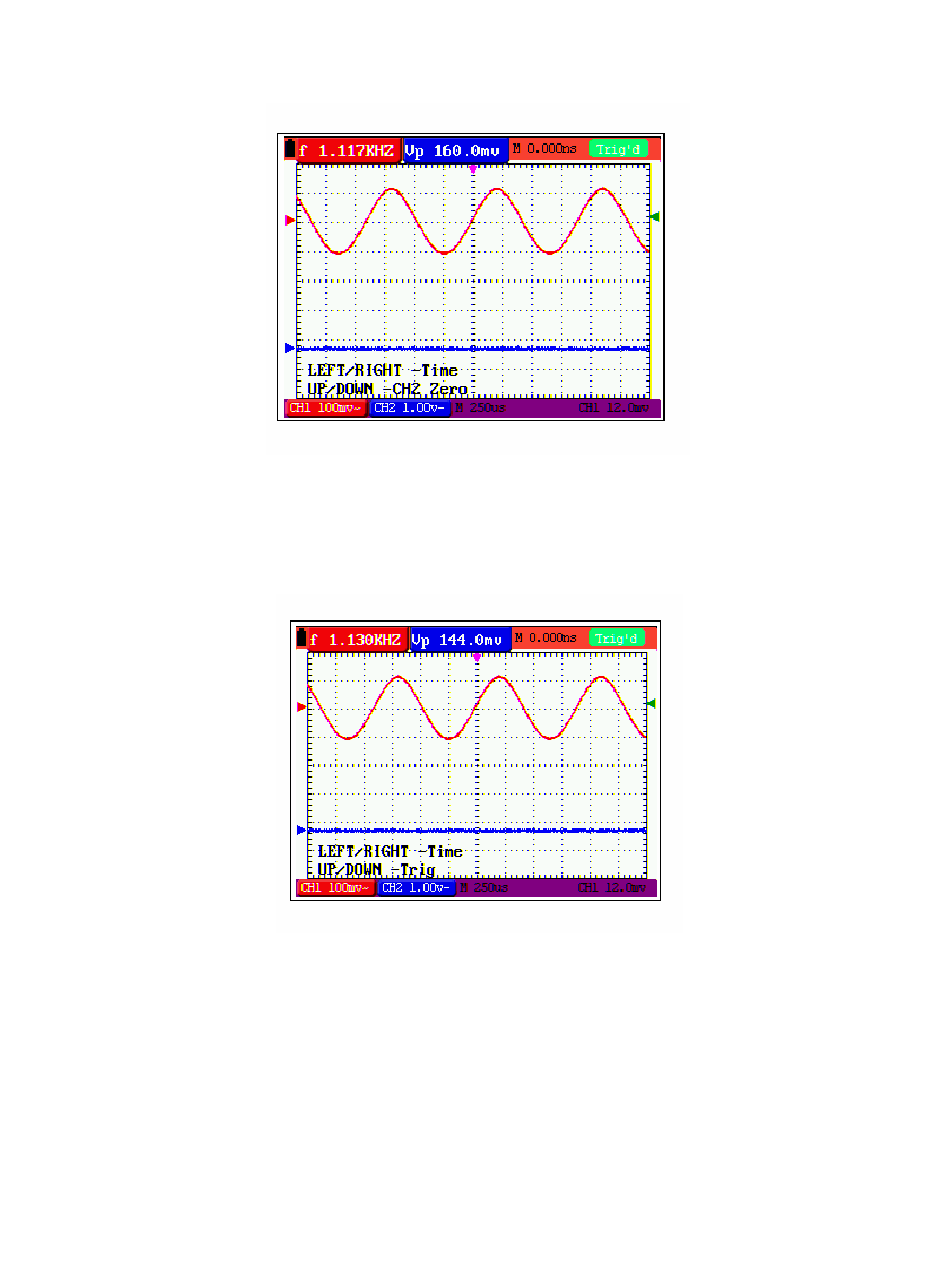

Figure 9: Zero Point Position of Channel 2
Figure 10: Trigger Level Position
