EVAL AD5933-U1
To download the imaginary, real, phase and magnitude data
from the DFT of the response sweep, click Download
Imaginary Data, Download Real Data, Download phase or
Download Magnitude Data. Choose a file name in the current
directory and click Save File (Figure 16)
1: CHOOSE
DIRECTORY
3: SAVE THE FILE

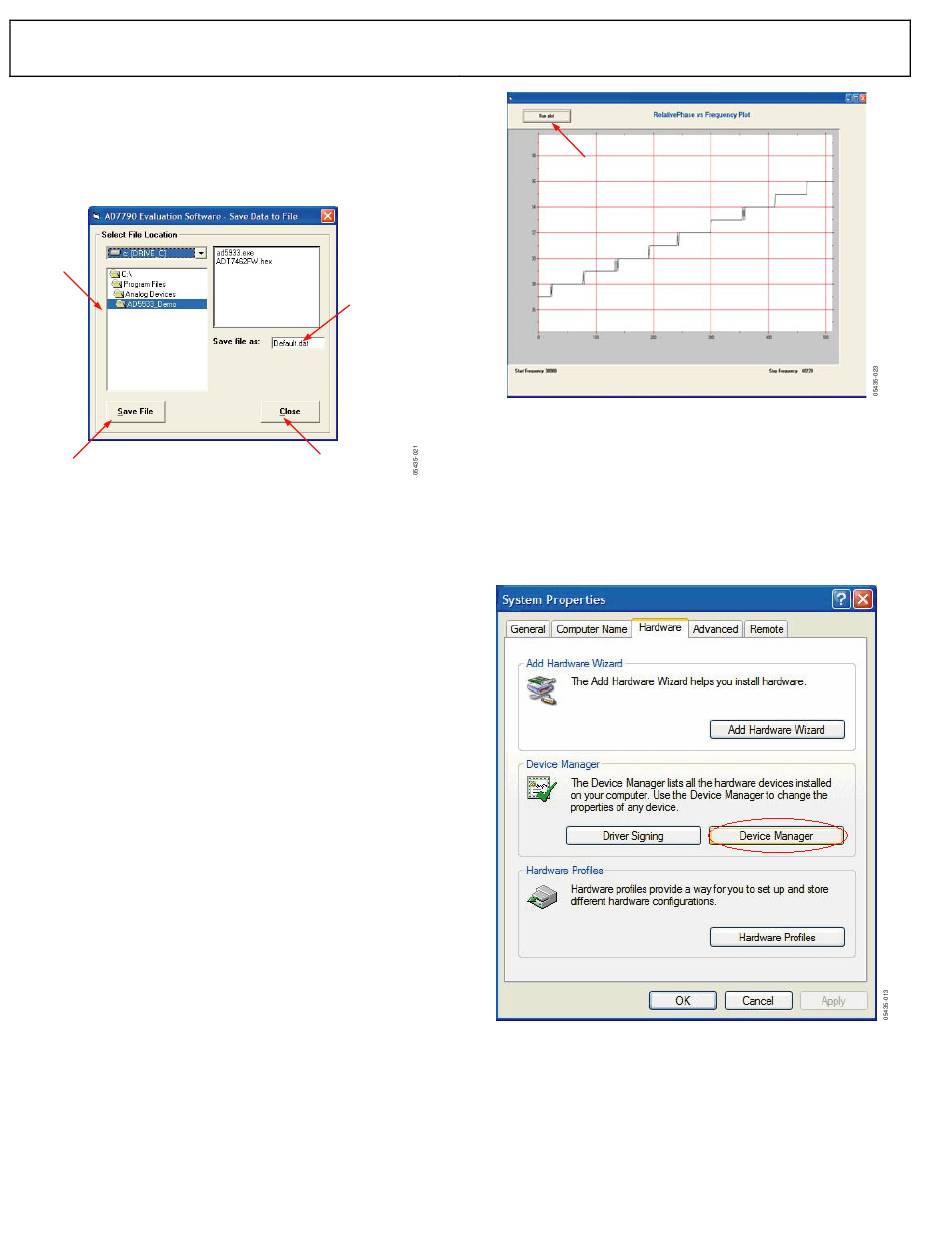

Figure 16.
This saves the sweep data to a data file located in the directory
of you choice. You can access this file content by using Notepad
or Microsoft Excel to plot the data. Each file contains a single
column of data. Each data entry corresponds to each single
sweep point so, if you program 511 point as the value for the
number of increments, the array contains a single column of
data with 511 data points, starting at the start frequency and
ending at stop frequency value, which is determined by
Start frequency + (number of increments × delta frequency)
The impedance profile with frequency appears after the sweep
finishes. This shows how the impedance of the network under
analysis varies across the programmed frequency range. To view
how the relative phase across the network under analysis varies,
click relative phase vs. frequency. The plot in Figure 17
appears. Click Run plot to display the plot.
The relative phase takes into account the phase introduced
through the entire signal path, that is, the phase through the
output amplifiers, transimpedance amplifiers, along with the
phase through the impedance under analysis connected
between VOUT and VIN (Pin 6 and Pin 5 of the AD5933).
2: CHOOSE
FILE NAME
4: CLOSE
PROGRAM FILE
Rev. PrA | Page 10 of 16
Preliminary Technical Data
PRESS THIS BUTTON
TO RUN THE PLOT
Figure 17.

FREQUENTLY ASKED QUESTIONS

Q: How can I confirm that the hardware has been correctly
installed in my computer?
A: Right-click My Computer and left-click Properties. On the
Hardware tab, click Device Manager.
Figure 18.
Scroll to Universal Serial Bus Controllers and expand this
directory root (Figure 19). When the AD5933 hardware is
correctly installed, each time you plug the USB cable into the
evaluation board, the items under the Universal Serial Bus
Controllers root are refreshed. This indicates that the AD5933
is present each time the evaluation board USB cable is plugged
in correctly. It is subsequently refreshed when the USB cable is
