Analog Devices EVAL AD5933-U1 Preliminary Technical Data page 13

Preliminary Technical Data
+3.3V
5V USB
J7
USB
1
VCC
2
D–
3
D+
4
GND
5
SH
6
SH
+3.3V
C5 C6 C7
0.1µF 0.1µF 0.1µF
+3.3V
R13
R12
100kΩ
100kΩ
C18
C4 C9
0.1µF
10µF
0.1µF
T1
T2
C8 C19 C20 C21
0.1µF 0.1µF 0.1µF 0.1µF
R16
10kΩ
+3.3V
R11
0Ω
+3.3V
C23
2.2µF
42
RESET
44
WAKEUP
54
CLKOUT
9
D–
8
D+
U3
CY7C58013–CSP
33
PA0/INT0
34
PA1/INT1
35
PA2/*SLOE
36
PA3/*WU2
37
PA4/FIFOADR0
38
PA5/FIFOADR1
CTL0/*FLAGA
39
PA6/*PKTEND
CTL1/*FLAGB
40
PA7/*FLO/SLCS
CTL2/*FLAGC
1
RDY0/*SLRD
2
RDY1/*SLWR
13
IFCLK
14
RSVD

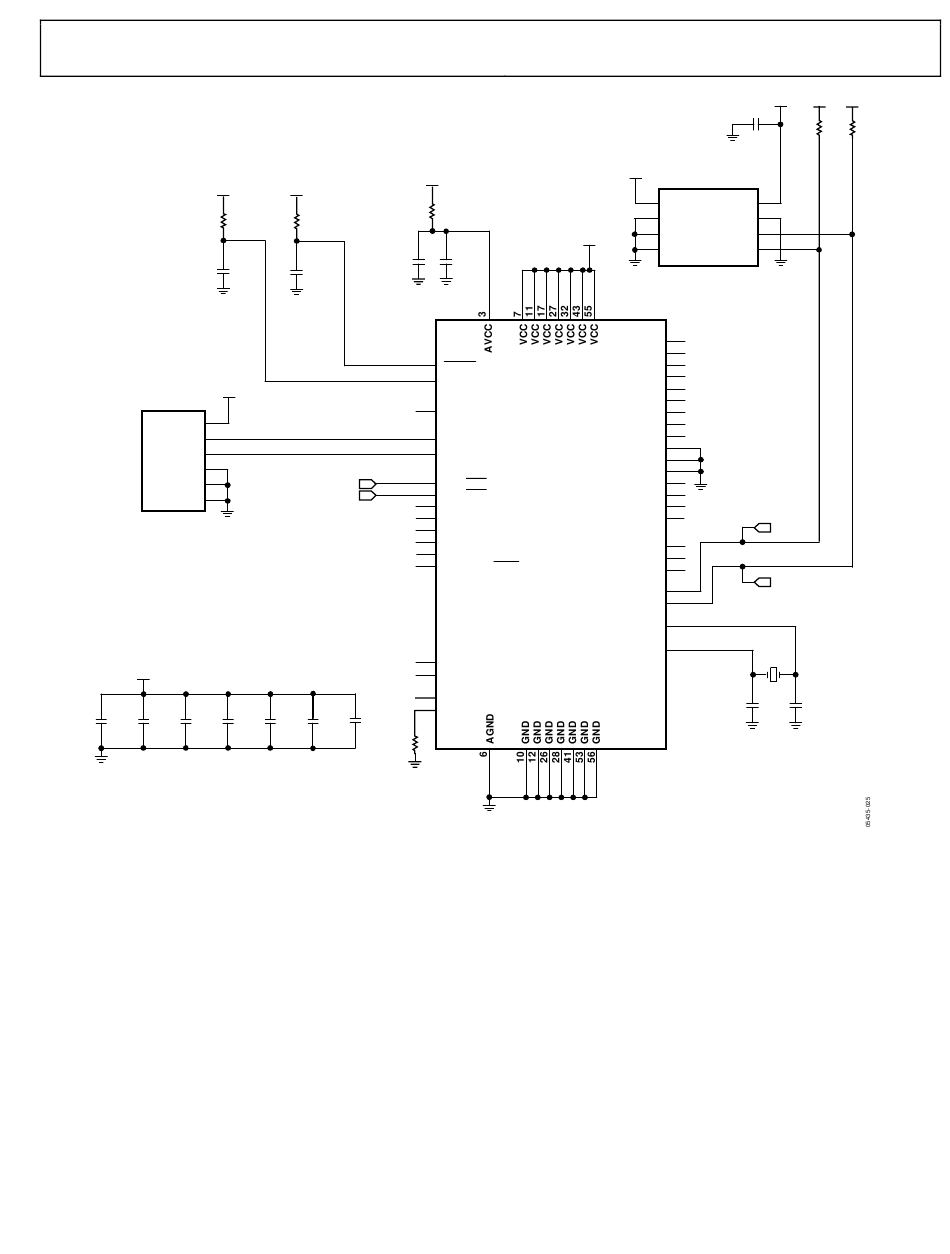

Figure 25.
Rev. PrA | Page 13 of 16
EVAL AD5933-U1
+3.3V
2.2kΩ
C22
0.1µF
U2
+3.3V
24LC64
1 8
A0 VCC
2
7
A1 WP
3 6
A2 SCL
4 5
VSS SDA
18
PB0/FD0
19
PB1/FD1
20
PB2/FD2
21
PB3/FD3

22
PB4/FD4
23
PB5/FD5
24
PB6/FD6
25
PB7/FD7
45
PB8/FD8
46
PB9/FD9
47
PB10/FD10
48
PB11/FD11
49
PB12/FD12

50
PB13/FD13
51
PB14/FD14
52
PB7/FD15
SDA
29
30
31
SCL
16
SDA
15
SCL
4
XTALOUT
5
Y1
XTALIN
24MHz
C17
0.1µF
+3.3V +3.3V
R14 R15
2.2kΩ
C10
2.2µF
