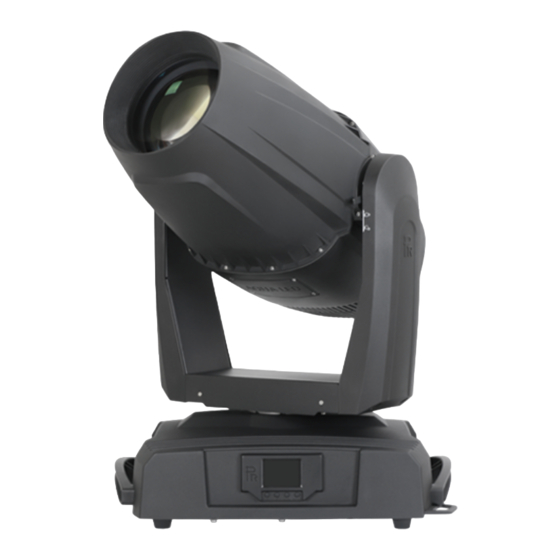

AQUA LED 1500 SPOT
PR-8178A
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA LED 1500 SPOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting AQUA LED 1500 SPOT

Summary of Contents for PR Lighting AQUA LED 1500 SPOT

  • Page 1 AQUA LED 1500 SPOT PR-8178A This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    Any future technical changes are not subject to further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Warning User Electrical Protective Flames High Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.

  • Page 4: Instructions

    electrical parts’ life will be shortened . There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...

  • Page 5: Lubrication

    To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens ● whether it runs or not Do not use alcohol or other organic solvent to clean the housing to avoid damage. ● Do not use any solvent with chemical elements to clean color filters or hot mirror. ●...

  • Page 6: Power Connections

    WARMING Please run safety cord through 2 safety holes for safety Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

  • Page 7: Dmx Terminator

    projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure.

  • Page 8: Setup And Configuration

    Lock the tilt and unfasten 4 fast fit screws of the chamber cover. Open the cover and you’ll see the structures as the figures above. For the rotating gobos: remove the rotator by hand as the figure hereinafter in the sequences of1→2 ; remove the gobo after the tightening spring for the gobo is taken out.

  • Page 9: Dmx Wireless Control

    Press button UP and DOWN, you can set the address; Press button ENTER to confirm; after powered on next time, the default will be last value saved Press button FUNC, it will return to the upper menu DMX WIRELESS CONTROL ●...

  • Page 10: Operation Menu

    6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-481 DMX Address Default IP Address 2.X.X.X /10.X.X.X IP Address Custom IP Address X.X.X.X Address SubNet Mask X.X.X.X ArtNet 0-255 ArtNet Universe Total Reset Really Reset? Confirm/ Cancel Pan&Tilt Reset Really Reset? Confirm/ Cancel...
  • Page 11 Fan Board XX℃/F LED XX℃/F LED Sensor XX℃/F System= XXX Display Board Boot =XXX System= XXX Pan Board Boot =XXX System= XXX Tilt Board Boot =XXX System= XXX Software Version Driver Board 1 Boot =XXX System= XXX Driver Board 2 Boot =XXX System= XXX Driver Board 3...

  • Page 12: Dmx Protocol

    7. DMX PROTOCOL Short Standard Extended Decimal Function Description Decimal High mode mode mode Strobe Close Pulse strobe speed from slow to fast Strobe speed slow to fast Dimmer Close Dimmer from dark to light (0-100%) Dimmer Fine Fine dimmer CYM Macro The following functions can be used after CMY,CTO, and Color Wheels1 and Color Wheel2...
  • Page 13 Colour Macro 29 Colour Macro 30 Colour Macro 31 Colour Macro 32 Colour Macro 33 Colour Macro 34 Colour Macro 35 Colour Macro 36 Colour Macro 37 Colour Macro 38 Colour Macro39 Colour Macro 40 Colour Macro 41 Colour Macro 42 Colour Macro 43 Colour Macro 44 Colour Macro 45...
  • Page 14 Colour Macro 73 Colour Macro 74 Colour Macro 75 Colour Macro 76 Colour Macro 77 Colour Macro 78 Colour Macro 79 Colour Macro 80 Colour Macro 81 Colour Macro 82 Colour Macro 83 Colour Macro 84 Colour Macro 85 Colour Macro 86 Colour Macro 87 Colour Macro 88 Colour Macro 89...
  • Page 15 positioning White White/Color1(Bleu) Color1Blue) Color1(Blue)/Color 2(Green) Color 2(Green) Color 2(Green)/Color 3(Yellow) Color 3(Yellow) Color 3(Yellow)/ Color 4(Pink) Color 4(Pink) Color 4(Pink) /Color 5(Red) Color 5(Red) Color 5（Red）/Color 6（Purple） Color 6(Purple) Color6 (Purple)/ White White Clockwise rainbow effect rotation speed from slow to fast Anti-clockwise rainbow effect rotation speed from slow to fast Color Wheel Fine Color Continual positioning in 16 Bit precision...
  • Page 16 Gobo1 shake from slow to fast Gobo2 shake from slow to fast Gobo3 shake from slow to fast Gobo4 shake from slow to fast Gobo5 shake from slow to fast Gobo6 shake from slow to fast Rotating gobo wheel 1 rotation Indexing 0-360°...
  • Page 17 Reverse rotation speed from slow to fast Effect Wheel No effect wheel Effect wheel in Effect Wheel Rotation Forwards rotation from slow to fast Reverse rotation from slow to fast Frost Light Frost from 0% to 100% Focus Linearly focusing Focus Fine Focus in 16 precision Zoom...

  • Page 18: Signs On The Display

    Total reset Reserved Reserved Note: 1. Fan errors can cause LED lamps to be shut off; 2. "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means both Pan and Tilt will arrive at designated point at the same time. It's advised Time Mode be used if the projector runs circles or in oblique lines.

  • Page 19: Technical Data

    Timeout Check if wiring, positioning parts and motors are normal Prism Timeout Check if wiring, positioning parts and motors are normal Prism rotation Timeout Check if wiring, positioning parts and motors are normal Focus Zoom Timeout Check if wiring, positioning parts and motors are normal Effect wheel Timeout Check if wiring, positioning parts and motors are normal...
  • Page 20 scrolling with varied speeds Rotating gob wheel1: Gobo external size: 37.5mm Image size of rotating gobo isΦ24mm Rotating gob wheel2: Gobo external size: 37.5mm Image size of rotating gobo isΦ24mm PRISM 1pc 4 facet prism, bi-directional rotation with varied speeds and indexing function FROST Linear frost (0-100%) EFFECT WHEEL...
  • Page 21 BEAM ANGLE Linear zoom 6° ～ 56° with 16 bit precision CONTROL International standard DMX512 signal , 5 pin interface RDM control protocol ArtNet protocol 27channels in short mode, 31channels in standard mode,38channel in extended mode Master/Slave mode Stand-alone mode Self test mode OTHER FUNCTIONS Adjustable Pan &...

  • Page 22: Circuit Diagram And Pcb Connections

    56°Lux 6°Lux DISTANCE (m) 6°DIAMETER(m) 0 56°DIAMETER(m) 11. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM...

  • Page 24: Pcb Connections

    PCB CONNECTIONS ● PR-8178A master board Name 485 signal Reserved 512 signal Wireless interface Power input Reserved Ethernet board interface PR-8178A LED 4-channel driver board Name LED driver output LED driver output PWM dimmer input 48V power input + 48V power input - PR-8178A LED 5-channel driver board Name LED driver output...
  • Page 25 PR-8178A Pan and Tilt board Name Pan & Tilt encoders Pan & Tilt magnet sensors 485 signal Reserved 24V input Pan & tilt motors PR-8168 power adapting board Name 485 signal 6-11 Reserved +24V power input -24V power input 14-19 24V power output PR-8168 8-channel fan board Name...
  • Page 26 PR-8168 7-channel driver board （Zoom and Focus ） Name Focus motor Zoom motor Prism in/out motor Prism rotation motor Frost motor Reserved Magnet sensor for focus Magnet sensor for zoom Prism in/out &Prism rotation magnet sensors Reserved 13-14 Power input 485 signal input 485 signal output 17-20...

  • Page 27: Component Order Codes

    PR-81678A 4-channel board （Gobo wheel ） Name Gobo wheel rotation motor Effect wheel in/out motor Gobo rotation motor Effect wheel rotation motor Gobo wheel rotation magnet sensor Gobo rotation magnet sensor Power input 9-10 485 signal input 485 signal output 13-14 Reserved PR-8178A 2-channel board （Gobo wheel 2）...
  • Page 28 TILT BELT HTD-459-3M-12 030040213B FOCUS MOTOR ZOOM MOTOR 030040154A 030040132A PRISM IN/OUT MOTOR 030040203 PRISM ROTATION MOTOR 030040220A FROST MOTOR ROTATING GOBO WHEEL 1# MOTOR 030040132A GOBO ROTATION 1# MOTOR 030040060 030040132A ROTATING GOBO WHEEL 2# MOTOR 030040060 GOBO ROTATION 2# MOTOR 030040244 IRIS MOTOR EFFECT WHEEL IN/OUT MOTOR...
  • Page 30 Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020923...
