DESIGN 150
PR-11 50
This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep this
manual in a safe place for future reference.
PR LIGHTING LTD
571 Yingbin Road Dashi Panyu Guangzhou 511430, China
http://www.pr-lighting.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PR Lighting DESIGN 150
Summary of Contents for PR Lighting DESIGN 150
- Page 1 DESIGN 150 PR-11 50 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD 571 Yingbin Road Dashi Panyu Guangzhou 511430, China http://www.pr-lighting.com...
-
Page 2: Table Of Contents

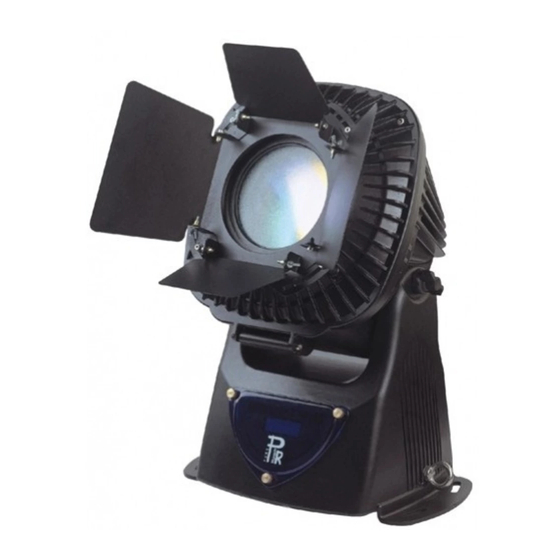

The Design 150 features 3 kinds of colour filters for CYM colour mixing and 2 blads for shutter/open. It can be setup easily with the touch-switches and a digital display screen. -
Page 3: Safe Usage Of The Projector
Always disconnect from the mains, when the device is not in use or before cleaning it or before attempting any maintenance work. NOTE: PLEASE REMOVE THE SPONGE EFFECT LOCKING CYLINDER INSIDE THE PROJECTOR BEFORE YOUR FIRST OPERATION! (How to open the access cover please refer to “fitting the lamp” section) 3/12 Design 150 manual.doc... -
Page 4: Installing The Projector
Always ensure that the structure to which you are attaching the projector is secure and is able to support a weight of 17.6Kg for each Design 150. For safety the projector should have a secondary fixing with a safety chain through the 2 secondary safety yokes on the both sides of the unit. -
Page 5: Power Connections
DMX terminator as shown in the figure below Design 150 uses 3-pin XLR plug / socket. If your controller uses 5-pin XLR plug / socket, you should convert 5-pin plug / socket into 3-pin socket / plug as shown below. -
Page 6: Dmx Terminator
PROJECTOR DMX START ADDRESS Each Design 150 must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. The Design 150 has 6 channels, so set the No.1 projector’s address 001, No.2 projector’s address 007, No.3 projector’s... -
Page 7: Setup Options
(digit display brightness). Press ENTER button to enter value setting (sub-option), press UP or DOWN button to get (100%), then press ENTER button to save and press FUNC button to return to . So you successfully set the digit display brightness 100%. SETUP OPTIONS TABLE 7/12 Design 150 manual.doc... -
Page 8: Stand-Alone Mode
The beam appears dim -Dust or grease contamination Check the optics are clean. on the optics. -The lamp is at the end of its Replace with a new lamp of the life specified type and rating. 8/12 Design 150 manual.doc... -
Page 9: Technical Data
2 Blades for shutter HEAD MOVEMENT: 90º (manual adjustment) BEAM ANGLE: 21º CONTROL: DMX512: 6 Channels Stand-Alone Automatic mode Lamp and Unit time indication MOTORS: 8 Stepper motors HOUSING: Cast aluminium with paint finish (IP65) WEIGHT: 17.6Kg. 9/12 Design 150 manual.doc... -
Page 10: Light Output
LIGHT OUTPUT ELECTRICAL DIAGRAM 10/12 Design 150 manual.doc... -
Page 11: Component Order Codes
(MAGENTA AND SHUTTER) 030040077 MOTOR NOTE: You may order all parts of the Design 150 besides the table listed above. When ordering please state the exact name and part no.. Repairs must be carried out by a qualified technician. 11/12... - Page 12 PR Lighting Ltd 571 Yingbin Road Dashi Panyu Guangzhou 511430, China TEL: +86 (20) 8478 1888 FAX: +86 (20) 8478 6023 P/N: 321010070 Last Revision: 24:06:2003 12/12 Design 150 manual.doc...
